Part Number # LRD04L6
SKU # 2446788

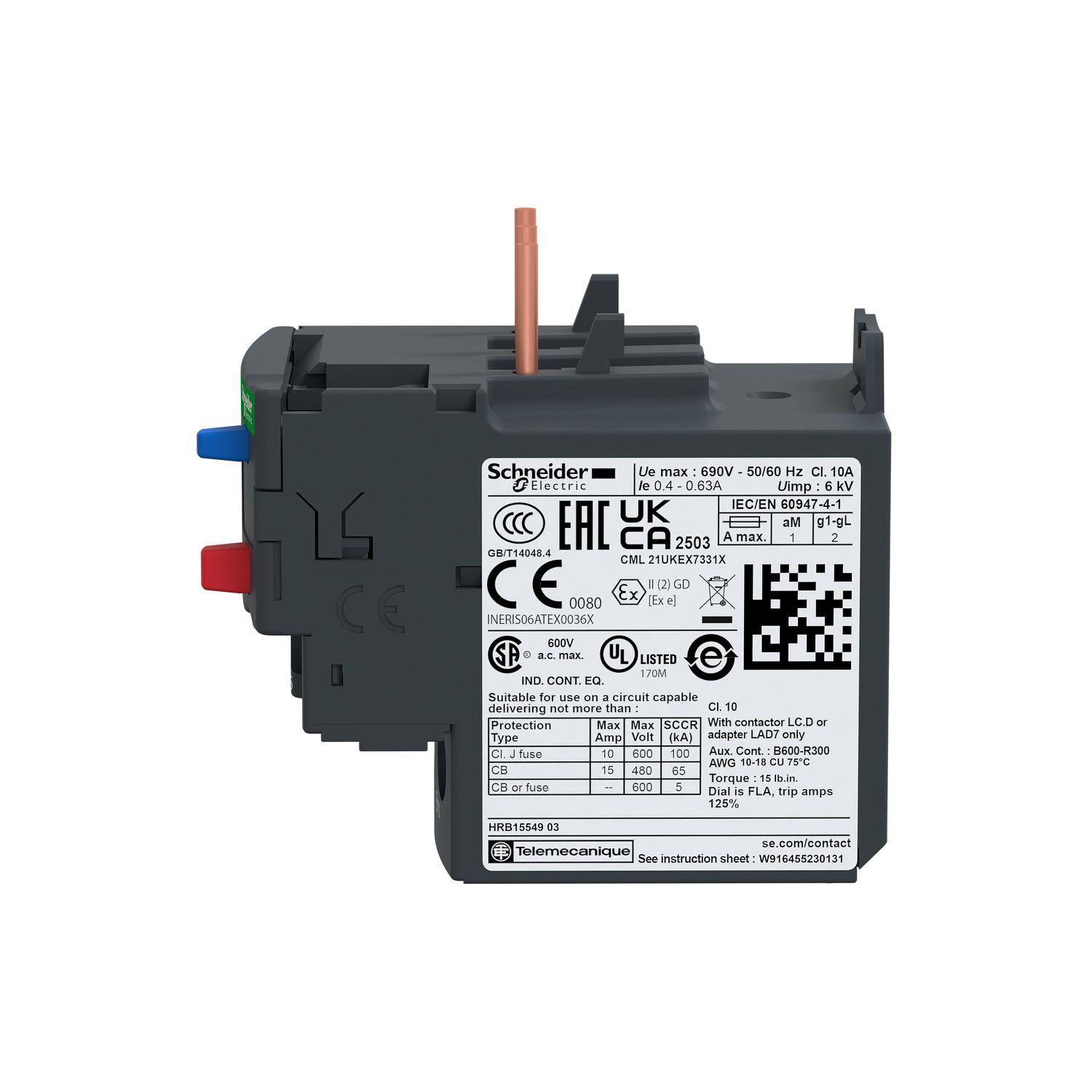

Image provided may only be a representation of
final product and may include optional equipment
LRD04L6
Schneider Electric LRD04L6
Part Number # LRD04L6
SKU # 2446788
$101.49 / Each
Schneider Electric LRD04L6 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LRD04L6 |
| SKU #: | 2446788 |
| Amperage Rating: | 0.4 to 0.63 A |
| Coil Voltage: | 690 V AC, 690 VAC |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 1.77 in W x 2.99 in W x 2.6 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 0 to 400 Hz |
| Number of Poles: | 3 |
| Series: | TeSys LRD |
| Temperature Rating (Degrees F): | -4 to 140 deg F |
| Terminal Type: | Ring Lug/Screw Clamp |
| Type: | Differential Thermal |
| Country of origin: | SG |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122330 |
| UPC: | 00785901926061 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$101.49 / Each
Quantity:
Schneider Electric LRD04L6
Brand: Schneider Electric
Part Number: LRD04L6
Schneider Electric,Class 20 Bimetal OLR .4 - .63A,0.4...0.63 A,TeSys,class 20 conforming to IEC 60947-4-1,differential thermal overload relay
Additional Description: SQD -LRD04L6 (N) TeSysCl20BiMet OLR600VAC.40-.63phase sen NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TeSys Deca thermal overload relays - 0.4...0.63 A - class 20
LRD04L6 Application
Standard Motor Protection, Line Protection, Motor Overload, Stalling and Loss of Phase ApplicationsLRD04L6 Item Features
- Manual and automatic reset
- Sealable flap
- Pre-wiring kit
- Terminal block for separate mounting
- Remote electrical reset
- Can be combined with TeSys D contactors in a 45 mm wide space up to 38 A, 55 mm from 40 A to 65A
- Connectors spring terminal, screw clamp, EverLink terminal block
- Class 10 and class 20
- Red pushbutton stop and blue pushbutton reset
- LC1D32/LC1D18/LC1D09/LC1D12/LC1D38/LC1D25 contactor
- https://www.youtube.com/embed/Zq42AkzAJXw
LRD04L6 Standards
ATEX Certified|UL Listed|EAC Certified|ABS Certified|CSA Certified|IEC 60947-5-1|CSA C22.2 14|IEC 60947-4-1|EN 60947-4-1|UL File No. 508EN 60947-5-1|ATEX D 94/9/CE|IEC 60529|RoHS Compliant|REACH Compliant|WEEE Certified|PROP65: Cancer - www.P65Warnings.ca.govSKU #2446788Part Number #LRD04L6UNSPSC39122330UPC00785901926061
