LC1D25EHE

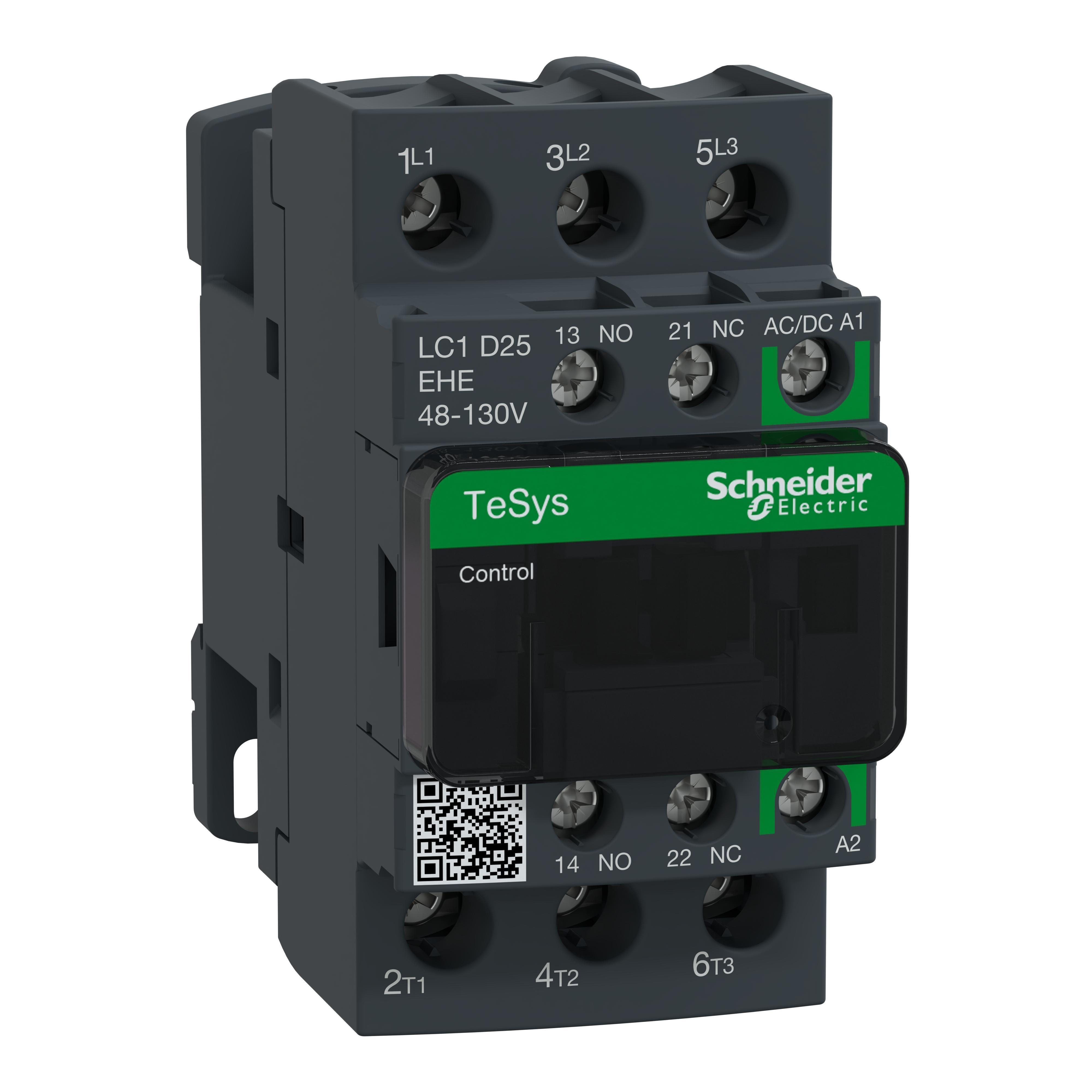

Schneider Electric LC1D25EHE
Part Number # LC1D25EHE
SKU # 2446923
$215.89 / Each
Schneider Electric LC1D25EHE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D25EHE |
| SKU #: | 2446923 |
| Coil Power Rating: | 115 VAC,230/240 VAC,200/208 VAC,230/240 VAC,460/480 VAC,575/600 VAC |
| Coil Voltage: | 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10 A |
| Dimensions: | 3.35 in H x 1.77 in W x 3.62 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | LC1D Series |
| Size: | 3.35 in H x 1.77 in W x 3.62 in D |
| Terminal Type: | Screw Clamp |
| Type: | Contactor |
| Wattage: | 3.2 W |
| Color: | Gray/Green |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Mounting type: | Front/Plate Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606480987731 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$215.89 / Each
Quantity:
- Schneider Electric LC1D25EHE, Contactor, LC1D Series, 48 to 130 VAC/VDC Coil, 25 to 40 A Maximum Load Current, 115 VAC,230/240 VAC,200/208 VAC,230/240 VAC,460/480 VAC,575/600 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3.2 W Wattage, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, 10 A Contact, Power Factor: 5.5 kW 220 to 230 V AC 50 Hz AC-3 ,11 kW 380 to 400 V AC 50 Hz AC-3 ,11 kW 415 V AC 50 Hz AC-3 ,11 kW 440 V AC 50 Hz AC-3 ,15 kW 500 V AC 50 Hz AC-3 ,15 kW 660 to 690 V AC 50 Hz AC-3 ,5.5 kW 220 to 230 V AC 50 Hz AC-3e ,11 kW 380 to 400 V AC 50 Hz AC-3e ,11 kW 415 V AC 50 Hz AC-3e ,11 kW 440 V AC 50 Hz AC-3e ,15 kW 500 V AC 50 Hz AC-3e ,15 kW 660 to 690 V AC 50 Hz AC-3e , Screw clamp Connection, 3.35 in H x 1.77 in W x 3.62 in D Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles Operating Cycles, -40 to 140 deg F Operating, Front/Plate Rail Mounting, Gray/Green, 3.35 in H x 1.77 in W x 3.62 in D Dimensions
LC1D25EHE Application
Motor control,Resistive loadLC1D25EHE Includes
A 48-130V AC/DC low consumption electronic coil and 1NOLC1D25EHE Item Features
- The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world
- They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts
- Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps
- Available at 100 kA on systems with circuit breakers, up to 480 volts and greater than 32 amps
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
LC1D25EHE Standards
CCC|CSA|EAC|UL Listed|Certified|KCDNV|-GL|LROS (Lloyds register of shipping)|EN/IEC 60947-4-1EN/IEC 60947-5-1UL|Certified|60947-4-1CSA|C22.2 No 60947-4-1LC1D25EHE Warranty
18 monthsSKU #2446923Part Number #LC1D25EHEUNSPSC39121529UPC03606480987731
