Part Number # V7-1B17D8-122
SKU # 2447201
Image Disclaimers Message
V7-1B17D8-122

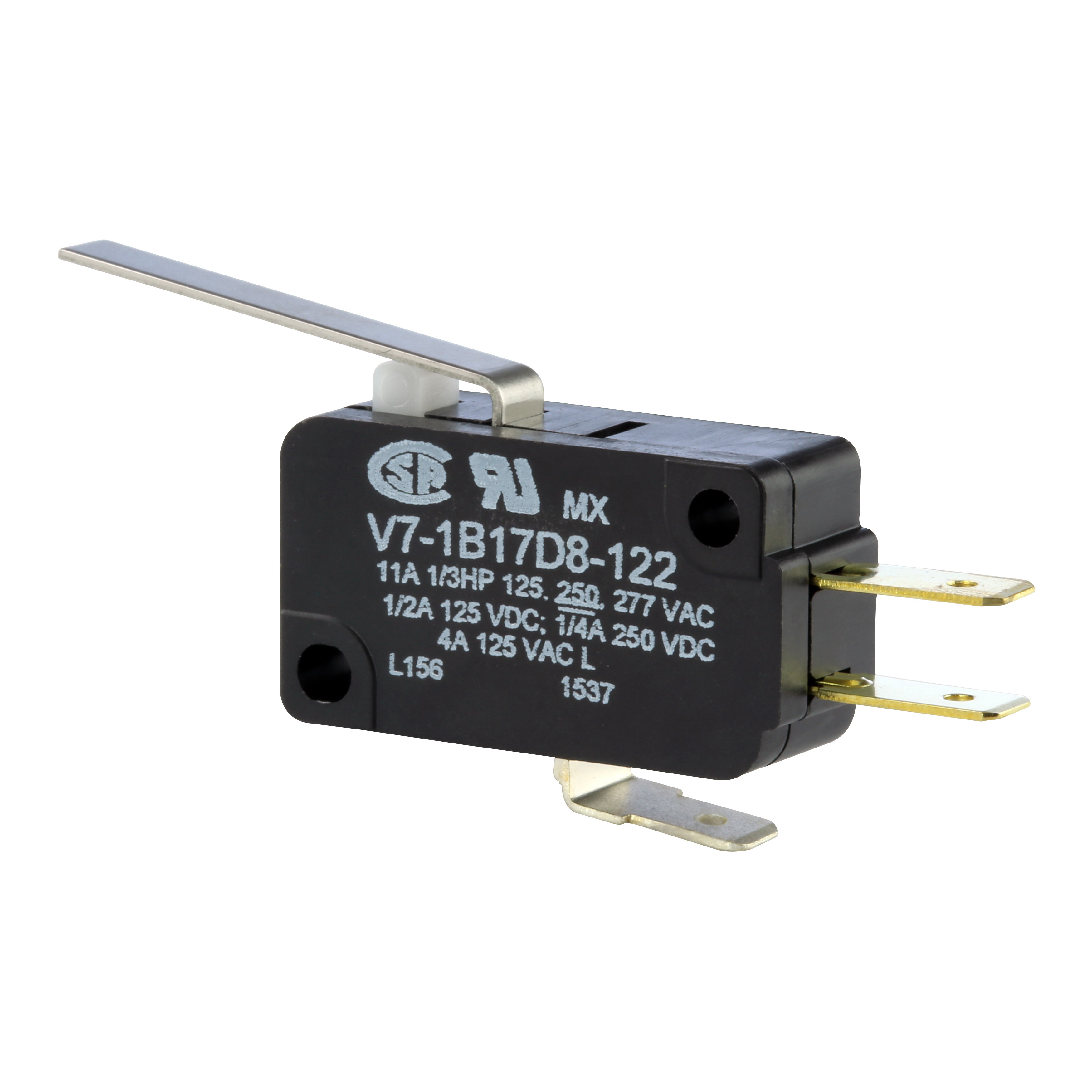

Honeywell V7-1B17D8-122
Part Number # V7-1B17D8-122
SKU # 2447201
$838.00 / 200Each
Honeywell V7-1B17D8-122 Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | V7-1B17D8-122 |
| SKU #: | 2447201 |
| Action: | Snap |
| Actuator: | Lever |
| Amperage Rating: | 11 A |
| Contact Configuration: | SPDT |
| Contact Rating: | 11 A at 277 V AC, 11 A at 277 VAC |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 82 deg C |
| Series: | V7 |
| Size: | 1.14 in L x 0.4 in W x 0.63 in H |
| Type: | Miniature Premium |
| Connection type: | Quick-Connect |
| Country of origin: | US |
| Material: | Polycyclohexylenedimethylene Terephthalate |
| Mounting type: | Panel |
| Manufacturer Name: | Honeywell |
| UNSPSC: | 39122209 |
| UPC: | 00078454993158 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$838.00 / 200Each
Quantity:
- Honeywell MICRO SWITCH Basic Switch, Miniature Premium, Series: V7, 277 VAC, 11 A, 50/60 Hz, SPDT, 11 A at 277 V AC Contact, 1 Pole, Snap, Lever, Quick-Connect, Panel Mount, 1.14 in L x 0.4 in W x 0.63 in H, 10000000 Cycles Operating Cycles, -40 to 82 deg C Operating, Polycyclohexylenedimethylene Terephthalate
V7-1B17D8-122 Application
For appliances, vending machines, timing devices, office equipment, computer/business equipment, test instruments, medical/dental equipment, communications equipment, HVAC equipment, manually operated devices, valves, gaming equipment and pressure switchesV7-1B17D8-122 Item Features
- 1.63 in actuator length
- 0.42 N maximum operating force
- 0.03 N minimum release force
- 0.236 in maximum pretravel
- 0.118 in minimum over travel
- 0.053 in maximum differential travel
- 0.603 in +/- 0.08 in operating position
- 0.88 in mounting centers
- 5.0 in-lb tightening torque
- PCT polyester thermoplastic housing with silver contact material
- Best suited for higher cost-of-failure applications
- Designed for 100K operations at a full load or 10M for mechanical life
- World wide package size acceptance
- Upto 10 million mechanical cycles
V7-1B17D8-122 Standards
CE Marked|CSA LR41370|UL E12252SKU #2447201Part Number #V7-1B17D8-122UNSPSC39122209UPC00078454993158
