Part Number # DP30C1P-1
SKU # 2447203
DP30C1P-1
ABB DP30C1P-1
Part Number # DP30C1P-1
SKU # 2447203
$35.27 / Each
Typical price:$51.53 / Each
ABB DP30C1P-1 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP30C1P-1 |
| SKU #: | 2447203 |
| Coil Power Rating: | 1, 2 hp |
| Coil Voltage: | 120 V AC, 120 VAC |
| Contact Configuration: | 1NO SPDT, SPDT 1NO |
| Dimensions: | 82.9 mm H x 52.5 mm W x 60.1 mm D |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Operating Cycles: | 10000 Cycles |
| Operating Temperature: | -40 to 150 deg F |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Country of origin: | CN |
| Material: | Polyester |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019754154 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.27 / Each
Typical price:$51.53 / Each
Quantity:
ABB DP30C1P-1
Brand: ABB
Part Number: DP30C1P-1
Additional Description: ABB -DP30C1P-1 (N) DP CONTR,30A,1P,120/60 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DP30C1P-1 DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP30C1P-1 Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP30C1P-1 Item Features
- Industry standard mounting plate provides easily accessible mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips #10-32 terminal screws for main terminals
- Coil is Class B (130 deg C) Insulation system with wide range of voltages and 50/60 Hz ratings
- Double E magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from highly arc-resistant polyester
- 1 hp at 110 to 120 VAC, 2 hp at 220 to 240 VAC
DP30C1P-1 Standards
BAA Compliant|CSA C22.2 No. 221260|CE/Semko Certified|EN60947-4-1:2001|UL 508SKU #2447203Part Number #DP30C1P-1UNSPSC39121529UPC00662019754154

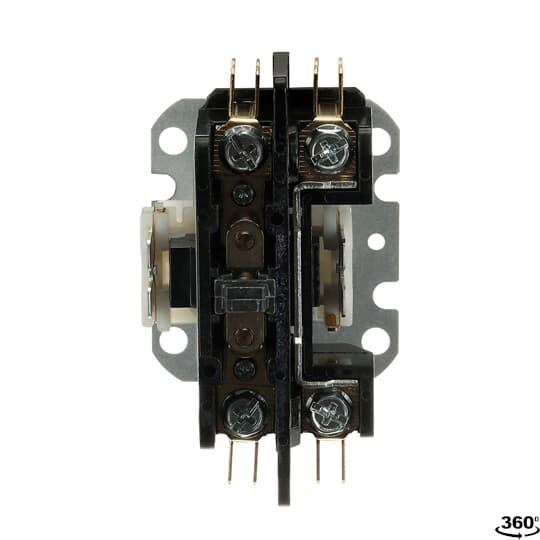

Image provided may only be a representation of final product and may include optional equipment
