1335800000
Weidmuller 1335800000
Part Number # 1335800000
SKU # 2447343
$234.47 / 24Each
Typical price:$269.93 / Each
Weidmuller 1335800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1335800000 |
| SKU #: | 2447343 |
| Connector Size: | 2.5 sq-mm |
| Connector Type: | Male Plug |
| Dimensions: | 0.559 in H x 1.181 in D |
| Number of Positions: | 12 |
| Series: | BL/SL 5.08 |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Push-In |
| Type: | Plug-In |
| Wire Size: | 26 to 12 AWG |
| Contact material: | CuSn |
| Country of origin: | RO |
| Housing material: | PBT |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04050118139471 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$234.47 / 24Each
Typical price:$269.93 / Each
Quantity:
- Weidmuller, 1335800000, PCB Connector, Plug-In, Series: BL/SL 5.08, 12 Positions, 1 Rows, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Male Plug Connector, 2.5 sq-mm Connector, Push-In Termination, CuSn Contact, PBT Housing Material, -50 to 100 deg C, Orange, 0.559 in H x 1.181 in D Dimensions
1335800000 Item Features
- Male plug with PUSH IN wire connection and straight outlet direction, when used with BLF 5.08HC as wire-to-wire application for panel feed-through The male plugs provide space for labelling and can be coded
1335800000 Standards
RoHS Compliant|CSA Certified|cURus Listed|EAC CertifiedSKU #2447343Part Number #1335800000UNSPSC31163101UPC04050118139471

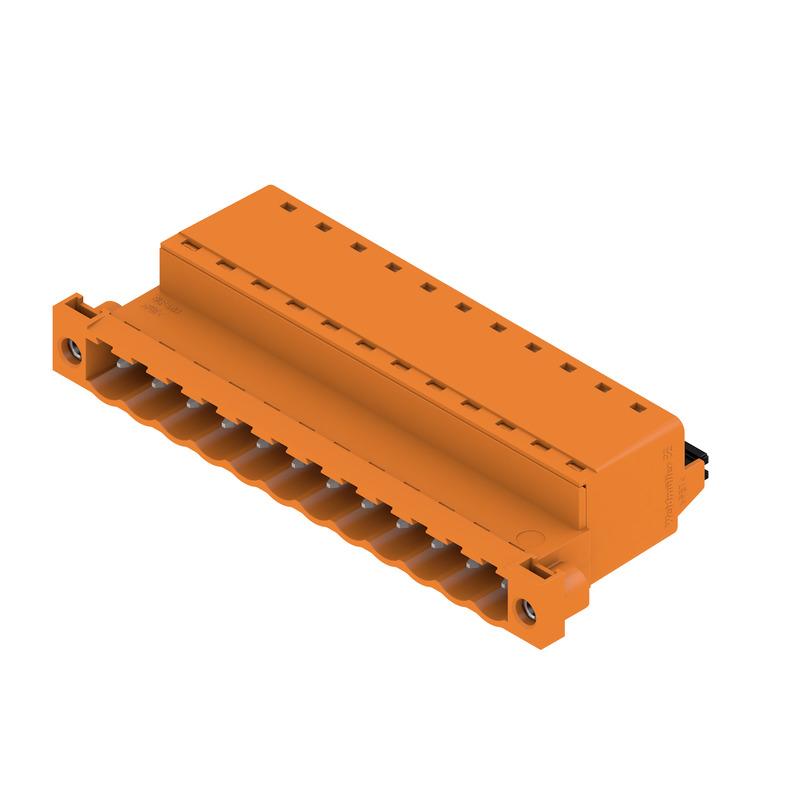

Image provided may only be a representation of final product and may include optional equipment
