Part Number # FMVA25LCY/UNV176
SKU # 2447541
FMVA25LCY/UNV176
Crouse Hinds FMVA25LCY/UNV176
Part Number # FMVA25LCY/UNV176
SKU # 2447541
Crouse Hinds FMVA25LCY/UNV176 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | FMVA25LCY/UNV176 |
| SKU #: | 2447541 |
| Amperage Rating: | 0.8 to 2.18 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 15-1/2 in L x 7 in W x 12 in H |
| Enclosure Type: | NEMA 4X/IP66 |
| Fixture Wattage: | 216 W |
| Housing Finish: | Corro-Free Gray Epoxy Powder Coated |
| Lamp Type: | LED |
| Lens Type: | Clear Tempered Glass |
| Light Color: | Cool White |
| Light Output: | 117 Lumens/W |
| Lumens: | 25500 Lumens |
| Series: | FMVA |
| Type: | High Lumen |
| Country of origin: | US |
| Housing material: | Die Cast Aluminum |
| Mounting type: | Yoke |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39111611 |
| UPC: | 00066227663546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds FMVA25LCY/UNV176
Brand: Crouse Hinds
Part Number: FMVA25LCY/UNV176
Crouse-Hinds Champ® Floodlight Fixture, High Lumen, Series: FMVA, 100 to 277 VAC, 127 to 300 VDC, 216 W Fixture, 0.8 to 2.18 A, LED Lamp, 117 Lumens/W, 120000 hr Average Life, Cool White Light, 5000 K Color, 70 CRI, Clear Tempered Glass Lens, 25500 Lumens, NEMA 4X/IP66, Yoke Mount, Die Cast Aluminum Housing, Corro-free™ Gray Epoxy Powder Coated Housing, 15-1/2 in L x 7 in W x 12 in H
Additional Description: CRHD-FMVA25LCY/UNV1 76 25K LED FLOOD COOL GLASS LENS 120-277V
Catalog Description: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 2.18A, Cool white, Dimmable driver, 3/4", 750-1000W equiv, Heat and impact resistant glass lens, 25,000 lm, 117 lm/W, Die cast alum, 7x6 optics, Gray paint, 100-277 Vac, 217W
FMVA25LCY/UNV176 Application
Oil, Gas Refineries, Drilling Rigs, Petrochemical Facilities, Food, Beverage Facilities, Platforms, Loading Docks, Tunnels, Outdoor Wall, Stanchion Mounted General Area Lighting and Where Flammable Vapors, Gases, Ignitable Dusts, Fibers or Flyings are PresentFMVA25LCY/UNV176 Item Features
- Instant illumination and restrike
- Better visibility with crisp, white light
- Cold temperature operation, no warm-up time required
- Redundancy in drivers with multiple series circuits connected to each driver to avoid complete loss of illumination
- Easy installation yoke design to mount to SFA6
- Energy efficient technology up to 65% energy savings over HID fixtures
- Provides >100000 hr of life eliminates need for frequent lamp replacement
- Contains no mercury or other hazardous substances
- Shock and vibration-resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- Operating ambient -40 to 55 deg C
FMVA25LCY/UNV176 Standards
Class I, Division 2, Group A, B, C, D|Class I, Zone 2, AEx nR II|Class II, Division 1, Group, E F, G|UL 844, 60079-15, 1598, 1598A|CSA C22.2 No. 137|DLC Listed|NEC Certified|CEC CertifiedSKU #2447541Part Number #FMVA25LCY/UNV176UNSPSC39111611UPC00066227663546

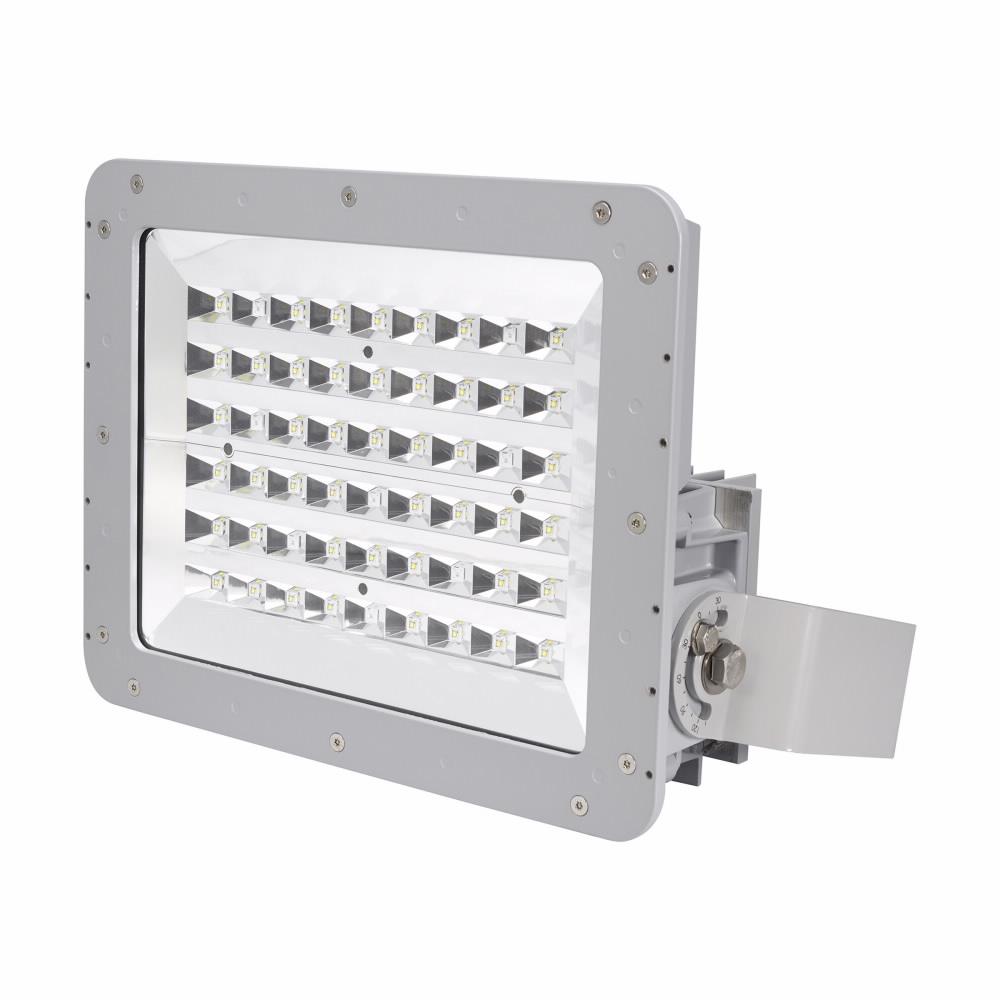

Image provided may only be a representation of final product and may include optional equipment
