Part Number # 24A09-06-144
SKU # 2447645
Image Disclaimers Message
Brand: B-Line
24A09-06-144

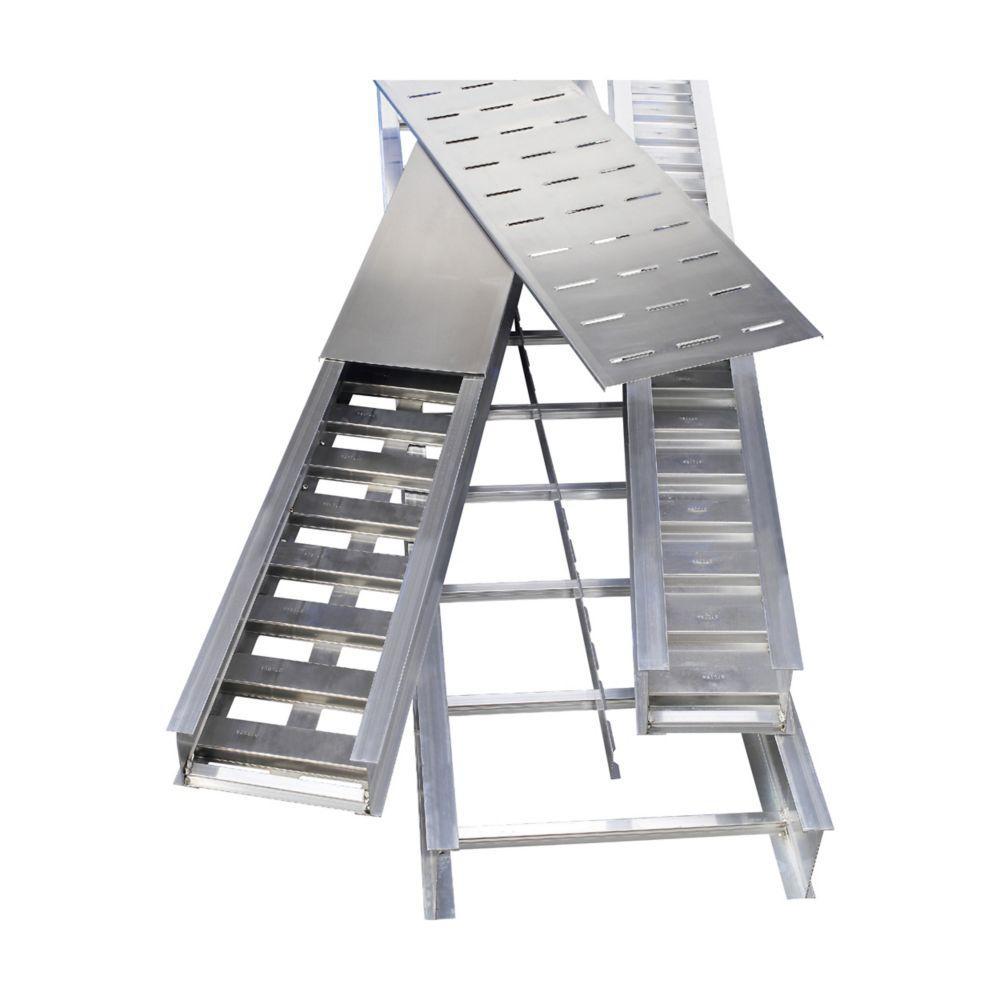

B-Line 24A09-06-144
Part Number # 24A09-06-144
SKU # 2447645
$870.61 / Each
B-Line 24A09-06-144 Key Features
Brand: B-Line
Part Number # 24A09-06-144
SKU #2447645
Capacity: 487 ft-lb
Overall Height: 4.12 in
Rung Spacing: 9 in
Series: 24A Series II
Type: Straight Section
Country of origin: US
Length: 12 ft
Material: 6063-T6 Aluminum
Width: 6 in
Manufacturer Name: Eaton
UNSPSC: 39131703
UPC: 00078101115234
$870.61 / Each
B-Line 24A09-06-144
Brand: B-Line
Part Number: 24A09-06-144
Additional Description: BLIN-24A09-06-144 (N) 24A09-06-144 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series straight section, 4.12" H x 144" W x 6" L, 9" Rung spacing, Aluminum
24A09-06-144 Includes
9A-1004 Wedge Lock Splice Plate Pair with 3/8 in Zinc Plated Hardware24A09-06-144 Item Features
- Cable trays will support without collapse a 200 lb concentrated load over and above published loads
- Safety factor is 1.5
- 1 in cable bearing surface
- Copper free marine grade
- 487/284/181/126/93/71 lb/ft load
- 6/8/10/12/14/16 ft span
- 0.001/0.003/0.008/0.016/0.03/0.052 deflection multiplier
- Design factors for two rails is 1.05 sq-in
24A09-06-144 Standards
UL Listed|CSA C22.2 NO 126|NEMA VE 1SKU #2447645Part Number #24A09-06-144UNSPSC39131703UPC00078101115234
