1704360000
Weidmuller 1704360000
Part Number # 1704360000
SKU # 2447653
$123.23 / 100Each
Typical price:$136.90 / Each
Weidmuller 1704360000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1704360000 |
| SKU #: | 2447653 |
| Amperage Rating: | 20/21/24/25 A |
| Dimensions: | 33.5 mm H x 5.1 mm W x 24 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Central Feed-Through Mini-Modular |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190948108 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$123.23 / 100Each
Typical price:$136.90 / Each
Quantity:

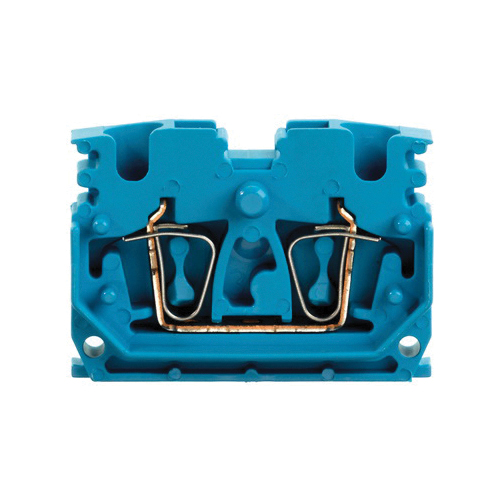

- Klippon Terminal Block, 1-Tier Central Feed-Through Mini-Modular, Series: Z Series, 550/600/800 V, 20/21/24/25 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, Surface Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Blue, 33.5 mm H x 5.1 mm W x 24 mm D Dimensions
1704360000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 24 A IEC, 21 A EN 60079-7, 20 A UL and 25 A CSA
1704360000 Standards
RoHS Compliant|UL File No. E60693|CSA 12400-379|ATEX DEMKO16ATEX1808U|IECEX IECEXULD16.0036U|UL 94 V-0 Flammability Rating|CE Certified|cULusEX Listed|EAC Certified|KEMAEUR Certified|IEC 60947-7-1SKU #2447653Part Number #1704360000UNSPSC39121410UPC04008190948108
Image provided may only be a representation of final product and may include optional equipment
