1704570000
Weidmuller 1704570000
Part Number # 1704570000
SKU # 2447656
$195.96 / 100Each
Typical price:$217.70 / Each
Weidmuller 1704570000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1704570000 |
| SKU #: | 2447656 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.319 in H x 0.402 in W x 0.945 in D |
| Number of Poles: | 4 |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | 0.6 x 3.5 mm |
| Terminal Type: | Blade |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Spring |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190948313 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$195.96 / 100Each
Typical price:$217.70 / Each
Quantity:

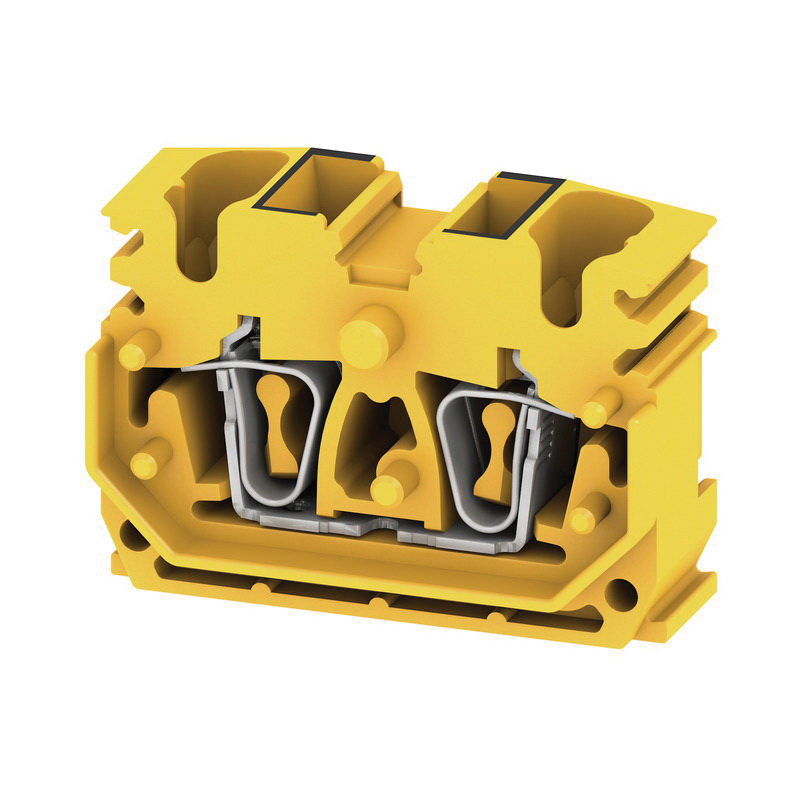

- Weidmuller Mini-Modular PE Terminal Block, Series: Z Series, 800 V AC, 24 A, 4 Poles, 26 to 12 AWG Wire, 10 mm Wire Strip Length, Blade Terminal, 0.6 x 3.5 mm Terminal, Surface Mount, Spring, -50 to 120 deg C, Wemid, Yellow, 1.319 in H x 0.402 in W x 0.945 in D
1704570000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types. its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 8 kV rated impulse withstand voltage
- UL94 flammability rating - V-0
- Version - tension clamp connection, can only be bridged at the clamping point, one end without connector
- End cover plate required
- One level
- Four clamping points per level
- One potential per tier
- Mounting plate - mounting rail
- Lead free
- Top connection direction
- 3 pollution severity
- 1-tier
- Spring connection with tension clamp connection
1704570000 Standards
CE Certified|CSA Certified|EAC Approved|IEC 60947-7-1|IECEX-KEMA|ATEX-KEMA|UR Listed|UL E60693|RoHS CompliantSKU #2447656Part Number #1704570000UNSPSC39121410UPC04008190948313
Image provided may only be a representation of final product and may include optional equipment
