Part Number # 832-1103
SKU # 2447823
Image Disclaimers Message
Brand: Wago
832-1103
Wago 832-1103
Part Number # 832-1103
SKU # 2447823
$12.63 / Each
Typical price:$13.68 / Each
Wago 832-1103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 832-1103 |
| SKU #: | 2447823 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.146 in H x 1.251 in W x 1.961 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Lever |
| Wire Size: | 18 to 4 AWG |
| Color: | Light gray |
| Connection type: | Push-In |
| Material: | Polybutylene Terephthalate |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143921169 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.63 / Each
Typical price:$13.68 / Each
Quantity:
Wago 832-1103
Brand: Wago
Part Number: 832-1103
Additional Description: WAGO-832-1103 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; LEVER; SILVER-PLATED CONTACTS; 16 MM ; PIN SPACING 10.16 MM; 3-POLE; 16,00 MM ; LIGHT GRAY 60504364

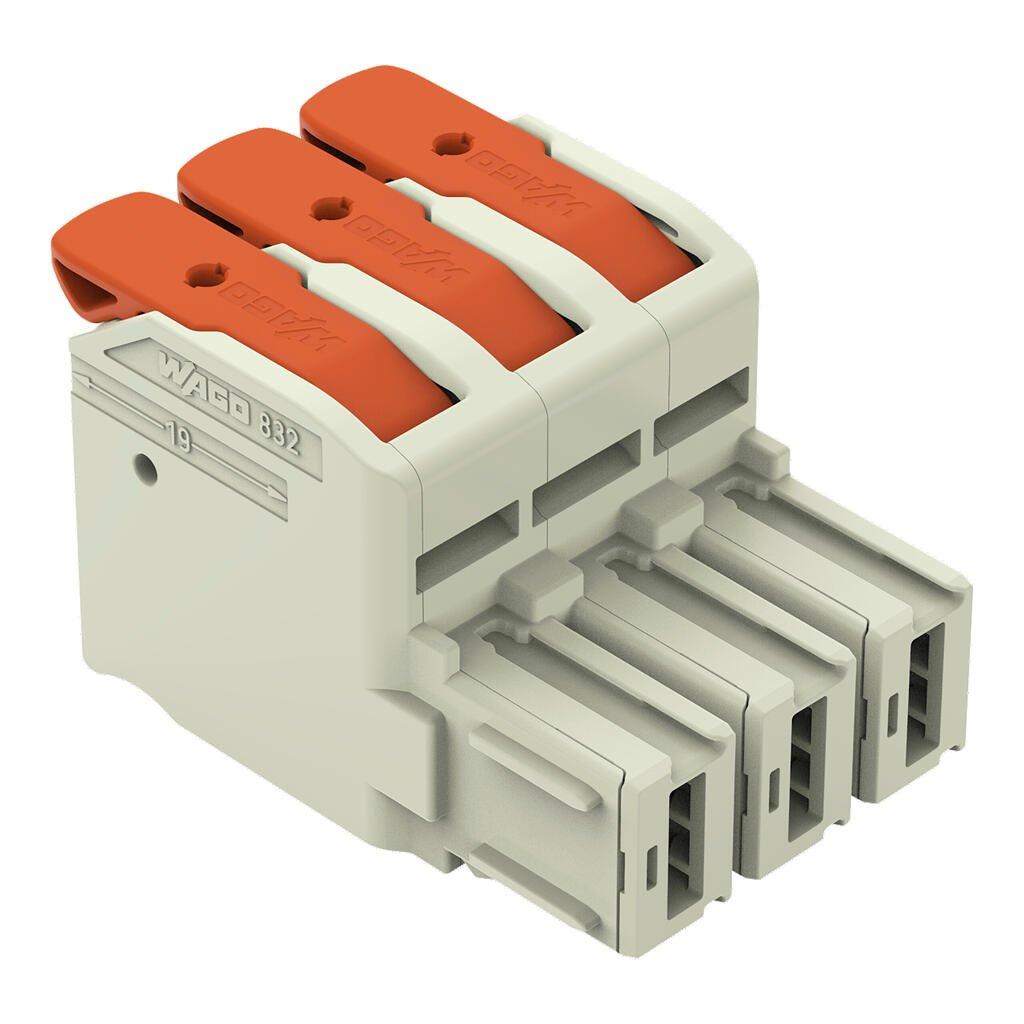

Catalog Description: 1-conductor female connector; lever; Push-in CAGE CLAMP®; 16 mm²; Pin spacing 10.16 mm; 3-pole; 100% protected against mismating; Silver-plated contacts; 16,00 mm²; light gray
832-1103 Item Features
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Push-in termination of solid or ferruled conductors
- 100 Percent protected against mismating
- Coding option available
832-1103 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2447823Part Number #832-1103UNSPSC39121421UPC04055143921169
