Part Number # HBLBA3MN
SKU # 2447947
HBLBA3MN
Hubbell HBLBA3MN
Part Number # HBLBA3MN
SKU # 2447947
$285.71 / Each
Typical price:$369.00 / Each
Hubbell HBLBA3MN Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLBA3MN |
| SKU #: | 2447947 |
| Amperage Rating: | 60 A |
| Dimensions: | 4.4 in Dia x 8.2 in L |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 45 deg C |
| Terminal Type: | Pressure Terminal Screw |
| Type: | Male Plug |
| Country of origin: | US |
| Material: | Valox 357U Housing/PBT |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585749266 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$285.71 / Each
Typical price:$369.00 / Each
Quantity:
Hubbell HBLBA3MN
Brand: Hubbell
Part Number: HBLBA3MN

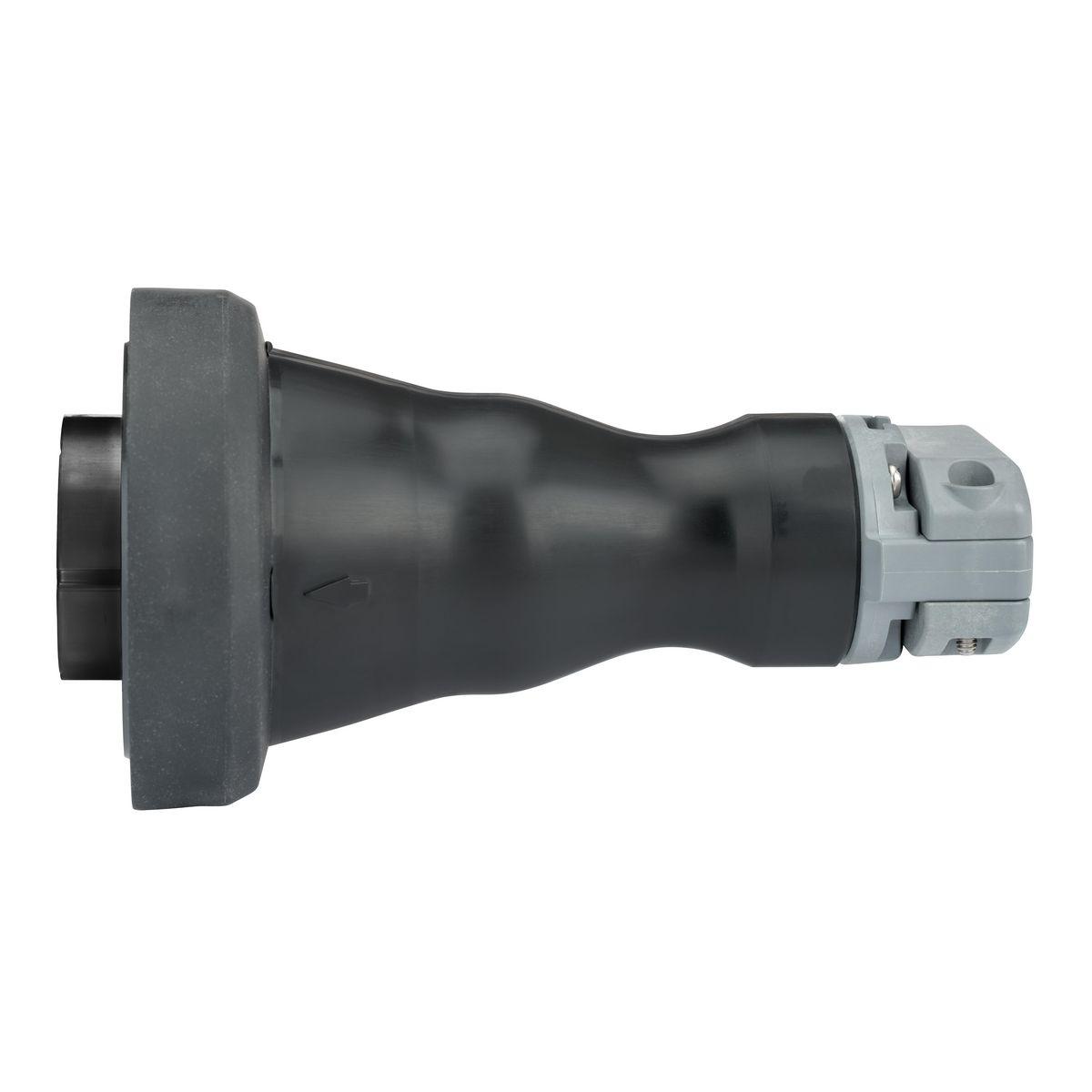

Additional Description: HUBW-HBLBA3MN BREAKAWAY MALE PLUG, 3 WIRE, W/ NEUTRAL
Catalog Description: Breakaway male plug, 3-wire, 125VAC, 277VAC, 347VAC
HBLBA3MN Application
For Portable Electrical EquipmentHBLBA3MN Item Features
- A proprietary magnetic system ensures a secure coupling force to achieve reliable disconnections and quick re-connections
- Durable Valox 357U housings provide superior impact, chemical, and UV resistance
- High-density Santoprene bumpers provide extra impact protection
- Heavy duty external cord clamps provide maximum cord retention to maintain unstressed terminations
- Rated for harsh outdoor and washdown environments
- Maximum Working Voltage - 480V AC
- Two auxiliary contacts, rated 10A 120VAC and 3A 24VDC, enable connection to a customer supplied relay or alarm
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6364305525112
HBLBA3MN Standards
IP69K|UL 1682|cULus, UL 1682|UL Type 4XSKU #2447947Part Number #HBLBA3MNUNSPSC39121421UPC00783585749266
Image provided may only be a representation of final product and may include optional equipment
