Part Number # 716404
SKU # 2448055
Image Disclaimers Message
716404

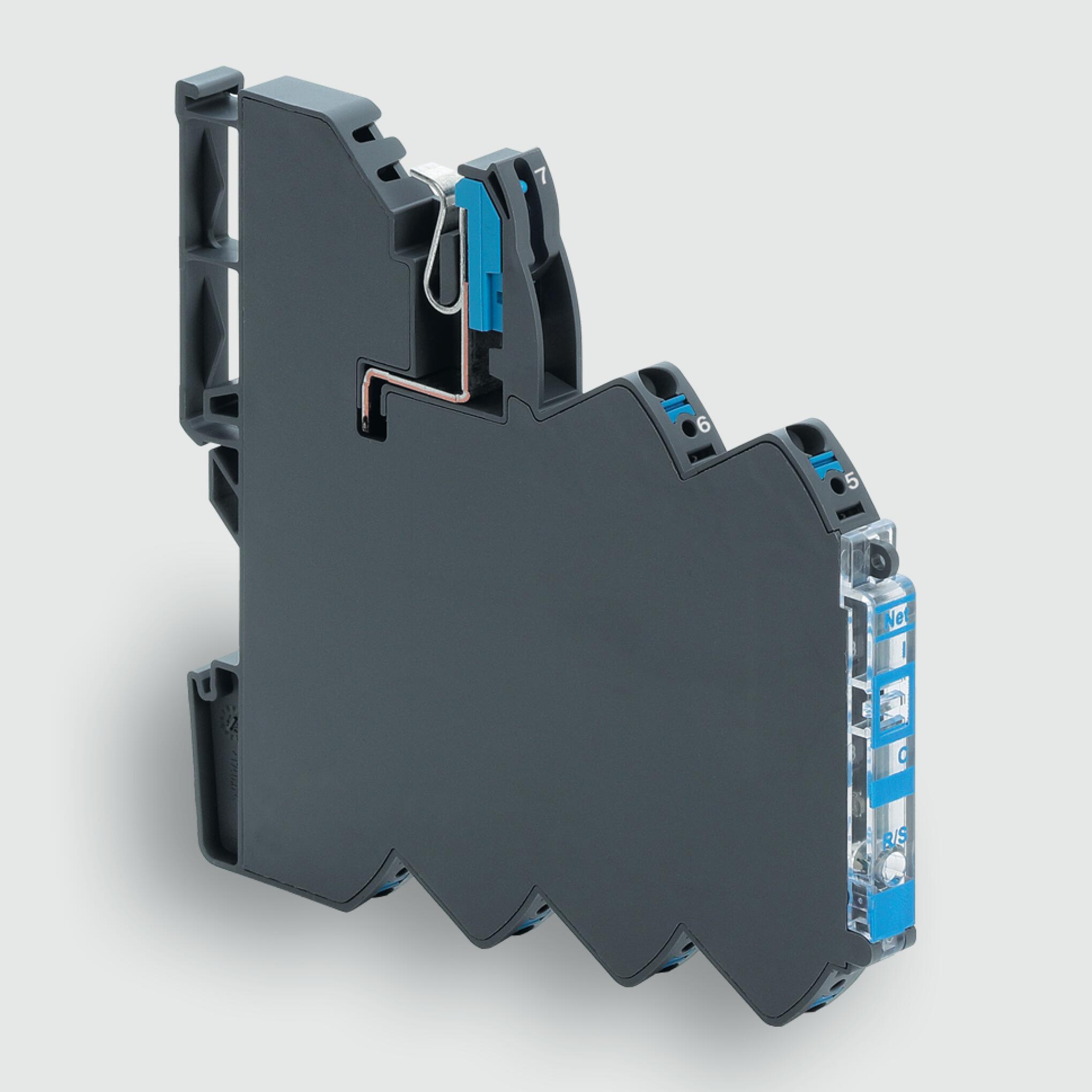

LUTZE 716404
Part Number # 716404
SKU # 2448055
$66.37 / Each
Typical price:$86.88 / Each
LUTZE 716404 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 716404 |
| SKU #: | 2448055 |
| Amperage Rating: | 10 A |
| Series: | LOCC-BOX |
| Terminal Type: | Spring |
| Type: | 1-Channel 1-Pin Switching |
| Color: | Gray |
| Country of origin: | CZ |
| Material: | PA6.6 |
| Mounting type: | DIN Rail |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | MISC |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.37 / Each
Typical price:$86.88 / Each
Quantity:
- LUTZE, 716404, Electronic Load Monitoring, 1-Channel 1-Pin Switching, Series: LOCC-BOX, 10 A, 10 to 30 V, Spring Terminal, DIN Rail Mounting, MOSFET Element, PA6.6, Gray, 8.1 mm W x 107.4 mm D x 116.0 mm H Body
716404 Application
For industrial applications716404 Item Features
- Adjustable characteristics - fast, medium, slow 1, slow 2, slow 3
- Independent of ambient temperature, no derating required
- LED status indicator on/off/alarm
- Output alarm signal at 90% of load setting
- Output trip alarm
- Remote reset and remote on/off
- Safety first when conventional circuit breakers and fuses are not reliable enough
716404 Standards
cULus E135145|EN 60950-1/61131-1,2/61000/60947-4-1/55022SKU #2448055Part Number #716404UNSPSCMISCUPC
