Part Number # AQU3422RCXAXT1B4
SKU # 2448112
AQU3422RCXAXT1B4
ABB AQU3422RCXAXT1B4
Part Number # AQU3422RCXAXT1B4
SKU # 2448112
ABB AQU3422RCXAXT1B4 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AQU3422RCXAXT1B4 |
| SKU #: | 2448112 |
| Bus Material: | Copper |
| Dimensions: | 53-1/2 in L x 15-1/4 in W x 49-1/2 in H |
| Enclosure Type: | NEMA 1/3R/12 |
| Number of Circuits: | 42 |
| Series: | A-Series II |
| Type: | 3-Phase Interior Unassembled |
| UNSPSC: | 39121103 |
| UPC: | 00783175408641 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AQU3422RCXAXT1B4
Brand: ABB
Part Number: AQU3422RCXAXT1B4
Additional Description: ABB -AQU3422RCXAXT1B4 RLP MERCH 240V 3PH 225A 42CR CU
Catalog Description: ReliaGear Pro-Stock panelboards offer a symmetrical design for top or bottom feed with main breaker or main lugs. With a reversible interior, there is no need to specify top or bottom feed. Modular kits are available from inventory for immediate availability to your customers in over 1,500 panel designs. Main bus ratings of 250 A and 400 A main breaker; 225 A, 400 A and 600A main lug available.
AQU3422RCXAXT1B4 Application
Electrical Distribution and Control ApplicationsAQU3422RCXAXT1B4 Item Features
- Maximum system voltage is up to 240 VAC for AQ panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock panels have the capability of adding sub feed breaker or feed-through lug in the field
- All panel are convertible between main lug or main breaker
- Reversible interior and no need to specify top or bottom feed
- Solid state Spectra rms or thermal magnetic breakers available as mains or sub-feeds
- Flush or surface mounted trims with door within door and front hinge to box options available
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Extruded split neutrals speed and simplify wiring
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A
- 49-1/2 in H box/front
- 32 go schedule
AQU3422RCXAXT1B4 Standards
CSA Certified|California Building Code Seismic Zone 4|Federal Specification W-P-115C|International Building Code Seismic Zone 3 and 4|NEC Article 384|UL 67|UL 50|UL 943SKU #2448112Part Number #AQU3422RCXAXT1B4UNSPSC39121103UPC00783175408641

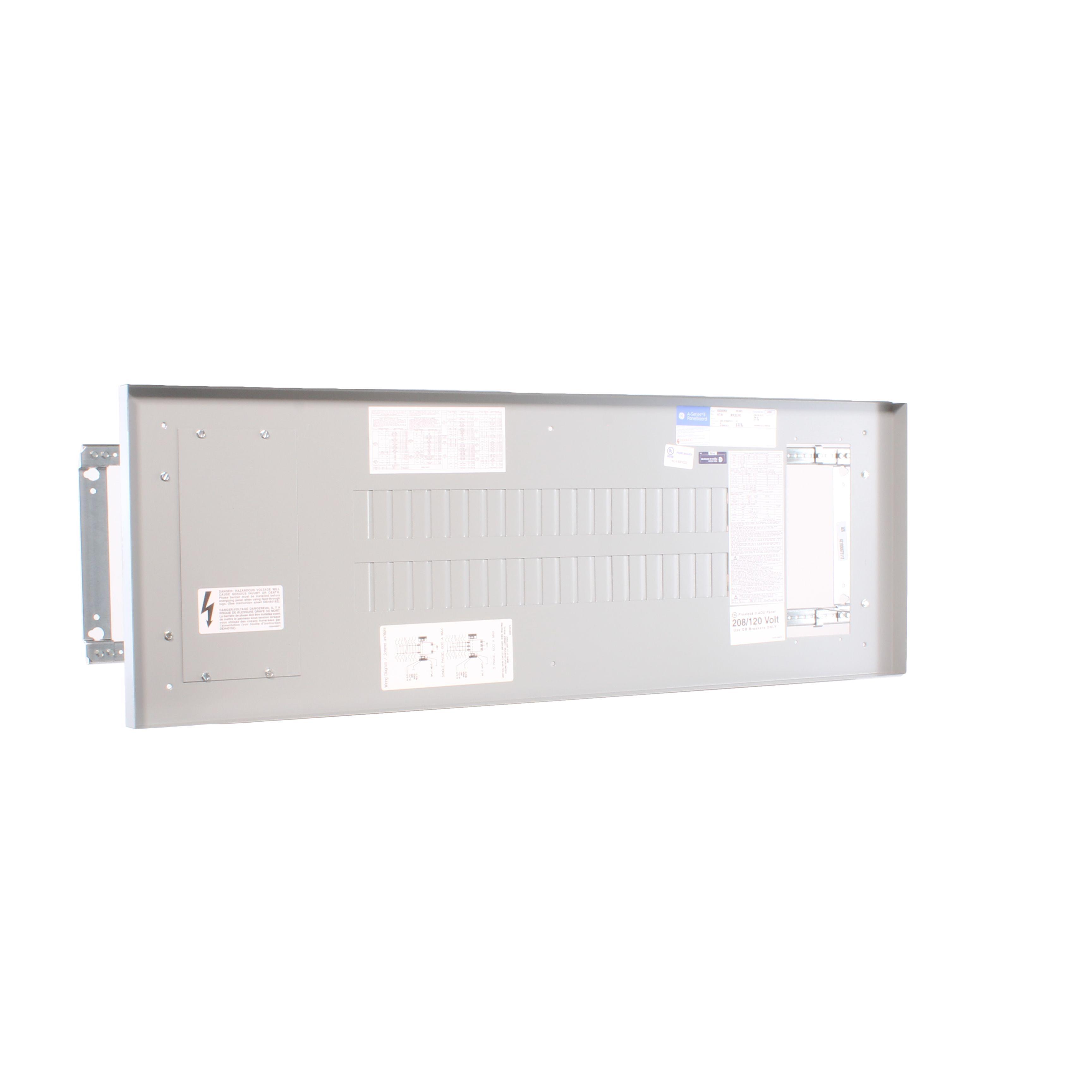

Image provided may only be a representation of final product and may include optional equipment
