Part Number # CCP2-1-DCM
SKU # 2448295
Image Disclaimers Message
Brand: Bussmann
CCP2-1-DCM

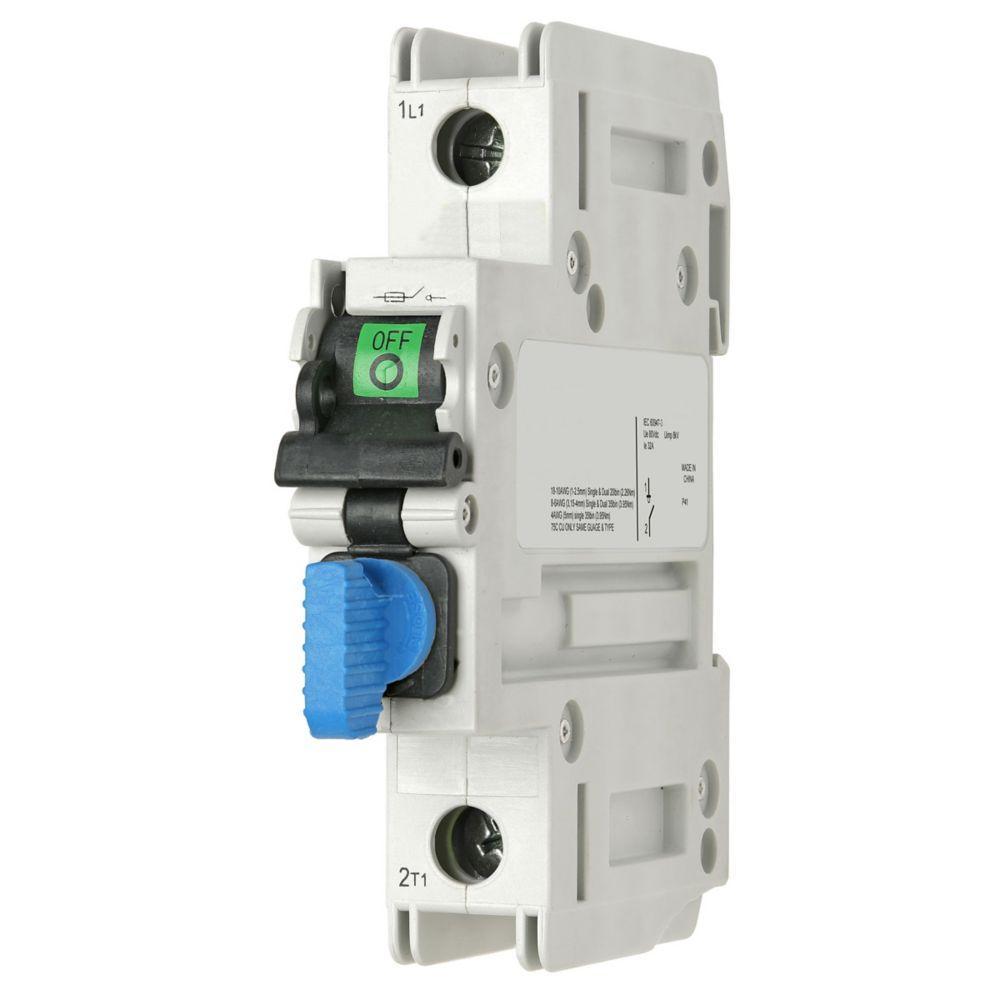

Bussmann CCP2-1-DCM
Part Number # CCP2-1-DCM
SKU # 2448295
$73.99 / Each
Typical price:$150.45 / Each
Bussmann CCP2-1-DCM Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2-1-DCM |
| SKU #: | 2448295 |
| Amperage Rating: | 30 A |
| Number of Poles: | 1 |
| Operating Temperature: | -4 to 167 deg F |
| Operator: | Switch |
| Type: | Compact Fused Supplemental |
| Height: | 3.7 in |
| Mounting type: | 35 mm DIN Rail |
| Width: | 4.2 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712709231 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$73.99 / Each
Typical price:$150.45 / Each
Quantity:
- EATON Bussmann Circuit Protector Disconnect Switch, Compact Fused Supplemental, 80 V DC, 30 A, 1 Pole, 35 mm DIN Rail Mount, Switch Operator, -4 to 167 deg F Operating, 4.2 in W, 3.7 in Height
CCP2-1-DCM Item Features
- Extremely compact (18 mm wide per pole ) design
- Disconnect rated for load isolation
- IEC 10x38 version complies with IEC 60947-3 and suitable for branch circuit protection and disconnect
- Suitable for global installations, the switches comply with UL, cULus and IEC standards accepting UL class CC, supplemental or IEC aM and gG/gL fuses
- Open fuse indication - standard local open fuse indicating light for each pole
- IP20 finger-safe with 10 AWG or larger wire (box lug terminals only)
- Built-in switch interlock prohibits removing the fuse under load
- Padlockable handle for lockout/tagout - 4 mm lock for switch only
- 1/4 in lock for rotary operated switches
CCP2-1-DCM Standards
UL 508 File No. E320230, Guide NRNT|cULus 22.2 No. 14-05|IEC 60947-3, DC-23A|CE CertifiedSKU #2448295Part Number #CCP2-1-DCMUNSPSC39122233UPC00051712709231
