Part Number # XB4BK124B5
SKU # 2448934
Image Disclaimers Message
XB4BK124B5
Schneider Electric XB4BK124B5
Part Number # XB4BK124B5
SKU # 2448934
$133.57 / Each
Typical price:$168.62 / Each
Schneider Electric XB4BK124B5 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB4BK124B5 |
| SKU #: | 2448934 |
| Bezel/Housing: | Chromium Plated Metal |
| Contact Configuration: | 1NC + 1NO |
| Contact Rating: | 3 A at 240 V, 16 A at 120 V, 10.1 A at 600 V, 10.27 A at 250 V, 10.55 A at 125 V, 11.2 A at 600 V |
| Enclosure Type: | NEMA 13/4X/IK04 |
| Environmental Conditions: | -40 to 158 deg F Operating Temperature |
| Lamp Type: | LED |
| Number of Positions: | 2 |
| Operator Type: | Lever, Standard Handle |
| Series: | XB4 |
| Size: | 22.5 mm Dia |
| Terminal Type: | Screw Clamp |
| Throw: | 90 deg |
| Material: | Zamak |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122217 |
| UPC: | 03389110892208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$133.57 / Each
Typical price:$168.62 / Each
Quantity:
Schneider Electric XB4BK124B5
Brand: Schneider Electric
Part Number: XB4BK124B5
Additional Description: SQD -XB4BK124B5 Ill SS metal red 22mm 2pos 24V

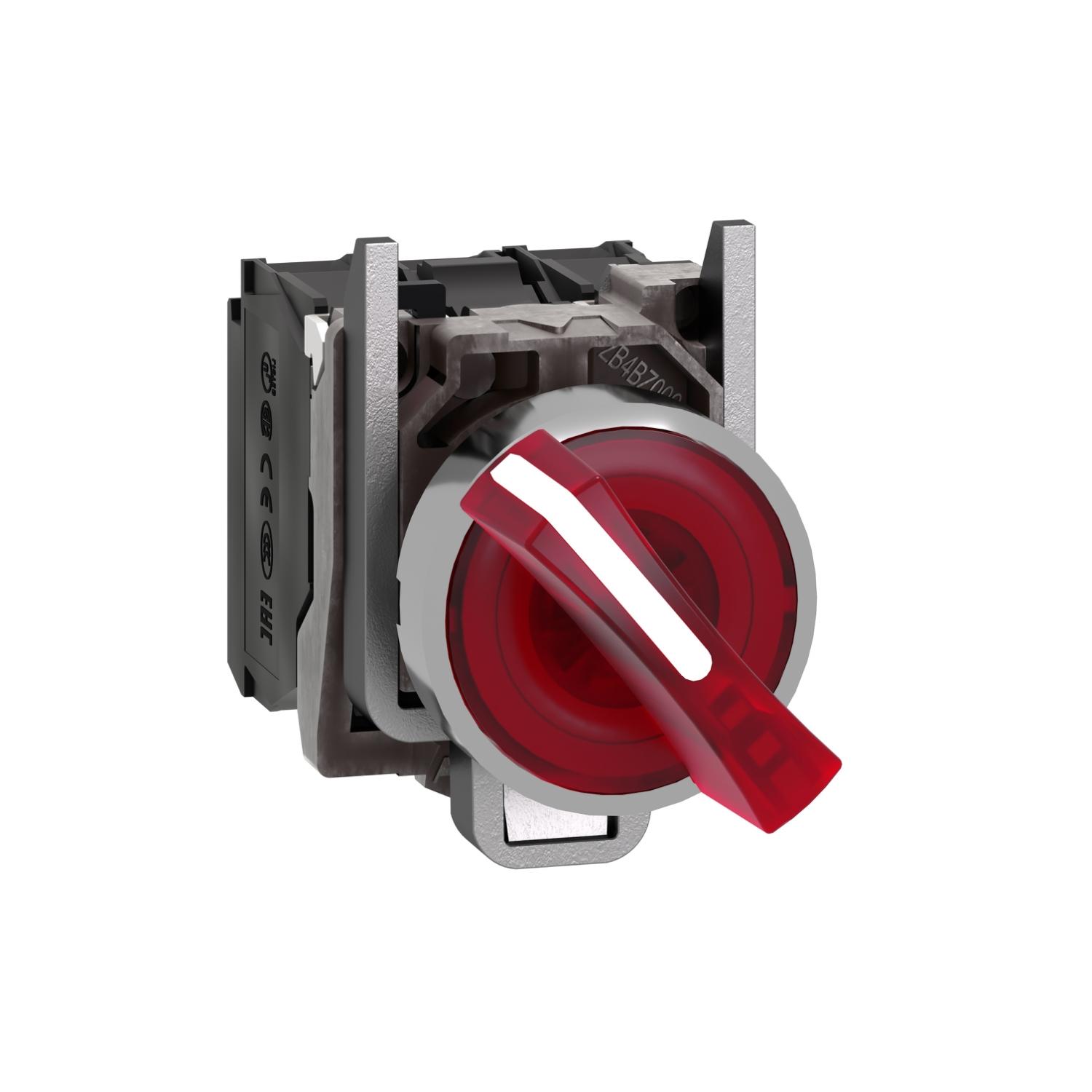

Catalog Description: Illuminated selector switch, Harmony XB4, metal, red handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 24V AC DC
XB4BK124B5 Application
For general purposes or specific applicationsXB4BK124B5 Item Features
- Universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
XB4BK124B5 Standards
IP69|UL 508|IP67|IP69K|IEC 60947-1|IEC 60947-5-1|IP66|JIS C8201-1|CSA C22.2 No 14|JIS C8201-5-1|IEC 60947-5-5|IEC 60947-5-4SKU #2448934Part Number #XB4BK124B5UNSPSC39122217UPC03389110892208
