2469390000

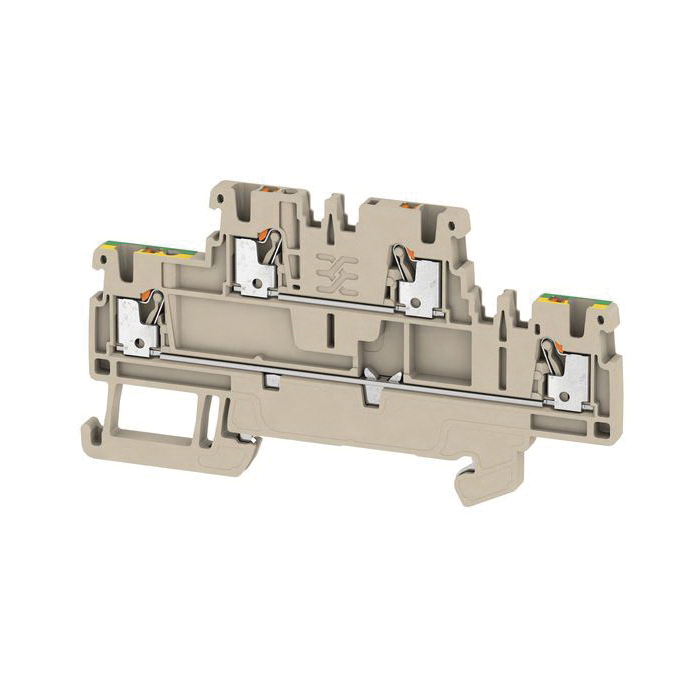

Weidmuller 2469390000
Part Number # 2469390000
SKU # 2449189
$211.82 / 50Each
Typical price:$235.30 / Each
Weidmuller 2469390000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2469390000 |
| SKU #: | 2449189 |
| Amperage Rating: | 16 A |
| Dimensions: | 3.307 in H x 0.138 in W x 1.772 in D |
| Series: | A-Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 2-Tier Feed-Through Universal |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118485394 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$211.82 / 50Each
Typical price:$235.30 / Each
Quantity:
- Weidmuller Terminal Block, 2-Tier Feed-Through Universal, Series: A-Series, 500 V, 16 A, 26 to 14 AWG Wire, 8 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 3.307 in H x 0.138 in W x 1.772 in D Dimensions
2469390000 Item Features
- Standardized test point
- Optical and physical separation of operation and conductor entry
- Vibration-resistant, gastight connection with copper power rails and stainless steel spring
- Release the conductor with any tool
- Large marking surfaces make maintenance work easier
- Clip-in foot compensates for differences in terminal rail dimensions
- Mounting foot makes unlatching the terminal block easy
- Clear distinction made between all functional areas
- Easier marking and wiring
- Slim design creates a large amount of space in the panel
- High wiring density despite less space being required on the terminal rail
- https://youtu.be/Ax-uMMGVSA4
2469390000 Standards
UL 94 V-0 Flammability Rating|CE Certified|CSA Certified|DNV-GL Certified|ATEX Compliant|EAC Approved|IEC EX Certified|cULus File No. E60693SKU #2449189Part Number #2469390000UNSPSC39121410UPC04050118485394
Image provided may only be a representation of final product and may include optional equipment
