Part Number # TCF300
SKU # 2449190
Image Disclaimers Message
TCF300

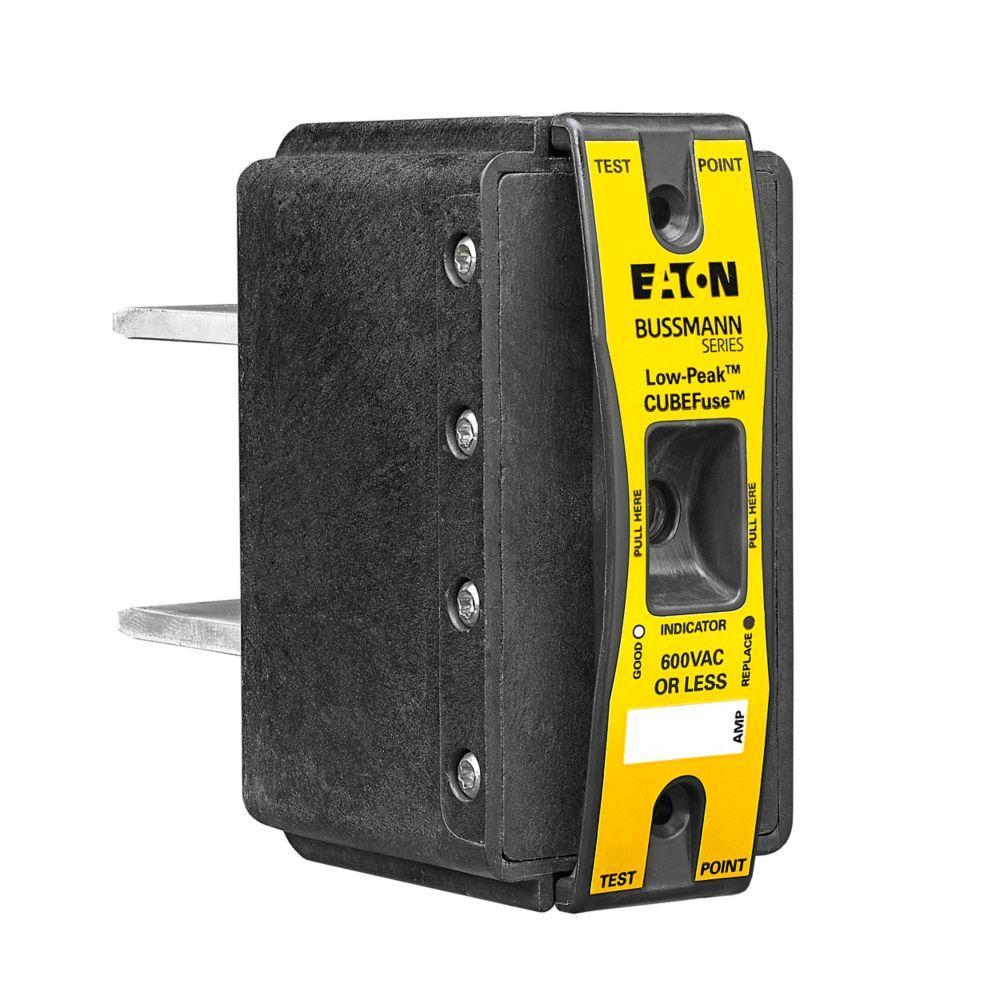

Bussmann TCF300
Part Number # TCF300
SKU # 2449190
$786.06 / Each
Typical price:$1339.28 / Each
Bussmann TCF300 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF300 |
| SKU #: | 2449190 |
| Amperage Rating: | 300 A |
| Body Type: | Square |
| Class: | CF |
| Interrupt Rating: | 200 kA |
| Response Time: | 10 s |
| Series: | TCF |
| Terminal Type: | Blade |
| Type: | Indicating Time Delay |
| Country of origin: | MX |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712697835 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$786.06 / Each
Typical price:$1339.28 / Each
Quantity:
- EATON Bussmann Low-Peak CUBEFuse Fuse, Indicating Time Delay, Series: TCF, 300 A, 600 V, 200 kA Interrupt, Class: CF, 10 s Response, Blade Terminal, Holder Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 3.46 in W x 1.69 in D x 4.25 in H Body Size
TCF300 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel Applications, Stationary Machinery and Equipment Outside FactoryTCF300 Item Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL class CF with Class J time delay electrical performance
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA rms symmetrical, 100 kA DC interrupting rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF300 Standards
UL Listed,RoHS CompliantSKU #2449190Part Number #TCF300UNSPSC39121606UPC00051712697835
