Part Number # XB4FG33
SKU # 2449548
Image Disclaimers Message
XB4FG33

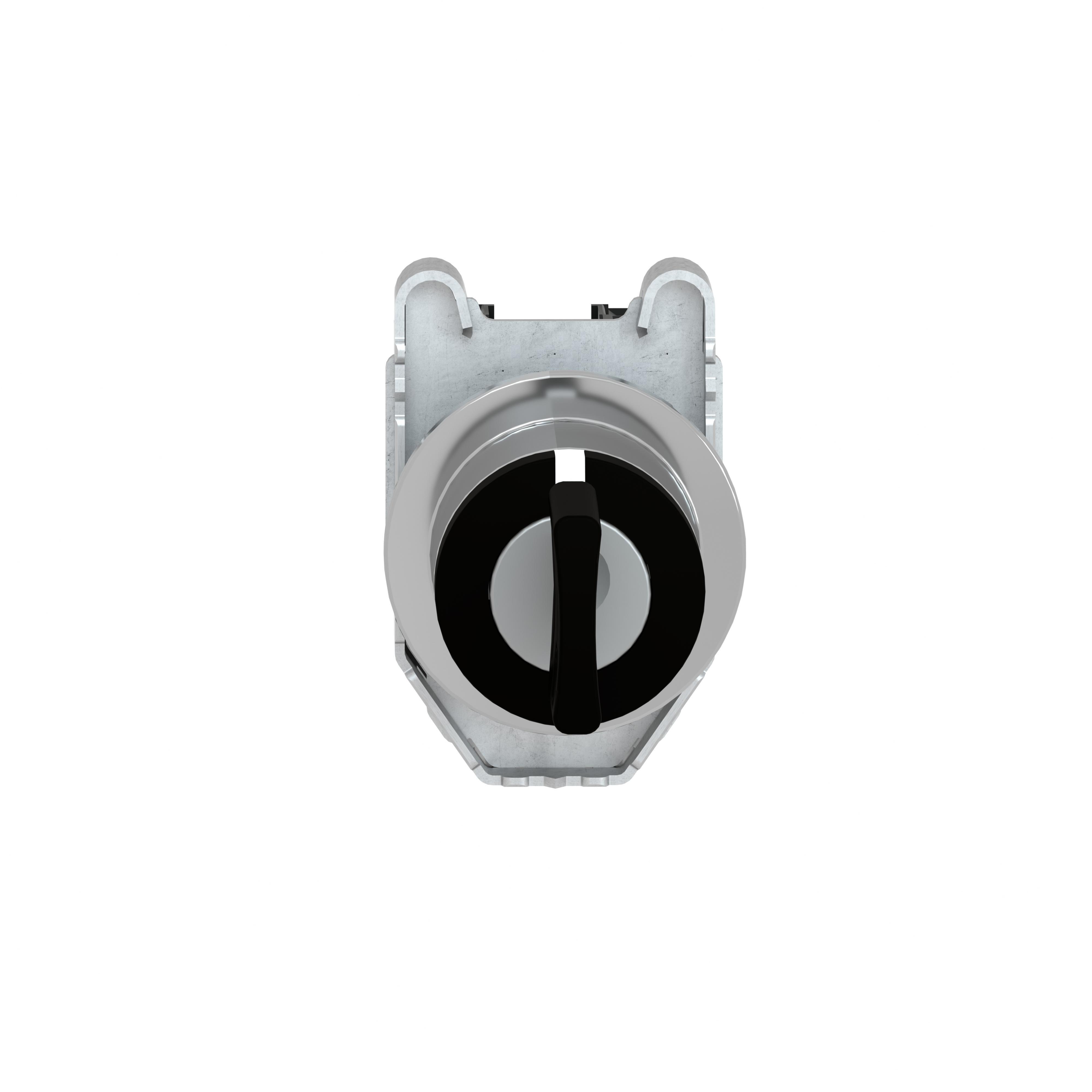

Schneider Electric XB4FG33
Part Number # XB4FG33
SKU # 2449548
$111.92 / Each
Typical price:$141.30 / Each
Schneider Electric XB4FG33 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB4FG33 |
| SKU #: | 2449548 |
| Bezel/Housing: | Metal |
| Contact Configuration: | 2NO |
| Contact Rating: | 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V |
| Enclosure Type: | NEMA 4/4X/12/13/IP66/IP67/IP69/IP69K |
| Environmental Conditions: | -40 to 158 deg F Operating, -40 to 70 deg C Storage |
| Finish: | Polished Chrome |
| Indicator Type: | LED |
| Legend: | Blank |
| Legend Color: | Class I |
| Number of Positions: | 3 |
| Operator Type: | 455 Key Switch, Keyed |
| Series: | Harmony XB4 |
| Size: | 30 mm |
| Terminal Type: | Screw Clamp |
| Throw: | 45 deg |
| Type: | Round Head |
| Color: | Black |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Metal |
| Mounting type: | Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122217 |
| UPC: | 03606489580223 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.92 / Each
Typical price:$141.30 / Each
Quantity:
- Schneider Electric Square D Selector Switch, Round Head, Series: Harmony XB4, 30 mm Size, 2NO Contact Configuration, Slow Break Contact, Stay Put Contact Mode, 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V Contact, Keyed Operator, 3 Positions, 45 deg Throw, LED Insulation, Legend: BLANK, Class I Legend, Bezel/Housing: Metal, Screw Clamp Connection, Screw Clamp Terminal, LED Indicator, NEMA 4/4X/12/13/IP66/IP67/IP69/IP69K Enclosure, Flush Mounting, Metal, Polished Chrome, Black, Environmental Conditions: -40 to 158 deg F Operating, -40 to 70 deg C Storage
XB4FG33 Application
Industrial and Outdoor ApplicationsXB4FG33 Item Features
- 3 A at 240 V, AC-15, A600, 6 A at 120 V, AC-15, A600, 0.1 A at 600 V, DC-13, Q600, 0.27 A at 250 V, DC-13, Q600, 0.55 A at 125 V, DC-13, Q600, 1.2 A at 600 V, AC-15, A600
- The flush mounting solution addresses the market demands for ergonomic design and aesthetics
- Built-in flush pushbuttons
- Pushbuttons and switches with a vibrant color pallet
- Innovative design without compromise on cost
- Better perceived quality of your machines and panels
- A clearer view of control features
- Markings on the bezel for all built-in flush products
- 455 Key Switch
- https://youtu.be/ltP7GFZoBz8
XB4FG33 Standards
RoHS Compliant|EN/IEC 60947-5-4/60947-1/60947-5-5/60947-5-1|JIS C8201-5-1/C8201-1|UL 508|UL 50 E|CSA C22.2 File No. 14|UL Listed|CSA Certified|CCC Certified|EAC Certified|IEC 60068-2-6/IEC 60068-2-6/60068-2-27/50102|REACH Compliant|WEEE Certified|Green Premium Listed|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.govSKU #2449548Part Number #XB4FG33UNSPSC39122217UPC03606489580223
