Part Number # LC1D09EHE
SKU # 2450032
Image Disclaimers Message
LC1D09EHE

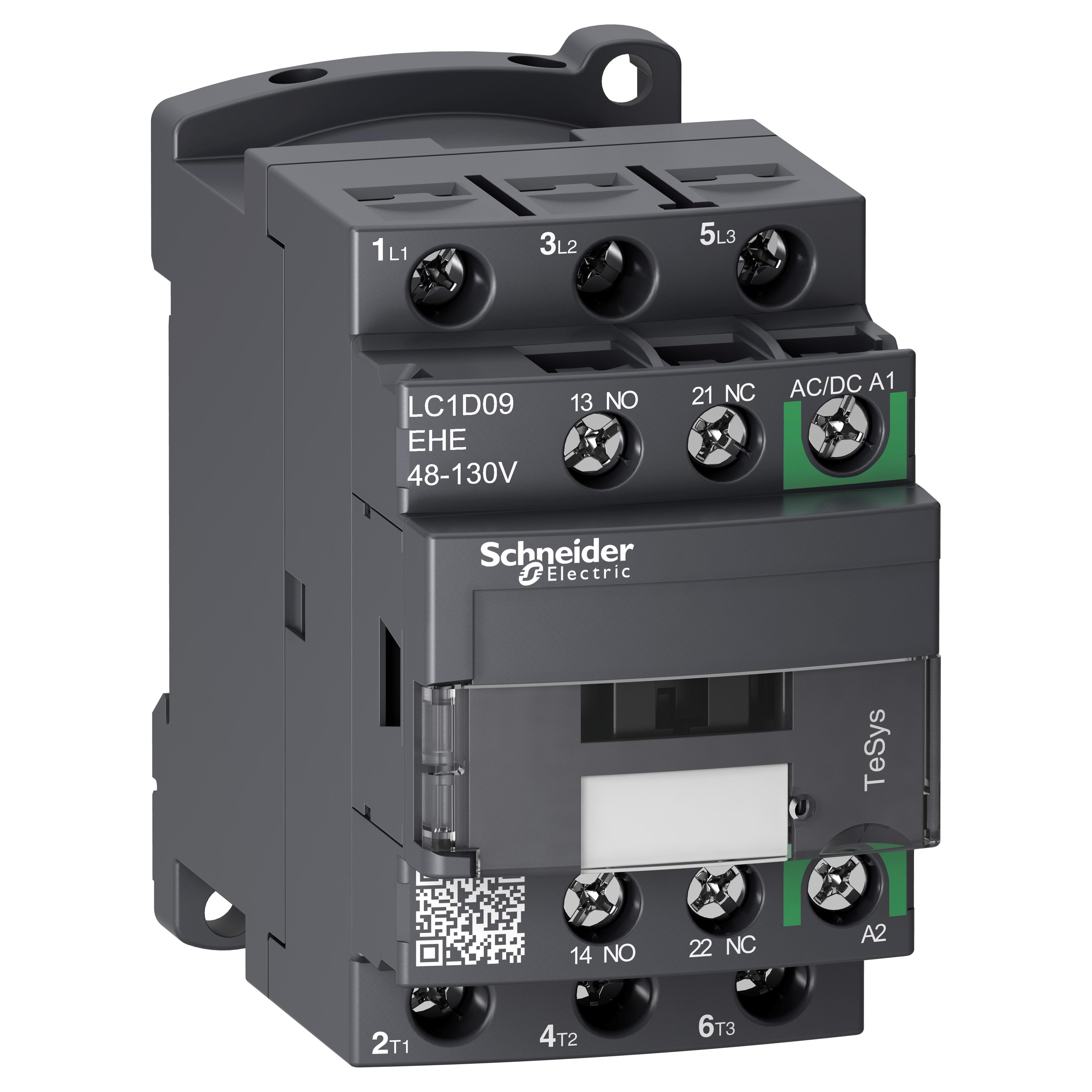

Schneider Electric LC1D09EHE
Part Number # LC1D09EHE
SKU # 2450032
$130.86 / Each
Schneider Electric LC1D09EHE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D09EHE |
| SKU #: | 2450032 |
| Coil Power Rating: | 0.8 W |
| Coil Voltage: | 48 to 130 V AC/DC, 48 to 130 VAC/VDC |
| Contact Configuration: | 1NO-1NC/3NO |
| Contact Rating: | 10 A at 140 deg F Signalling Circuit, 25 A at 140 deg F Power Circuit |
| Dimensions: | 1.77 in W x 3.39 in D x 3.03 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 158 deg F |
| Series: | TeSys D |
| Terminal Type: | Screw Clamp |
| Wattage: | 1.56/0.2 W |
| Country of origin: | US |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606480987649 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$130.86 / Each
Quantity:
- Schneider Electric IEC Contactor, Series: TeSys D, 48 to 130 V AC/DC Coil, 9/25 A Maximum Load Current, 0.8 W Coil, 3 Poles, 25 to 400 Hz Frequency, 1.56/0.2 W Wattage, Mechanically Linked/Mirror Contact, 1NO-1NC/3NO Contact Configuration, 10 A at 140 deg F Signalling Circuit, 25 A at 140 deg F Power Circuit Contact, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -40 to 158 deg F Operating, DIN Rail/Surface Mounting, 1.77 in W x 3.39 in D x 3.03 in H Dimensions
LC1D09EHE Application
For resistive load motor control applicationsLC1D09EHE Item Features
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
LC1D09EHE Standards
CCC Certified|CSA C22.2 60947-4-1|DNV-GL Certified|EAC Certified|EN 60947-4-1/60947-5-1|Green Premium Listed|IEC 60947-4-1/60947-5-1|KC Compliant|LROS Certified|REACH Compliant|UL Listed|PROP65: This product can expose you to chemicals including, Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.SKU #2450032Part Number #LC1D09EHEUNSPSC39121529UPC03606480987649
