Part Number # HP15P60
SKU # 2450065
Image Disclaimers Message
HP15P60

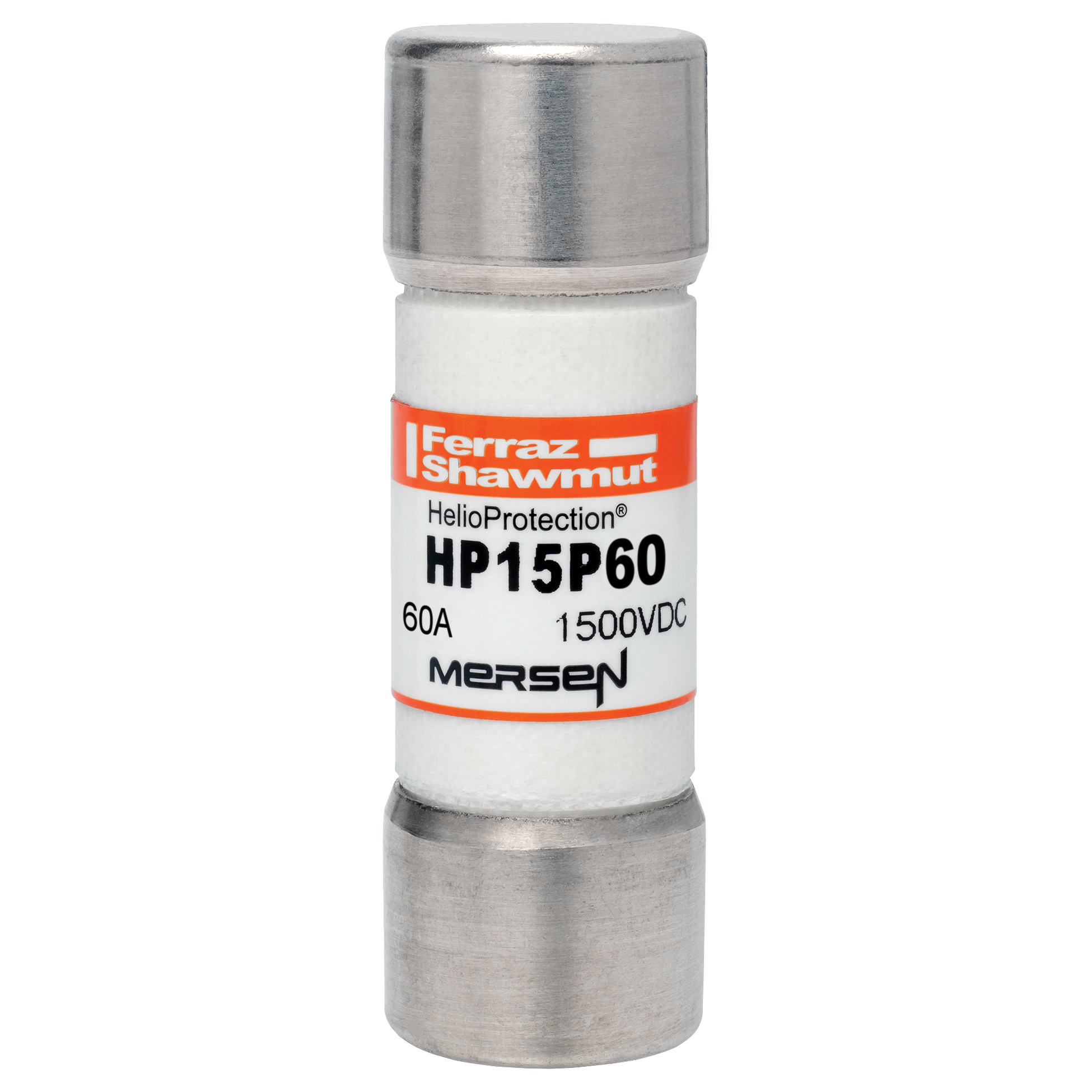

Mersen HP15P60
Part Number # HP15P60
SKU # 2450065
$2268.25 / 25Each
Typical price:$4180.70 / Each
Mersen HP15P60 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | HP15P60 |
| SKU #: | 2450065 |
| Amperage Rating: | 60 A |
| Class: | Photovoltaic |
| Interrupt Rating: | 50 kA |
| Series: | HP15P |
| Short Circuit Current Rating (kA): | 50 kA |
| Terminal Type: | Ferrule |
| Type: | Type gPV |
| Country of origin: | MX |
| Material: | GMG |
| Mounting type: | Clip |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121606 |
| UPC: | 00782001505462 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2268.25 / 25Each
Typical price:$4180.70 / Each
Quantity:
- Mersen, HP15P60, Fuse, Type gPV, Series: HP15P, 60 A, 1.5 kV DC, 50 kA Interrupt, Class: Photovoltaic, 50 kA Short Circuit, Ferrule Terminal, Clip Mounting, GMG, 65 mm L x 20 mm Dia Body
HP15P60 Application
For all photovoltaic applications, PV string/array level protection, Combiner box applications, In-line PV module protection, Inverters Battery charge controllersHP15P60 Item Features
- The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring
- Protect your off-grid or grid tied PV system from unexpected line faults using Mersens HelioProtection fuse line
- Low fault current interrupting capability
- Durable construction for enhanced system longevity
- Temperature and load cycling capability
HP15P60 Standards
UL Listed to Standard UL 248-19|CSA Component Certified C22.2|IEC 60269-6|UKCA|RoHS CompliantSKU #2450065Part Number #HP15P60UNSPSC39121606UPC00782001505462
