Part Number # 420MI7WLEV
SKU # 2450218
Image Disclaimers Message
420MI7WLEV

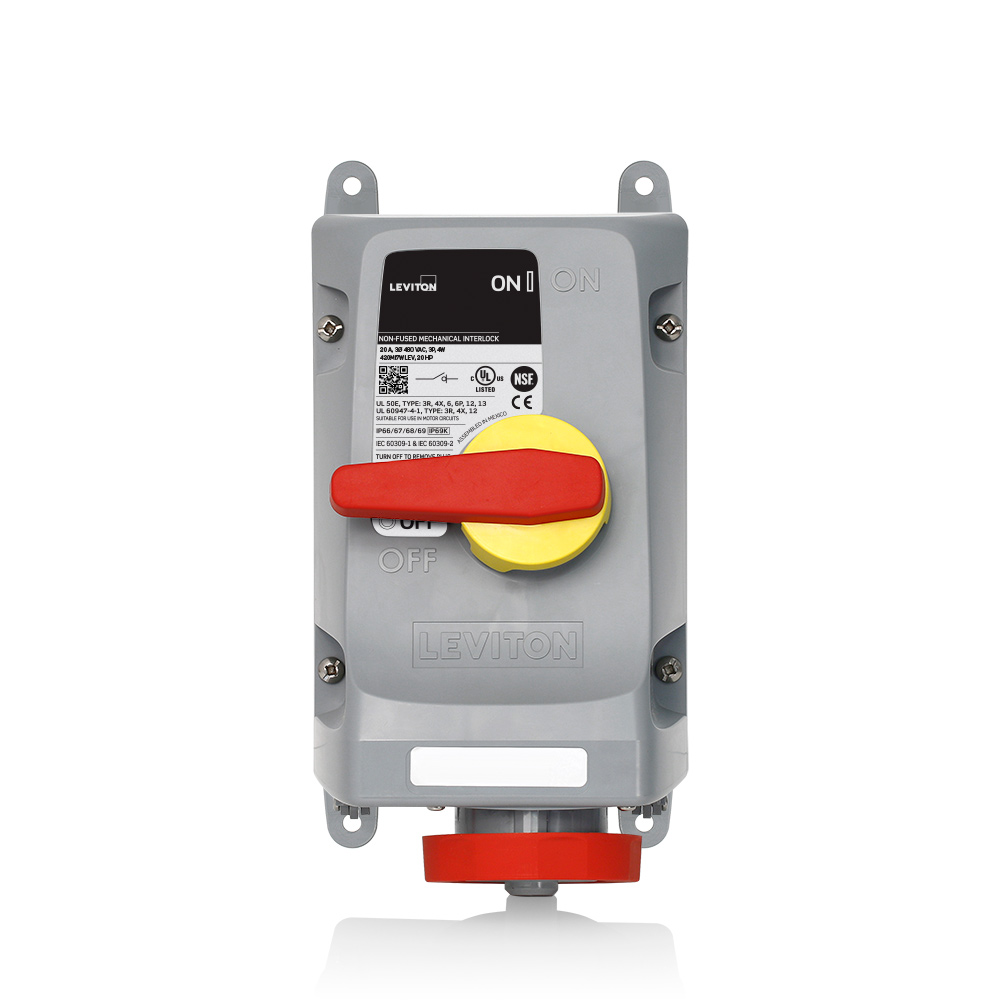

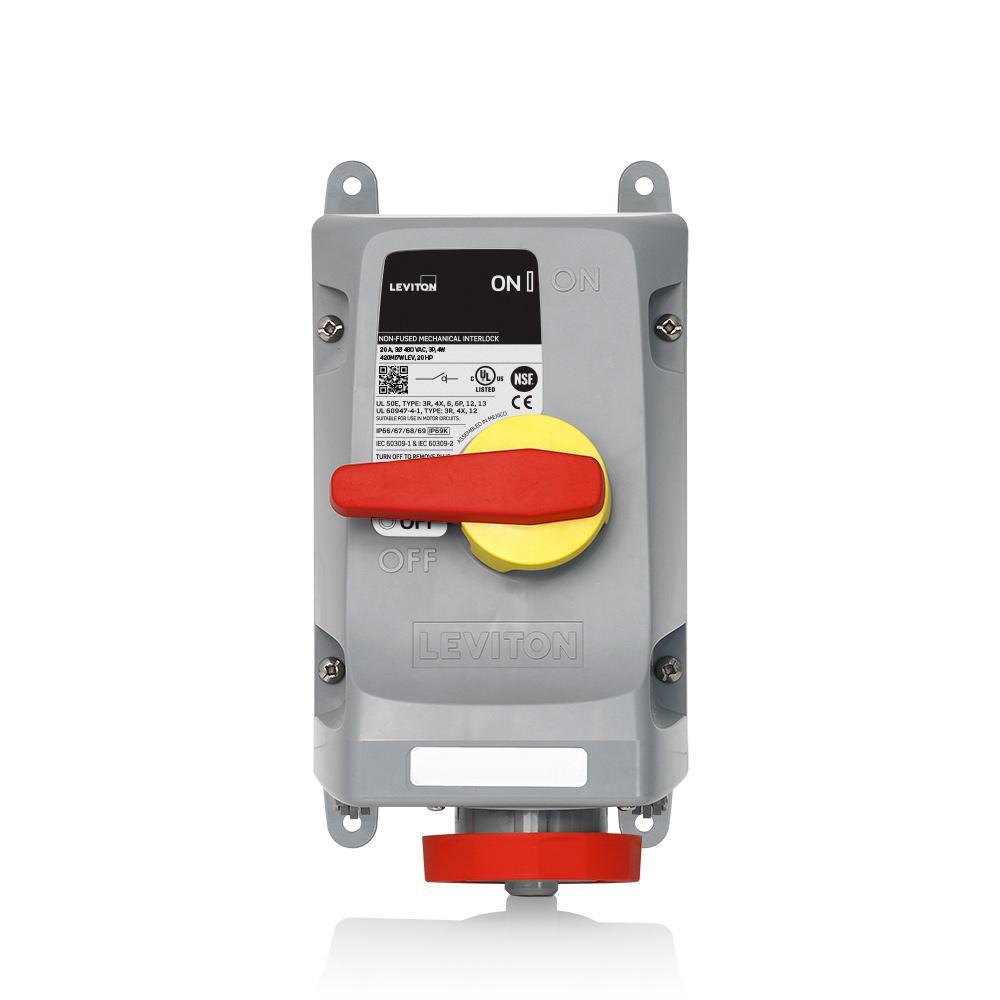

LEVITON 420MI7WLEV
Part Number # 420MI7WLEV
SKU # 2450218
$948.09 / Each
Typical price:$1683.15 / Each
LEVITON 420MI7WLEV Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 420MI7WLEV |
| SKU #: | 2450218 |
| Amperage Rating: | 20 A |
| Dimensions: | 11.42 in H x 8.86 in W x 8.29 in D |
| Enclosure Type: | NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K |
| Hub Size: | 1-1/4, 2 in |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Operating Temperature: | -40 to 75 deg C |
| Series: | LEV |
| Type: | Pin and Sleeve |
| Color: | Red |
| Connection type: | Wire |
| Country of origin: | MX |
| Material: | Nickel-Plated Brass/Chloroprene/ PBT+PC with TPE Overmold/Stainless Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121404 |
| UPC: | 00078477902042 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$948.09 / Each
Typical price:$1683.15 / Each
Quantity:
- Leviton, 420MI7WLEV, Non-Fused Mechanical Interlock, Pin and Sleeve, Series: LEV, 480 V AC, 20 A, 3 Pole, 4 Wires, 1-1/4, 2 in Hub, Wall Mounting, Wire Connection, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, -40 to 75 deg C Operating, Nickel-Plated Brass/Chloroprene/ PBT+PC with TPE Overmold/Stainless Steel, Red, 11.42 in H x 8.86 in W x 8.29 in D Dimensions
420MI7WLEV Application
For washdown/outdoor applications420MI7WLEV Item Features
- Impact-resistant, UV stable watertight enclosure ideal for use in harsh industrial environments
- Long length, overmolded handle provides an improved grip for safety
- Interlock mechanism made of aluminum and steel components (handle shaft and dowel pin, stop plate, interlock catch, latch spring, and coil spring) ensures dependable performance
- Embossed markings easily identify ON/OFF positions
- Cover is bottom hinged with captive screws for easy installation
- Mounting feet can be adjusted for several angles and provide 1/4 in standoff from surface for NEC 300.6 air space requirements, NSF certification and easy cleaning
- Available in multiple amperages, wiring configurations and clock positions for any application
420MI7WLEV Standards
NSF 14159-1|C22.2 No 94.1-07|IEC 60309-1|60309-2|60309-4|UL1682|UL1686|UL50|UL50E|UL60947-4-1|UL60947-1|UL746|RoHS CompliantSKU #2450218Part Number #420MI7WLEVUNSPSC39121404UPC00078477902042
