Part Number # 430MI7WLEV
SKU # 2450220
430MI7WLEV
LEVITON 430MI7WLEV
Part Number # 430MI7WLEV
SKU # 2450220
LEVITON 430MI7WLEV Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 430MI7WLEV |
| SKU #: | 2450220 |
| Amperage Rating: | 30 A |
| Dimensions: | 12.16 in H x 8.86 in W x 8.29 in D |
| Enclosure: | NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K |
| Mounting: | Threaded |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | LEV |
| Type: | Non-Fused Watertight |
| Country of origin: | MX |
| Material: | PBT/Polycarbonate |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121404 |
| UPC: | 00078477251447 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LEVITON 430MI7WLEV
Brand: LEVITON
Part Number: 430MI7WLEV

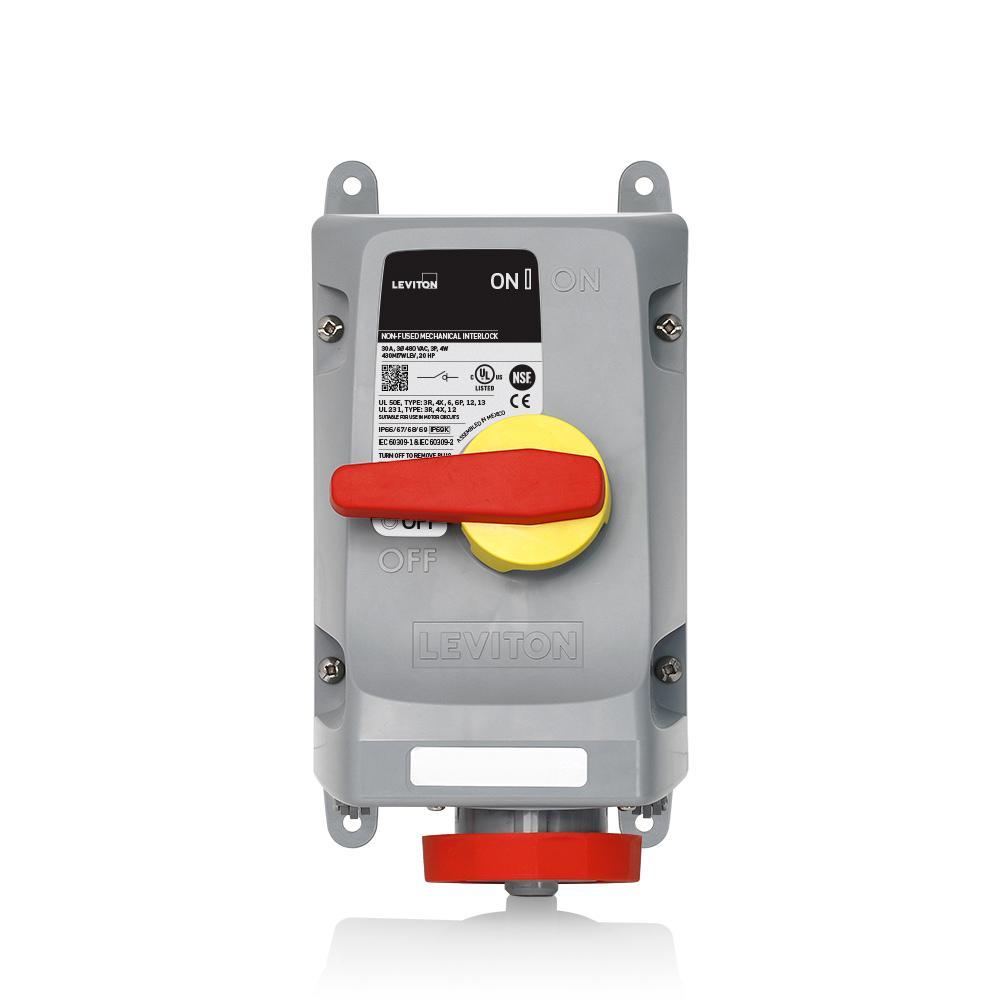

Leviton® Pin and Sleeve Mechanical Interlock, Non-Fused Watertight, Series: LEV, 480 VAC, 30 A, 20 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Red, 12.16 in H x 8.86 in W x 8.29 in D Dimensions
Additional Description: LVTN-430MI7WLEV 30A Mechanical Interlock - RED
Catalog Description: 30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused - Red
430MI7WLEV Application
Food and Beverage Facilities, Washdown and Outdoor Applications430MI7WLEV Item Features
- Designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Bottom hinged cover design makes installation and maintenance quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
430MI7WLEV Standards
CE Certified|CSA C22.2 No. 94.1-07|IEC 60309-1|IEC 60309-2|IEC 60309-4|UL 231|UL 1682|UL 1686|UL 50|UL 50E|UL 60947-4-1|UL 60947-1|UL 746|UL 94 V-0 Flammability RatingSKU #2450220Part Number #430MI7WLEVUNSPSC39121404UPC00078477251447
Image provided may only be a representation of final product and may include optional equipment
