Part Number # 430P7WLEV
SKU # 2450221
Image Disclaimers Message
430P7WLEV
LEVITON 430P7WLEV
Part Number # 430P7WLEV
SKU # 2450221
$244.15 / Each
Typical price:$330.48 / Each
LEVITON 430P7WLEV Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 430P7WLEV |
| SKU #: | 2450221 |
| Amperage Rating: | 30 A |
| Dimensions: | 3.62 in Dia x 6.57 in L |
| Enclosure: | IP66/IP67/IP68/IP69K |
| Horsepower: | 7-1/2 hp |
| NEMA Rating: | NEMA 3R/4X/6P/12 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | LEV |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Watertight |
| Color: | Red |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121404 |
| UPC: | 00078477921456 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$244.15 / Each
Typical price:$330.48 / Each
Quantity:

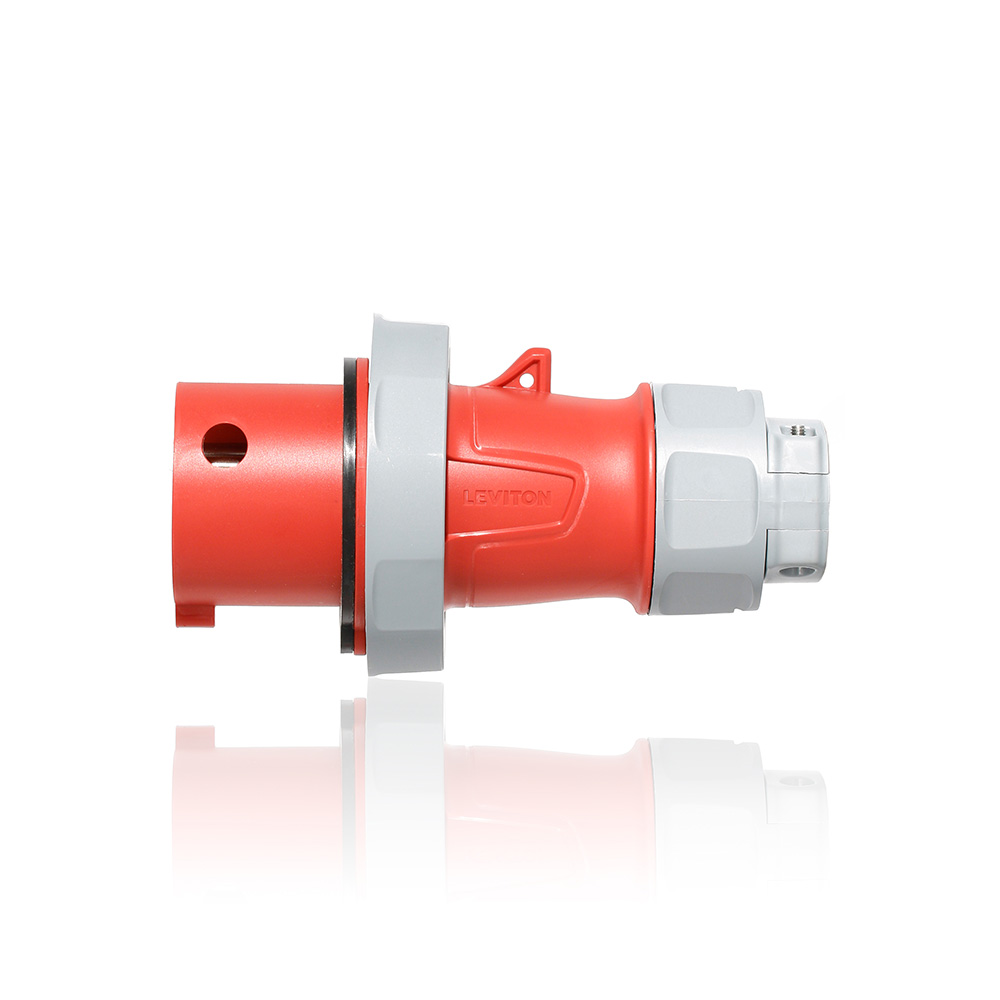

- Leviton Pin and Sleeve Plug, 3-Phase Watertight, Series: LEV, 480 V AC, 30 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Red, 3.62 in Dia x 6.57 in L Dimensions
430P7WLEV Application
Food and Beverage Facilities, Washdown and Outdoor Applications430P7WLEV Item Features
- Threaded housing design removes several screws making installation quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
- Nickel plated brass pins and sleeves for added corrosion-resistance
- Watertight and dust tight rated to IP66, IP67, IP68 and IP69K
- https://www.youtube.com/embed/w-VTJcLs1t0
430P7WLEV Standards
CE Certified|CSA C22.2 No. 182.1-13|NOM-ANCE Certified|UL 1686 C2|UL 1682|North American IEC 60309-1/60309-2|UL 94 V-0 Flammability Rating|UL 94 HB Flammability RatingSKU #2450221Part Number #430P7WLEVUNSPSC39121404UPC00078477921456
