Part Number # HU362DSWA
SKU # 2450329
Image Disclaimers Message
Brand: Square D
HU362DSWA

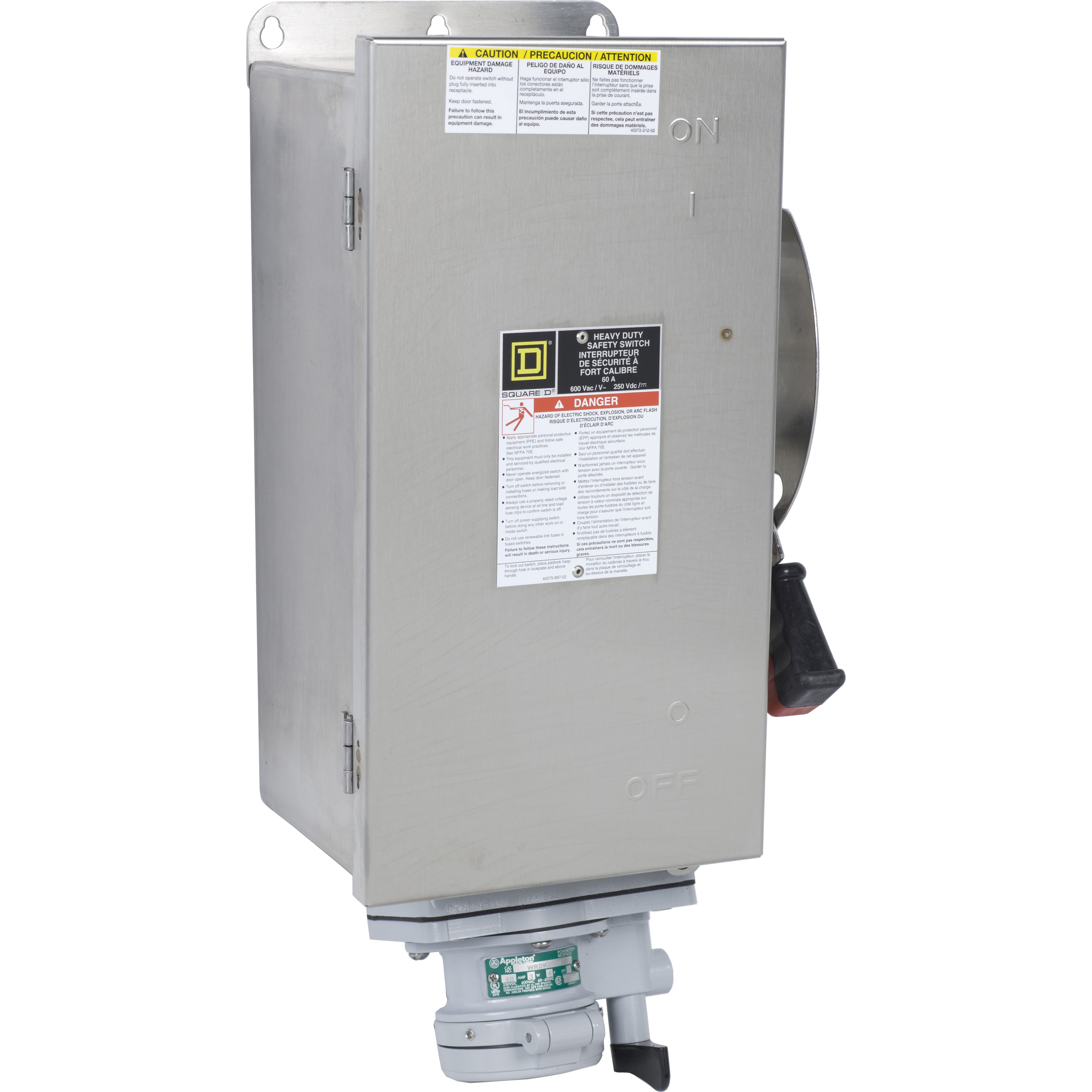

Square D HU362DSWA
Part Number # HU362DSWA
SKU # 2450329
$4197.88 / Each
Typical price:$4412.00 / Each
Square D HU362DSWA Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HU362DSWA |
| SKU #: | 2450329 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Contact Form: | Single Throw |
| Dimensions: | 16.87 in H x 10.81 in W x 5.11 in D |
| Enclosure Type: | NEMA 4/4X/5 |
| Horsepower: | 30 hp at 600 VAC 1-Phase, 60 hp at 600 VAC 3-Phase |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1/3 |
| Series: | F7 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Corrosion Resistant Dusttight Non-Fusible Watertight |
| Country of origin: | US |
| Material: | 304 Stainless Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122218 |
| UPC: | 00785901878278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4197.88 / Each
Typical price:$4412.00 / Each
Quantity:
Square D HU362DSWA
Brand: Square D
Part Number: HU362DSWA
Additional Description: SQD -HU362DSWA (N) SW NOT FUSIBLE HD 60A STAINLESS/RECEP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Safety switch, heavy duty, non fusible, 60A, 600VAC, 600VDC, 3 poles, 60hp, NEMA 4, 4X, 5, 304 steel, Appleton
HU362DSWA Application
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor ApplicationsHU362DSWA Item Features
- Visible blades for positive indication that switch is "OFF"
- Quick make/quick break operating mechanism
- Optional viewing window allows visual verification of blade position without opening door
- Red and black handle indicates the ON (red)/OFF (black) condition of the switch
- Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
- Handle lock-off provision for multiple padlocks "OFF" position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
- Spring reinforced plated copper fuse clips
HU362DSWA Standards
RoHS Compliant|Federal Specification WS-865c|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2450329Part Number #HU362DSWAUNSPSC39122218UPC00785901878278
