Part Number # L41802
SKU # 2450363
Image Disclaimers Message
Belden L41802 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | L41802 |
| SKU #: | 2450363 |
| Conductor Size: | 18 AWG |
| Conductor Type: | Annealed Bare Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 2 Pairs |
| Outside Diameter: | 0.373 in |
| Strands: | 7 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type TC Shielded |
| Insulation material: | PVC/Nylon |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

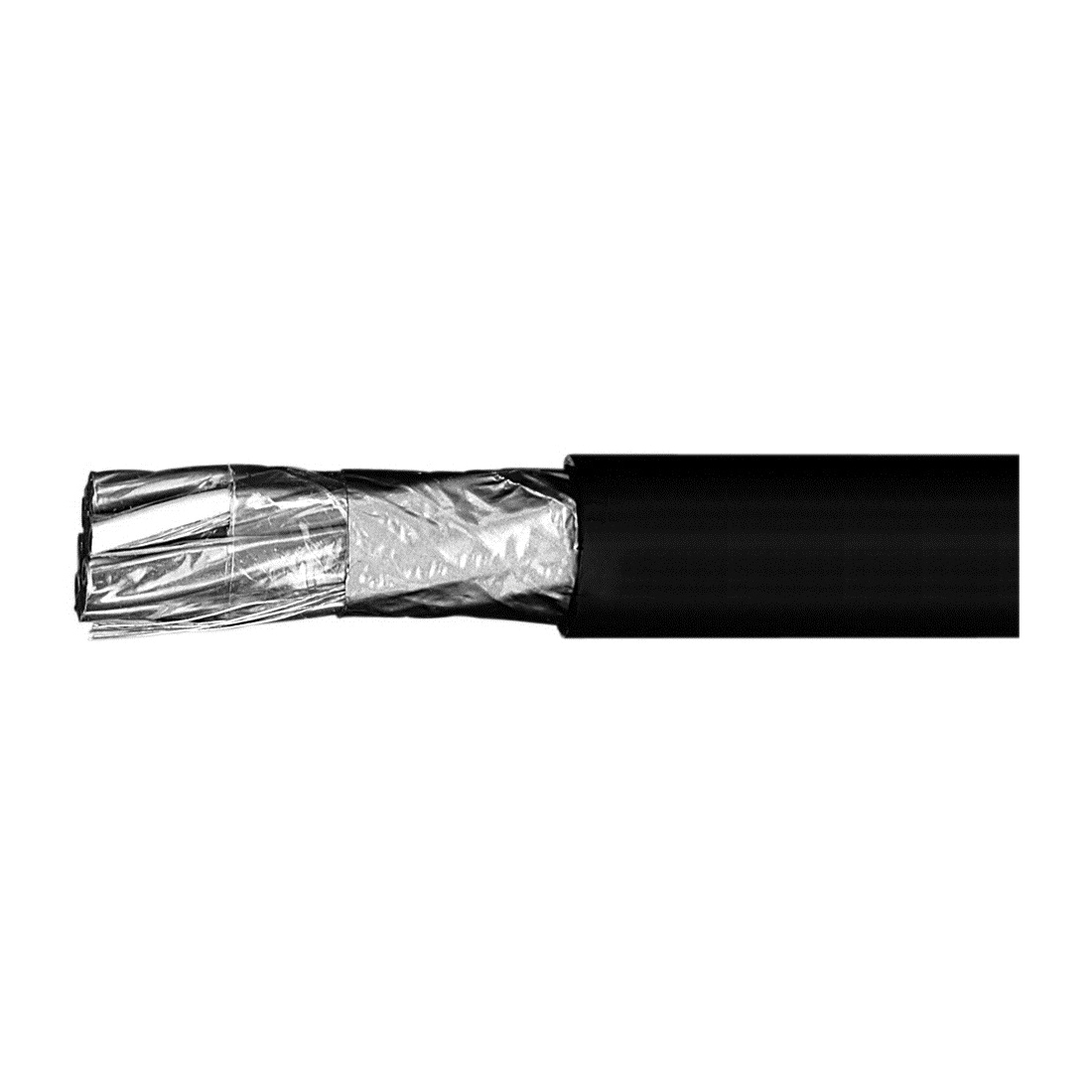

- Omni Cable VNTC Instrumentation Cable, Type TC Shielded, 600 V AC, 2 Pairs Conductors, Annealed Bare Copper Conductor, 18 AWG Conductor, 0.373 in OD, 7 Strands, PVC/Nylon Insulation, PVC Jacket, Black Jacket, 90 deg C
L41802 Application
For use in Class I Division II hazardous locations, direct burial applicationsL41802 Item Features
- Black and white numbered pairs of insulation
- 7 strands class B tinned copper drain wire
- 100% foil free edged aluminum mylar tape individual shield
- 100% aluminum Mylar tape overall shield
L41802 Standards
UL 1277|UL 1581|UL 1202 (FT-4)|ICEA T-29-520|ICEA S-73-532SKU #2450363Part Number #L41802UNSPSC26121629UPC
