Part Number # P3120-YB
SKU # 2450391
Image Disclaimers Message
Brand: LEVITON

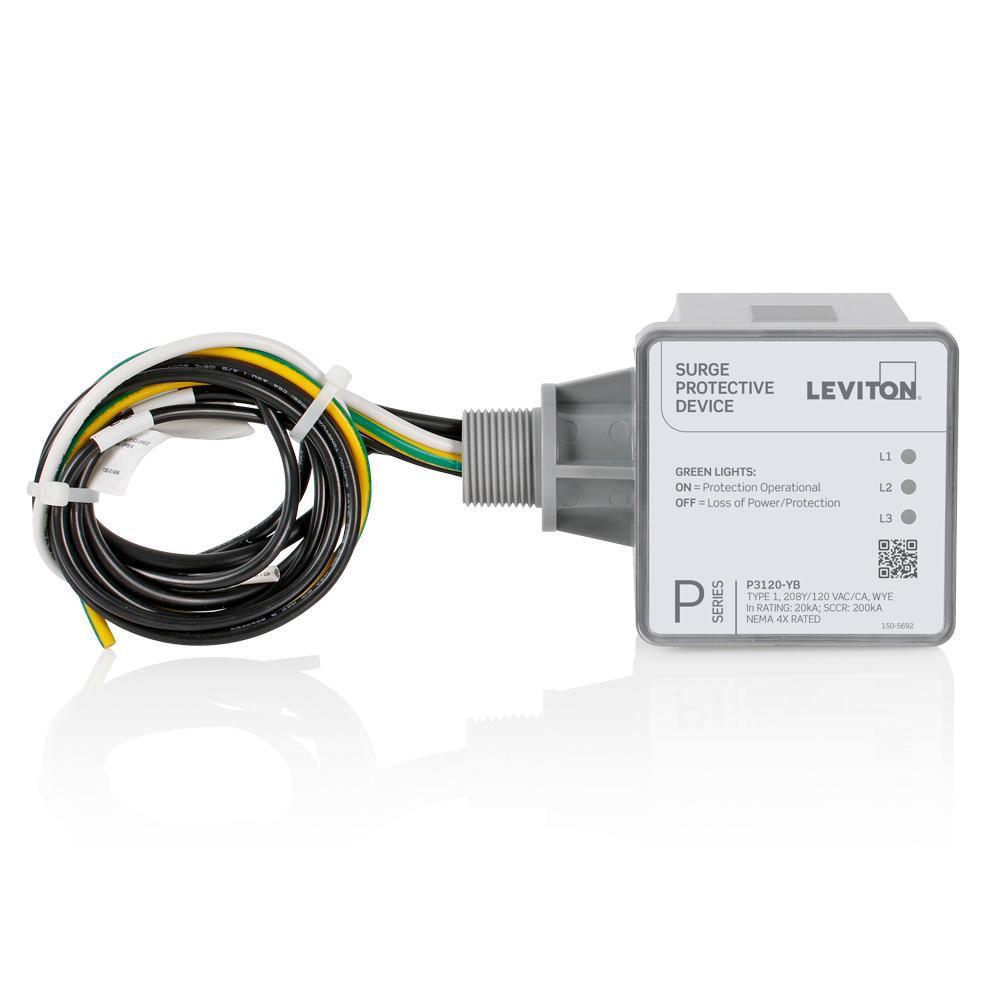

P3120-YB
LEVITON P3120-YB
Part Number # P3120-YB
SKU # 2450391
$19583.75 / 25Each
Typical price:$26509.50 / Each
LEVITON P3120-YB Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | P3120-YB |
| SKU #: | 2450391 |
| Dimensions: | 3.25 in H x 5.02 in W x 2.93 in D |
| Electrical Ratings: | 208Y/120 V AC, 208Y/120 VAC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | LED/Audible Alarm |
| Modes of Protection: | L-N/L-G/N-G |
| Peak Surge Current: | 25 kA |
| Phase: | 3 |
| Series: | P Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Type 1 |
| Wire Size: | 12 AWG |
| Color: | Gray |
| Country of origin: | GR |
| Material: | Polycarbonate |
| Mounting type: | Surface |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121610 |
| UPC: | 00078477000298 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19583.75 / 25Each
Typical price:$26509.50 / Each
Quantity:
- Leviton, P3120-YB, Surge Protective Device, Type 1, Series: P Series, 208Y/120 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 12 AWG Wire, 200 kA Short Circuit, 25 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G, LED/Audible Alarm Indicator, Environmental Conditions: -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Surface Mounting, 3.25 in H x 5.02 in W x 2.93 in D Dimensions, Polycarbonate, Gray
P3120-YB Application
Indoor, Outdoor, Residential and Light CommercialP3120-YB Item Features
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%, Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels, Higher values are better
- The maximum voltage a surge protector will let through to connected devices, Lower values are better
- The maximum current a device or system can safely withstand for a specified time or until a specified fuse or circuit breaker opens and clears the circuit
- Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV, A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
- A mode is a path that has an SPD component between two electrical points, More modes is better, 7-Mode example: L1-N, L2-N, L3-N, L1-G, L2-G, L3-G, N-G
P3120-YB Standards
ANSI/IEEE C-62.41.1-2002/C-62.41.2-2002/C-62.45-2002 Specified|CSA C22.2 No. 269.1-17, 2017-02 Certified|NEC 285 Certified|Reach Compliant|RoHS Compliant|UL 1449 5th Edition: 2021 Listed|cULus Listed|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harmSKU #2450391Part Number #P3120-YBUNSPSC39121610UPC00078477000298
