Part Number # BMXAMO0802H
SKU # 2450425
Image Disclaimers Message
BMXAMO0802H

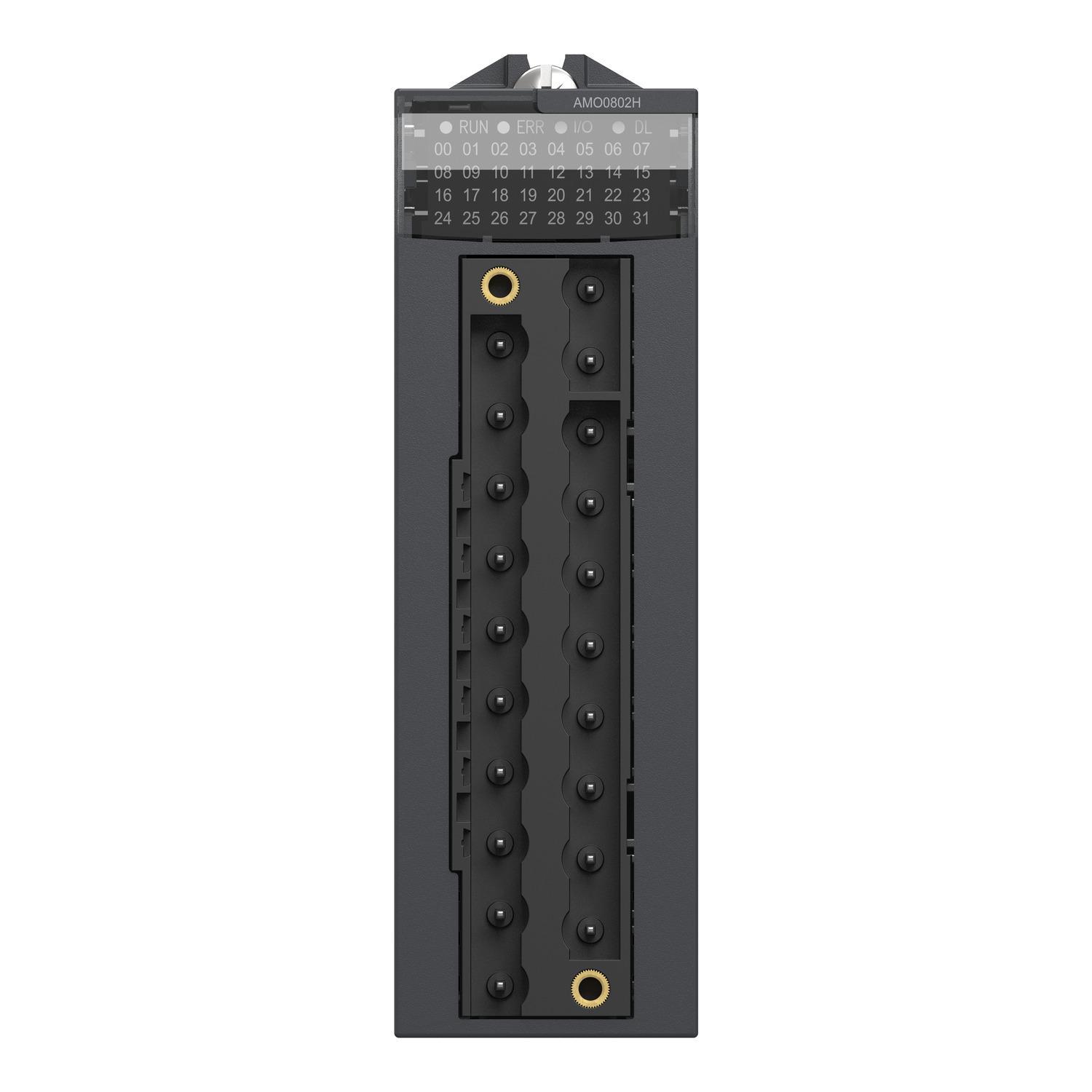

Schneider Electric BMXAMO0802H
Part Number # BMXAMO0802H
SKU # 2450425
$1930.12 / Each
Schneider Electric BMXAMO0802H Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BMXAMO0802H |
| SKU #: | 2450425 |
| Amperage Rating: | 4 to 20 mA/0 to 20 mA |
| Series: | X80 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Type: | Non-Isolated |
| Country of origin: | FR |
| Number of outputs: | 8 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151705 |
| UPC: | 03606489698645 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1930.12 / Each
Quantity:
- Schneider Electric Square D Analog Output Module, Non-Isolated, Series: X80, 8 Outputs, <=4 ms Conversion Rate, 4 to 20 mA, 0 to 20 mA, 0.35 W/0.48 W/3.6 W/3.9 W Power, -25 to 70 deg C
BMXAMO0802H Application
Water and Waste Water plants (WWTP Treatment Plant), Pumping, Desalination, Severe Environments, Consumer Packaged Goods (CPG), Food and Beverage (Dairy, Confectionary, Pet Food, Sugar, Grain), Life Sciences (Pharmatical), Household and Personal Care, Mining Metal Minerals, Mining Water Treatment, Cement, Conveyors, Hydro Power, Small/Medium/Large Plants, O and G Midstream, Pipelines, Transportation, Metro, Tunnels, Airports, OEM Process, Material Handling, Turbo Machinery, Process and Machine Safety functions like Emergency Shut Down, Fire and Gas, Burner or Boiler Management, Control Access for Safety Machines and Severe Environments ApplicationsBMXAMO0802H Item Features
- The X80 family incorporates the compatible modules common for M580 and M340 PLCs
- Innovative I/O, robust, compact and high quality
- Hot swap
- Most of modules exist in hardened version to better support harsh environment (dust, chemical, etc)
- Through EcoStruxure control expert
- With structured data (device DDT), simplifying diagnostics
- Using bit forcing to simplify simulation
- Sequence of event time stamped at source in a solution mode without program
BMXAMO0802H Standards
ATEX Certified|EAC Certified|EN 61131-2/61000-6-4/61000-6-2/61010-2-201|Green Premium Listed|IEC-Ex Certified|RCM Certified|REACH Compliant|RoHS Compliant|UL Listed|WEEE CertifiedSKU #2450425Part Number #BMXAMO0802HUNSPSC32151705UPC03606489698645
