Part Number # LV454443
SKU # 2450603
LV454443
Schneider Electric LV454443
Part Number # LV454443
SKU # 2450603
$682.89 / Each
Typical price:$1130.00 / Each
Schneider Electric LV454443 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LV454443 |
| SKU #: | 2450603 |
| Dimensions: | 90 mm H x 108 mm W x 67.5 mm D |
| Suitable For Use With: | Masterpact MTZ/MasterPact NT/Masterpact NW/ComPact NSX/ComPact NSX DC/ComPact NS630b...1600/ComPact NS1600b...3200/PowerPact H/PowerPact J/PowerPact L/PowerPact P/PowerPact R |
| Type: | External power supply module |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121004 |
| UPC: | 03606481190956 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$682.89 / Each
Typical price:$1130.00 / Each
Quantity:
Schneider Electric LV454443
Brand: Schneider Electric
Part Number: LV454443
Additional Description: SQD -LV454443 24VDC POWER SUPPLY AD MODULE 110/130 VAC
Catalog Description: External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A
LV454443 Item Features
- 93.5 to 143 V AC 47.5 to 63 Hz input voltage limits
- IV IEC 62477-1IV UL 61010-1 overvoltage category
- 1 A power supply output current
- 24 W rated power in w
- 85 % efficiency
- 4.2 W power dissipation in w
- >= 20 ms 110 to 130 V AC holding time
- 1.5 A 200 ms) permissible temporary current boost
- Horizontal operating position
- 0 to 6561.68 ft (0 to 2000 m) operating altitude
- Electrostatic discharges EN/IEC 61000-4-2Induced electromagnetic field EN/IEC 61000-4-6Magnetic field EN 61000-4-8Primary outage IEC 61000-4-29Radiated electromagnetic field EN/IEC 61000-4-3Rapid transient IEC 61000-4-4Surge EN/IEC 61000-4-5Radiated emissions EN 61000-6-3Conducted emissions on the power line EN 61000-6-3 name of test
- EMC EN/IEC 61000-6-2EMC EN/IEC 61000-6-3Safety IEC 62477-1Safety SELV environmental characteristic
- 3000 V between input and ground3000 V between input and output1500 V between output and ground dielectric strength
- CB_EXTERNAL_POWERSUPPLY compatibility code
- With toxic heavy metal free
LV454443 Standards
UL|61010-1IEC 62477-1SKU #2450603Part Number #LV454443UNSPSC39121004UPC03606481190956

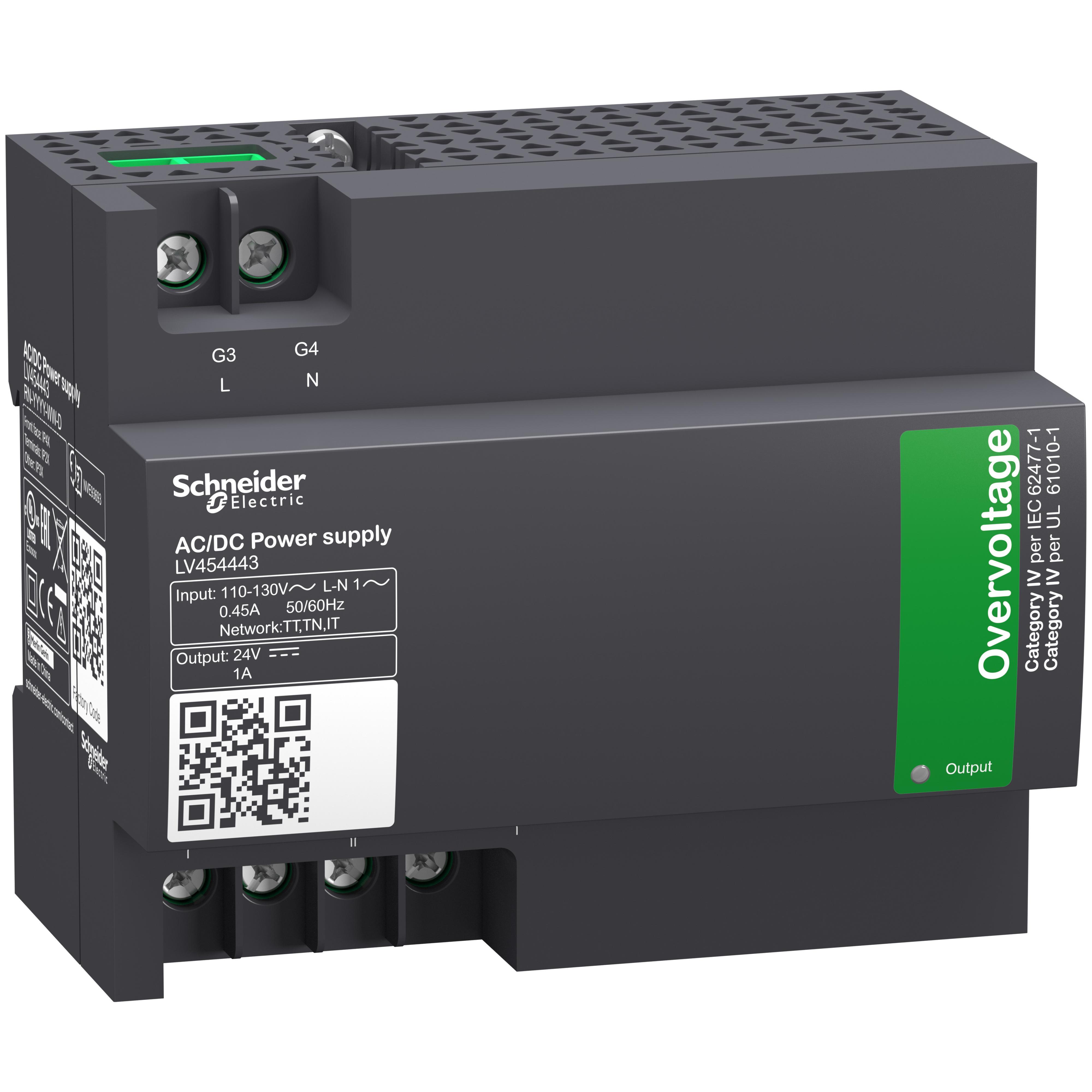

Image provided may only be a representation of final product and may include optional equipment
