Part Number # 859-314
SKU # 2450626
Wago 859-314 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 859-314 |
| SKU #: | 2450626 |
| Dimensions: | 3.583 in H x 0.236 in W x 2.205 in D |
| Enclosure Type: | IP20 |
| Indicator: | Red LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143603508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.29 / Each
Quantity:
Wago 859-314
Brand: Wago
Part Number: 859-314
Additional Description: WAGO-859-314 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VDC; 1 CHANGEOVER CONTACT; WITH GOLD CONTACTS; RED STATUS INDICATOR; MODULE WIDTH: 6 MM; 2,50 MM ; GRAY 60335533
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; with gold contacts; Red status indicator; Module width: 6 mm; 2,50 mm²; gray
859-314 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508|DNV|RoHS Compliant|IP20SKU #2450626Part Number #859-314UNSPSC39121410UPC04055143603508

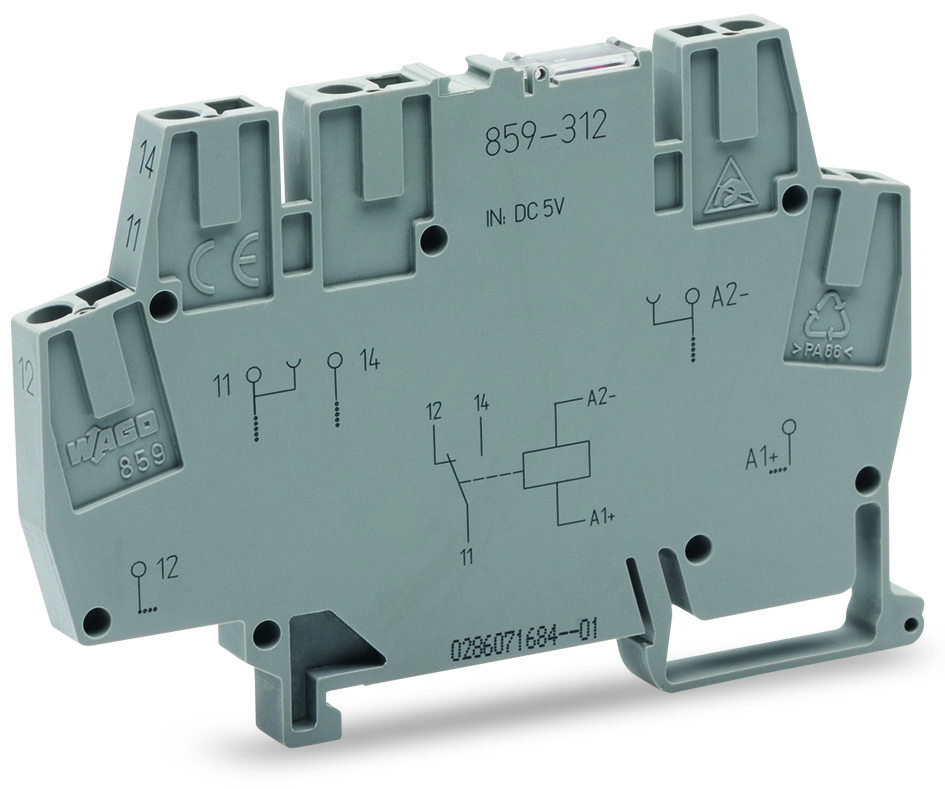

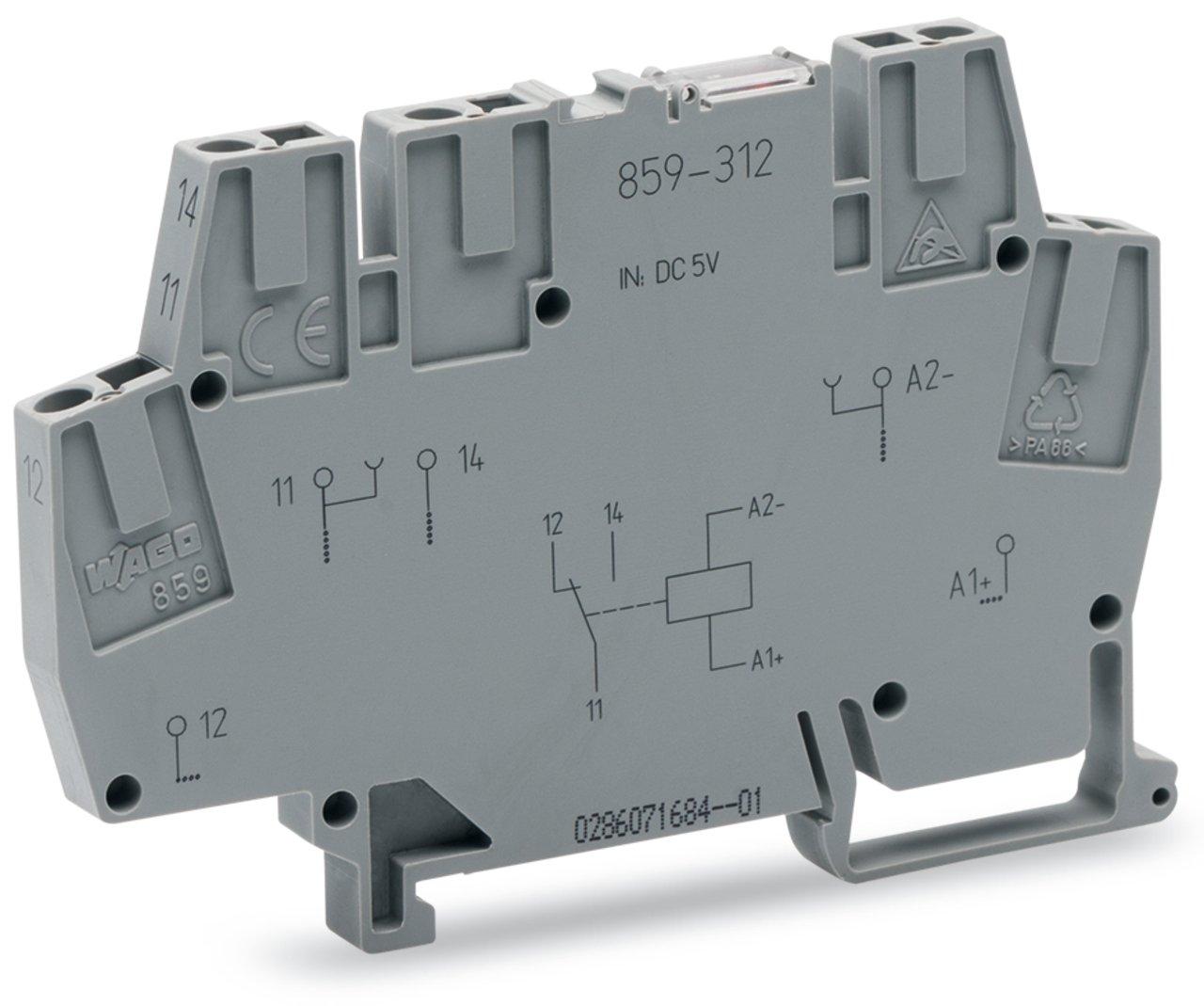

Image provided may only be a representation of final product and may include optional equipment
