Part Number # LC1D115ABNE
SKU # 2450652
Image Disclaimers Message
Brand: Schneider Electric
LC1D115ABNE

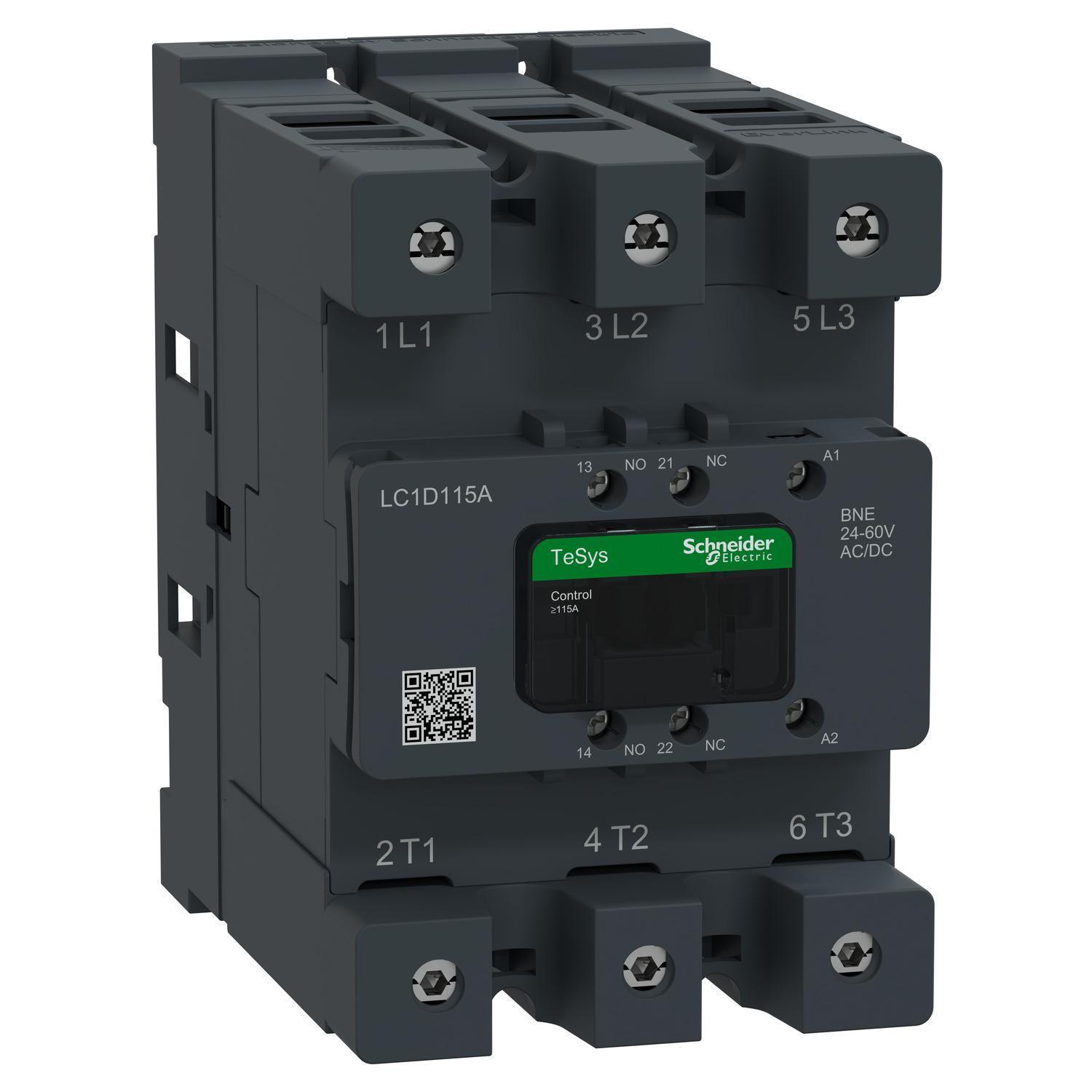

Schneider Electric LC1D115ABNE
Part Number # LC1D115ABNE
SKU # 2450652
$622.08 / Each
Schneider Electric LC1D115ABNE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D115ABNE |
| SKU #: | 2450652 |
| Coil Power Rating: | 30 hp at 200/208 V/40 hp at 230/240 V/75 hp at 460/480 V/100 hp at 575/600 V |
| Coil Voltage: | 200 to 500 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 152 mm H x 97 mm W x 155 mm D |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO+1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Series: | TeSys |
| Terminal Type: | Screw Clamp |
| Wattage: | 6 W |
| Connection type: | Screw |
| Mounting type: | Plate |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606486976951 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$622.08 / Each
Quantity:
- Schneider Electric, LC1D115ABNE, Contactor, Series: Tesys, 200 to 500 VAC/VDC Coil, 115 A Maximum Load Current, 30 hp at 200/208 V/40 hp at 230/240 V/75 hp at 460/480 V/100 hp at 575/600 V Coil, 3 Pole, 50/60 Hz Frequency, 6 W Wattage, 3NO Contact Configuration, 1NO+1NC Auxiliary Contacts, Screw Clamp Terminal, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, Plate Mounting, 152 mm H x 97 mm W x 155 mm D Dimensions
LC1D115ABNE Application
Designed for demanding applications with improved performance under harsh environment including salt-mist, dust and high shockLC1D115ABNE Item Features
- Efficient solution combining robustness with ease of use, ensuring customers experience reliability without complexity
- Electronic wide-band coil withstands voltage fluctuations allows quick coil operating frequency and ensures long uptime
- Sustainability is advanced with 50 Percent coil inrush savings
- Compact size with robust EverLink power connection improves operational efficiency and eliminates future maintenance
- Unique QR code supports quick access to product data, anti-counterfeit checking and digital assets
LC1D115ABNE Standards
CSA C22.2 No 60947-4-1|EN/IEC 60947-4-1|CSA C22.2 No 60947-5-1|UL 60947-4-1|GB/T 14048.4|JIS C8201-5-1|GB/T 14048.5|EN/IEC 60947-5-1|JIS C8201-4-1|UL 60947-5-1SKU #2450652Part Number #LC1D115ABNEUNSPSC39121529UPC03606486976951
