Part Number # MH30703P01A2200
SKU # 2451434
Image Disclaimers Message
MH30703P01A2200

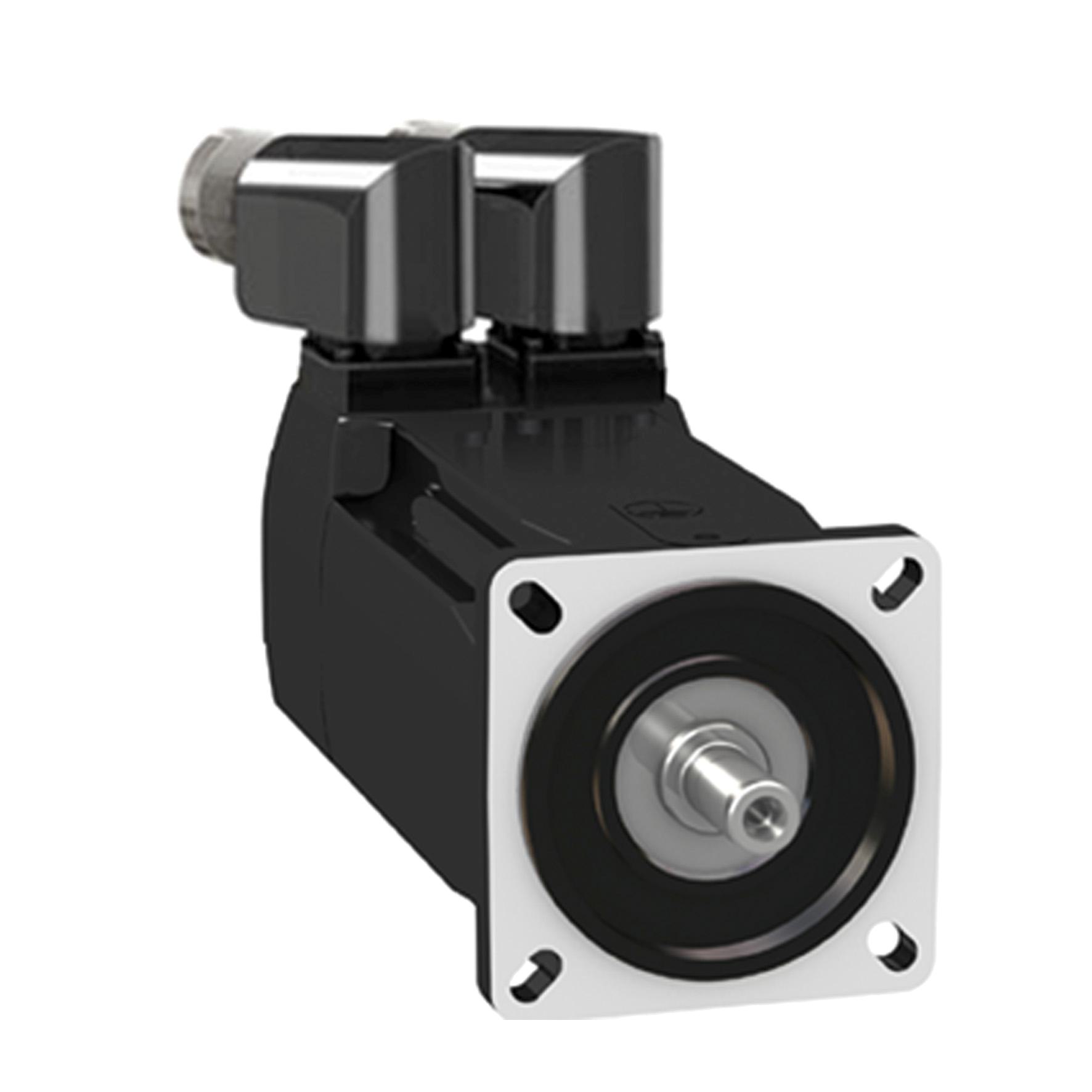

Schneider Electric MH30703P01A2200
Part Number # MH30703P01A2200
SKU # 2451434
$1659.38 / Each
Schneider Electric MH30703P01A2200 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | MH30703P01A2200 |
| SKU #: | 2451434 |
| Amperage Rating: | 12.57 A |
| Dimensions: | 2.76 in W x 7.32 in D x 4.31 in H |
| Enclosure Type: | IP65 |
| Horsepower: | 1.8 hp |
| Series: | MH3 070 |
| Shaft Size: | 0.55 in Dia x 1.18 in L |
| Special Features: | Synchronous Permanent Magnet AC Motors |
| Speed: | 8000 rpm |
| Temperature Rating (Degrees F): | -4 to 104 deg F |
| Torque Rating: | 28.15 to 20 in-lbf |
| Type: | 3-Phase Singleturn Smooth Shaft End Natural Convection |
| Country of origin: | US |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121021 |
| UPC: | 03606485395425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1659.38 / Each
Quantity:
Schneider Electric MH30703P01A2200
Brand: Schneider Electric
Part Number: MH30703P01A2200
Additional Description: SQD -MH30703P01A2200 MH3 MOTOR 070.3 sgl128 ang IP65
Catalog Description: servo motor MH3 070 3,1Nm,no key,single,no brake,IP65/IP67,6kRPM
MH30703P01A2200 Application
General Machine Control, Packaging Machine Automation and Handling ApplicationsMH30703P01A2200 Item Features
- Overload capacity - high peak current (up to 4X the continuous current)
- Increases the range of movement
- Power density - the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the Servo Motor has to be braked frequently
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Without holding brake and key
- 28.15 in-lbf at 115 V, 26.2 in-lbf at 230 V, 22.39 in-lbf at 400 V and 20 in-lbf at 480 V
MH30703P01A2200 Standards
CE Certified|EMC|ECCN: EAR99|Green Premium Listed|REACH Compliant|UL 1004|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2451434Part Number #MH30703P01A2200UNSPSC39121021UPC03606485395425
