Honeywell LSXC4L Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | LSXC4L |
| SKU #: | 2451442 |
| Action: | Snap |
| Actuator: | Plunger, Top Plunger |
| Amperage Rating: | 0.25 to 10 A |
| Contact Configuration: | 2NO-2NC DPDT, 2NO-2NC/DPDT |
| Enclosure Type: | NEMA 1/3/4/6/13/IP67 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Operating Temperature: | -12 to 121 deg C |
| Series: | LSX |
| Connection type: | 3/4-14 NPT |
| Country of origin: | US |
| Material: | Die Cast Zinc |
| Manufacturer Name: | Honeywell |
| UNSPSC: | MISC |
| UPC: | 00078454930132 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6144.90 / 10Each
Typical price:$6535.20 / Each
Quantity:

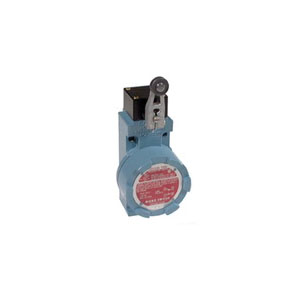

- Honeywell MICRO SWITCH Explosion-Proof Limit Switch, Series: LSX, 600 VAC/250 VDC, 0.25 to 10 A, 50/60 Hz Frequency, 2NO-2NC DPDT Contact Configuration, 2 Pole, Snap Action, Plunger Actuator, 3/4-14 NPT Connection, NEMA 1/3/4/6/13/IP67 Enclosure, -12 to 121 deg C Operating, Die Cast Zinc
LSXC4L Application
For control valves and actuators, petroleum plants, chemical plants, waste treatment and hazardous waste handlingLSXC4L Item Features
- Tracking interchangeability with micro switch ML-E1 and HDLS
- Variety of heads and non sparking actuators
- Field adjustability matches switch to application
- Momentary, maintained, sequential, or center neutral action
- 10 A continuous carry electrical rating
- Choice of silver or gold contacts
- 1/2 or 3/4 in conduit opening
- Internal grounding screw
- 17.79 N maximum operating force
- 0.51 mm maximum differential travel
- 1.78 mm maximum pretravel
- 4.83 mm minimum over trave
LSXC4L Standards
CSA Certified|UL ListedSKU #2451442Part Number #LSXC4LUNSPSCMISCUPC00078454930132
