Part Number # SSL1D03BDPV
SKU # 2451938
Image Disclaimers Message
SSL1D03BDPV

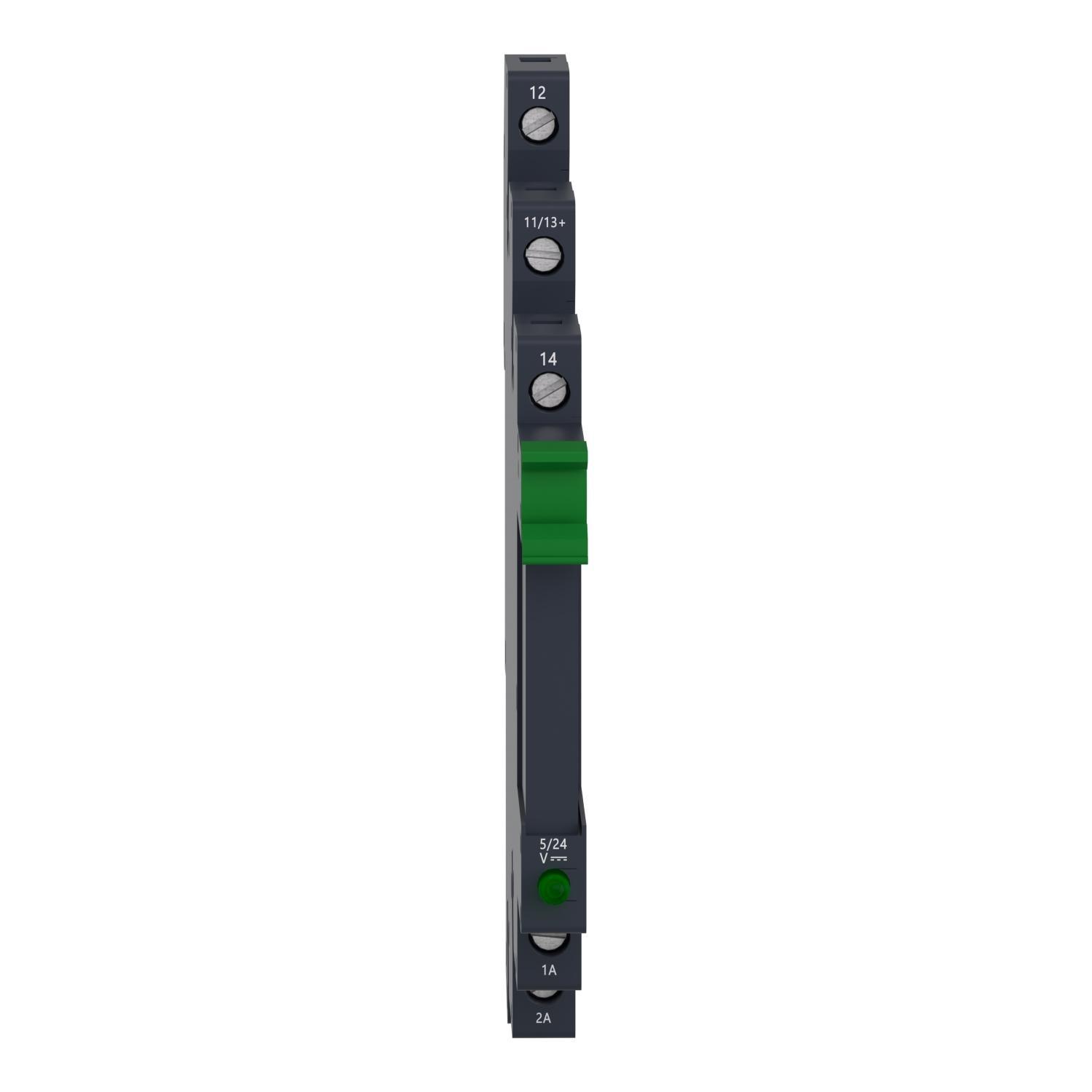

Schneider Electric SSL1D03BDPV
Part Number # SSL1D03BDPV
SKU # 2451938
$41.78 / Each
Schneider Electric SSL1D03BDPV Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SSL1D03BDPV |
| SKU #: | 2451938 |
| Amperage Rating: | 3.5 A |
| Coil Voltage: | 16 to 30 V DC, 16 to 30 VDC |
| Contact Form: | 1 NO, 1NO 1 Form A |
| Dimensions: | 3.80 in H x 0.24 in W x 3.13 in D |
| Enclosure Type: | IP20 |
| Series: | SSL Series |
| Temperature Rating (Degrees F): | -4 to 158 deg F |
| Terminal Type: | Flexible Cable |
| Type: | Solid State Relay |
| Country of origin: | ID |
| Mounting type: | Self-Tapping Screw |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122333 |
| UPC: | 03606489562977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.78 / Each
Quantity:
Schneider Electric SSL1D03BDPV
Brand: Schneider Electric
Part Number: SSL1D03BDPV
Additional Description: SQD -SSL1D03BDPV Comp relay DC scrw 16 30V-1 24V 3.5A
Catalog Description: pre assembled relay, Harmony Solid State Relays, 3.5A, DC switching, screw sockets, input 16 to 30V DC, output 1 to 24V DC
SSL1D03BDPV Application
For both AC and DC switching applications, For locking or releasing the relay, For packaging, HVAC, injection molding, textile machines, medical equipment, and heating controlSSL1D03BDPV Item Features
- Complete Solution - 1 & 3 Phase, Slim, modular DIN rail and panel mount offer
- Competitive & innovative solid-state switching solution
- Simplified - Easy product selection with consistent & easy to understand product nomenclature
- Enhanced product - improve end user experience
- 1 to 24 V DC output voltage
- < 0.5 N.m4.4 lb-in clamping force
- 1.5 pF input/output capacitance unbalance
- 2.67 kOhm input impedance
- 001 to 3.5 A load current
- 30 V DC tansient overvoltage
- 001 mA off-state maximum leakage current
- 0.25 ms (turn-on)0.12 ms (turn-off) response time
- III overvoltage category
- V0 conforming to UL 94 flame retardance
- 2500 V for input/output dielectric strength
SSL1D03BDPV Standards
PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 60950-1|IEC 61000|IEC 62314|IEC 61984|EN 61984|UL Listed|CSA|CE|UL 508|CSA22.2 No. 14-10|GOSTSKU #2451938Part Number #SSL1D03BDPVUNSPSC39122333UPC03606489562977
