Part Number # VH224NR
SKU # 2452078
Image Disclaimers Message
Brand: Square D
VH224NR

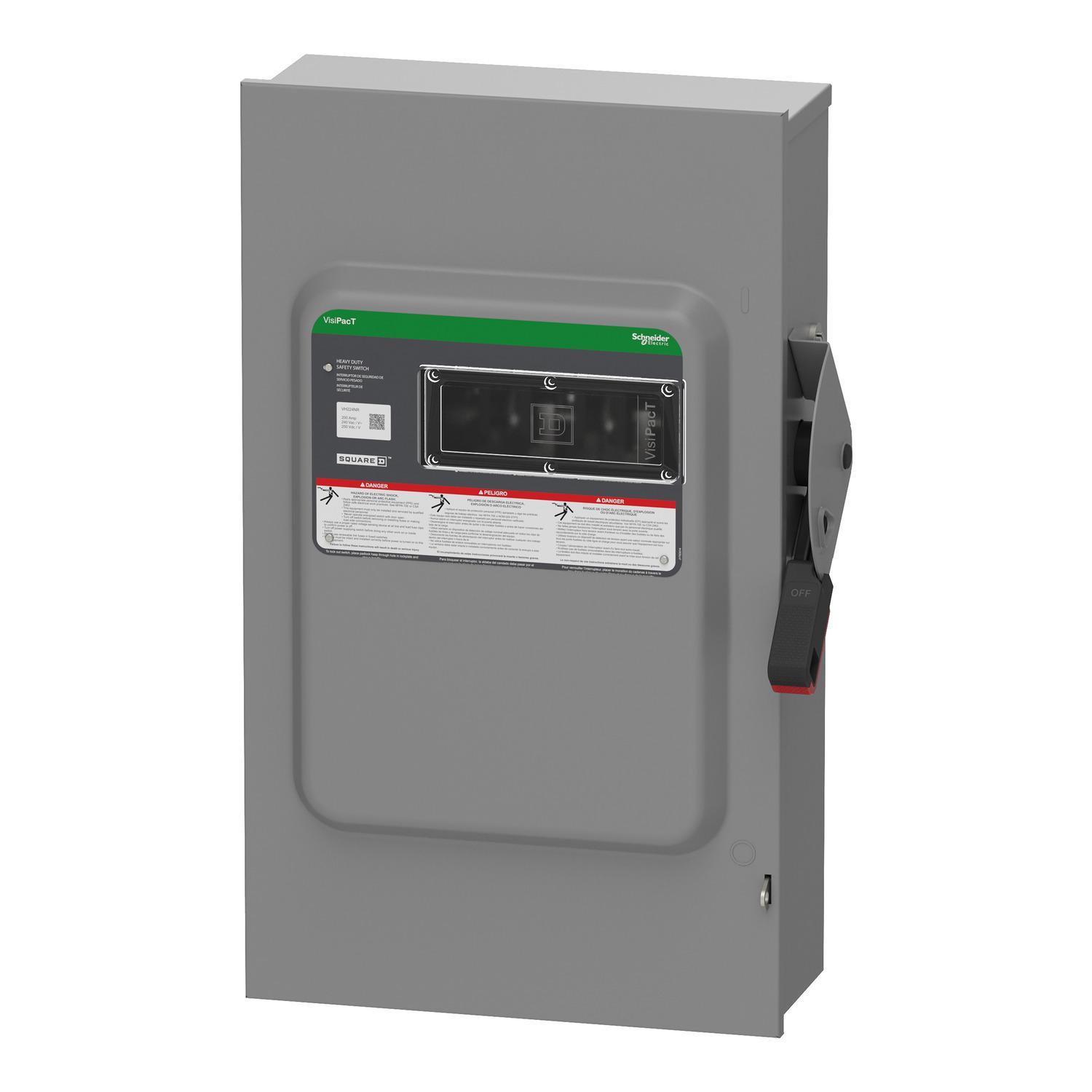

Square D VH224NR
Part Number # VH224NR
SKU # 2452078
$826.94 / Each
Typical price:$1562.00 / Each
Square D VH224NR Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | VH224NR |
| SKU #: | 2452078 |
| Actuator Type: | Handle |
| Amperage Rating: | 200 A |
| Contact Form: | Single Throw |
| Dimensions: | 19.38 in H x 17.016 in W x 8.506 in D |
| Enclosure Type: | NEMA 3R |
| Finish: | Galvannealed |
| Frequency Rating: | 50 to 60 Hz |
| Horsepower: | 15, 25, 40, 60 hp |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Phase: | 1, 3 |
| Short Circuit Current Rating (kA): | 10, 200 kA |
| Terminal Type: | Lug |
| Type: | Heavy Duty Fusible Disconnect |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 03606485893273 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$826.94 / Each
Typical price:$1562.00 / Each
Quantity:
Square D VH224NR
Brand: Square D
Part Number: VH224NR
Additional Description: SQD -VH224NR HDSS TYPE3R 240V 200 AMP 2 POLE Fuse
Catalog Description: Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 200A, 2 pole, neutral installed
VH224NR Application
Ideal for all your commercial and industrial needsVH224NR Item Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Visipact safety switches come with a viewing window for quick visual verification of switch position
- QR code allow quick access to critical ratings and other useful product documentation
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
VH224NR Standards
UL98/NEMA KS1 Standards|UL Files E2875/E154828SKU #2452078Part Number #VH224NRUNSPSC39122205UPC03606485893273
