Part Number # DPER365
SKU # 2452081
Image Disclaimers Message
DPER365

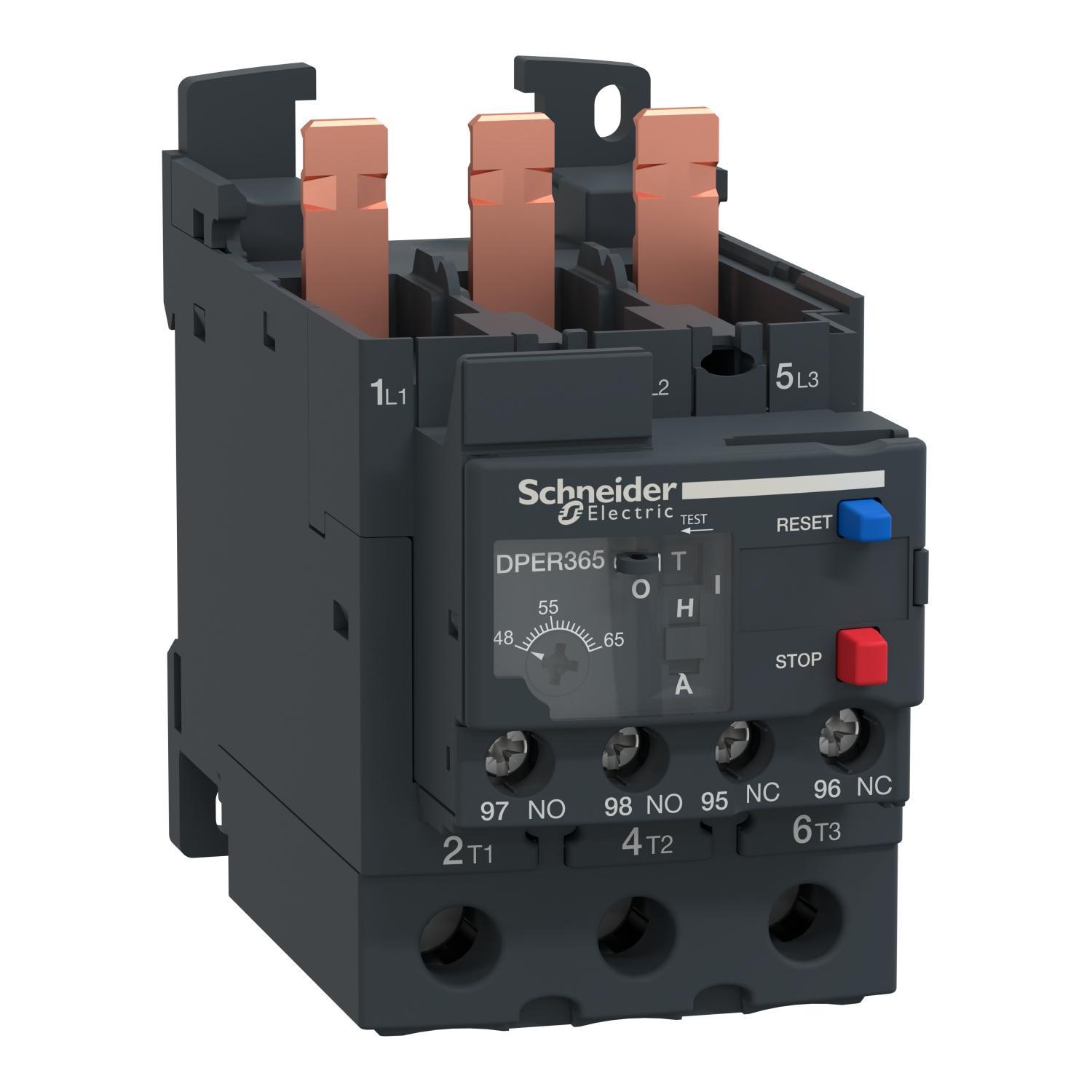

Schneider Electric DPER365
Part Number # DPER365
SKU # 2452081
$75.11 / Each
Schneider Electric DPER365 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | DPER365 |
| SKU #: | 2452081 |
| Amperage Rating: | 48 to 65 A |
| Coil Voltage: | 690 V |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 65 A at 690 V |
| Dimensions: | 2.76 in H x 2.17 in W x 4.84 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 0 to 400 Hz |
| Number of Poles: | 3 |
| Series: | DPER |
| Temperature Rating (Degrees F): | -4 to 140 deg F |
| Terminal Type: | Screw Clamp |
| Type: | Differential |
| Country of origin: | FR |
| Mounting type: | DIN Rail/Plate |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122330 |
| UPC: | 03606482465459 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$75.11 / Each
Quantity:
- Schneider Electric, DPER365, Thermal Overload Relay, Differential, Series: DPER, 48 to 65 A, 0 to 400 Hz Frequency, 690 V Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 65 A at 690 V Contact, 3 Pole, DIN Rail/Plate Mounting, Screw Clamp Terminal, IP20 Enclosure, -4 to 140 deg F, 2.76 in H x 2.17 in W x 4.84 in D Dimensions
DPER365 Item Features
- Simple to select and install at an optimized budget
- Reduced installation time
- Robust performance for common applications
DPER365 Standards
EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|EN 50495|cUL|Green Premium Compliant (RoHs/Reach)SKU #2452081Part Number #DPER365UNSPSC39122330UPC03606482465459
