Part Number # DPE50B7
SKU # 2452090
DPE50B7
Schneider Electric DPE50B7
Part Number # DPE50B7
SKU # 2452090
$95.00 / Each
Schneider Electric DPE50B7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | DPE50B7 |
| SKU #: | 2452090 |
| Coil Power Rating: | 30 hp at 480 V |
| Contact Configuration: | 3NO-1NO |
| Contact Rating: | 50 A at 480 V |
| Dimensions: | 4.80 in H x 2.17 in W x 4.80 in D |
| Series: | DPE |
| Wattage: | 3.7, 9.6 W |
| UNSPSC: | 39121529 |
| UPC: | 03606482465312 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.00 / Each
Quantity:
Schneider Electric DPE50B7
Brand: Schneider Electric
Part Number: DPE50B7
Additional Description: SQD -DPE50B7 IEC contactor,50A,30HP 480V, 24VAC
Catalog Description: IEC contactor,Easy TeSys DPE,nonreversing,50A,3P,30HP at 480V AC,24V AC 50/60Hz coil
DPE50B7 Application
For motor control applications up to 50A/690V AC-3 (30HP.480V)DPE50B7 Item Features
- DPE contactors can offer quick simple setup, while maintaining a compact size
- Simple to select and install at optimized budget
- Reduced installation time
- Flexibility to add motor disconnects to help met NEC requirements
- They are suitable for AC-1,AC-3 application
DPE50B7 Standards
Green Premium Compliant (RoHS/REACh)|CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 60947-4-1SKU #2452090Part Number #DPE50B7UNSPSC39121529UPC03606482465312

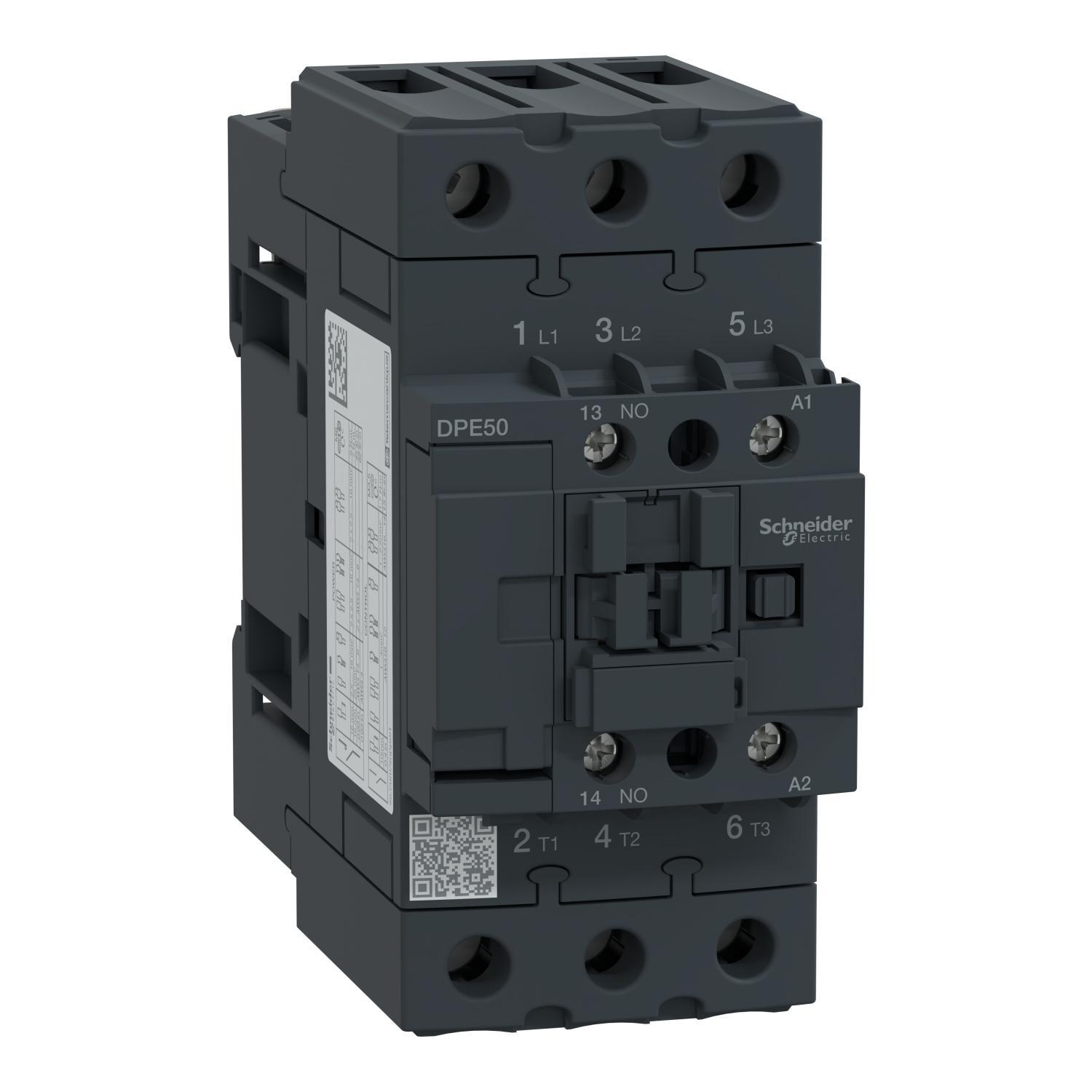

Image provided may only be a representation of final product and may include optional equipment
