Part Number # DPE40U7
SKU # 2452091
Image Disclaimers Message
DPE40U7

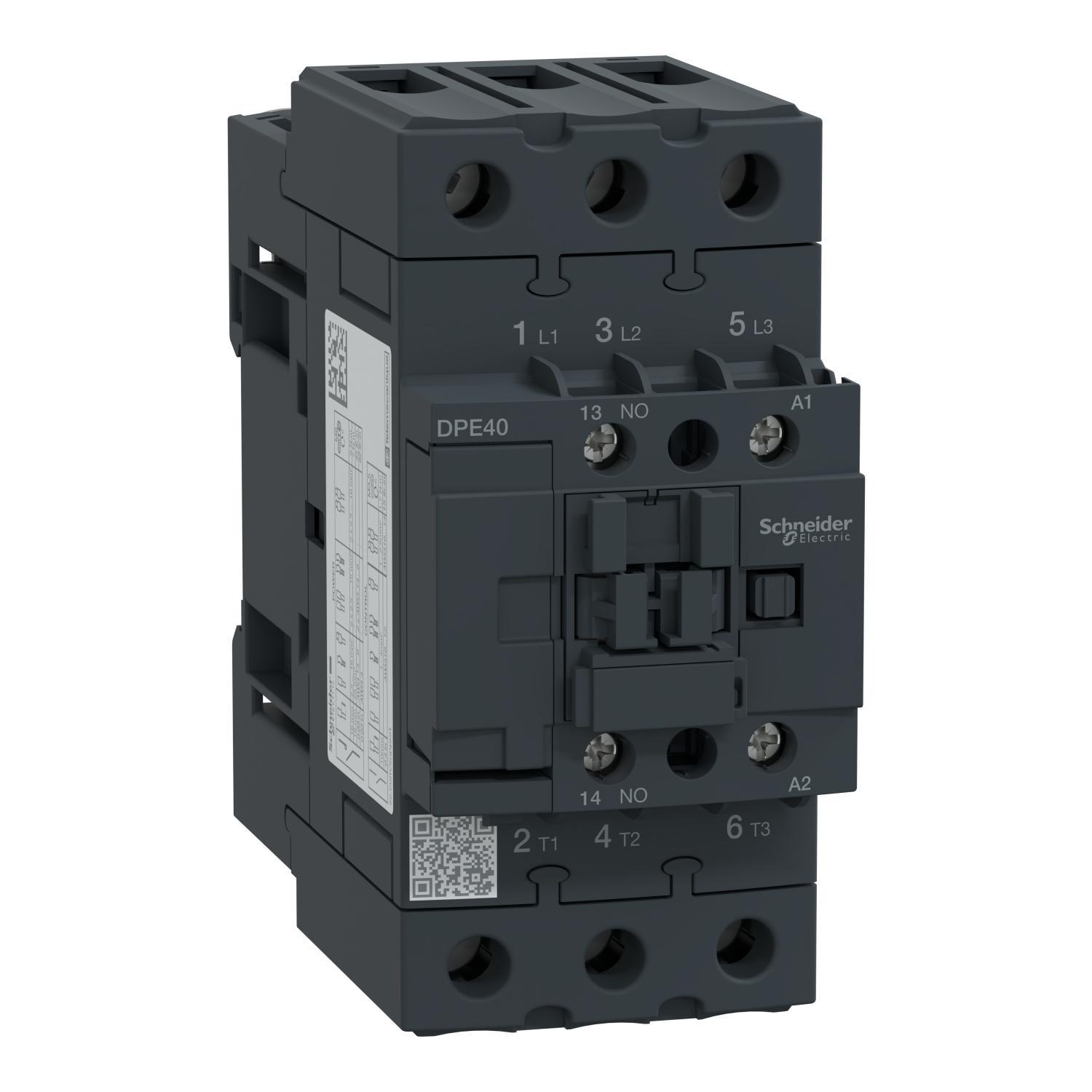

Schneider Electric DPE40U7
Part Number # DPE40U7
SKU # 2452091
$85.13 / Each
Schneider Electric DPE40U7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | DPE40U7 |
| SKU #: | 2452091 |
| Coil Power Rating: | 25 hp at 480 V |
| Coil Voltage: | 240 V AC, 240 VAC |
| Contact Configuration: | 3NO-1NO |
| Contact Rating: | 40 A at 480 V |
| Dimensions: | 4.80 in H x 2.17 in W x 4.80 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | DPE |
| Terminal Type: | Screw Clamp |
| Wattage: | 2.4, 5.4 W |
| Connection type: | Screw |
| Country of origin: | ID |
| Mounting type: | DIN Rail/Plate |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606482465282 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.13 / Each
Quantity:
- Schneider Electric, DPE40U7, Contactor, Series: DPE, 240 V AC Coil, 60 A Maximum Load Current, 25 hp at 480 V Coil, 3 Pole, 50/60 Hz Frequency, 2.4, 5.4 W Wattage, Non-Reversing Contact, 3NO-1NO Contact Configuration, 1NO Auxiliary Contacts, 40 A at 480 V Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 140 deg F Operating, DIN Rail/Plate Mounting, 4.80 in H x 2.17 in W x 4.80 in D Dimensions
DPE40U7 Application
For motor control applications up to 40A/690V AC-3 (25HP.480V)DPE40U7 Item Features
- Simple to select and install at optimized budget
- Reduced installation time
- Robust performance for common applications
- Flexibility to add motor disconnects to help meet NEC requirements
DPE40U7 Standards
Green Premium Compliant (RoHS/REACh)|CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 60947-4-1SKU #2452091Part Number #DPE40U7UNSPSC39121529UPC03606482465282
