Part Number # ATS480C79Y
SKU # 2452096
Image Disclaimers Message
ATS480C79Y

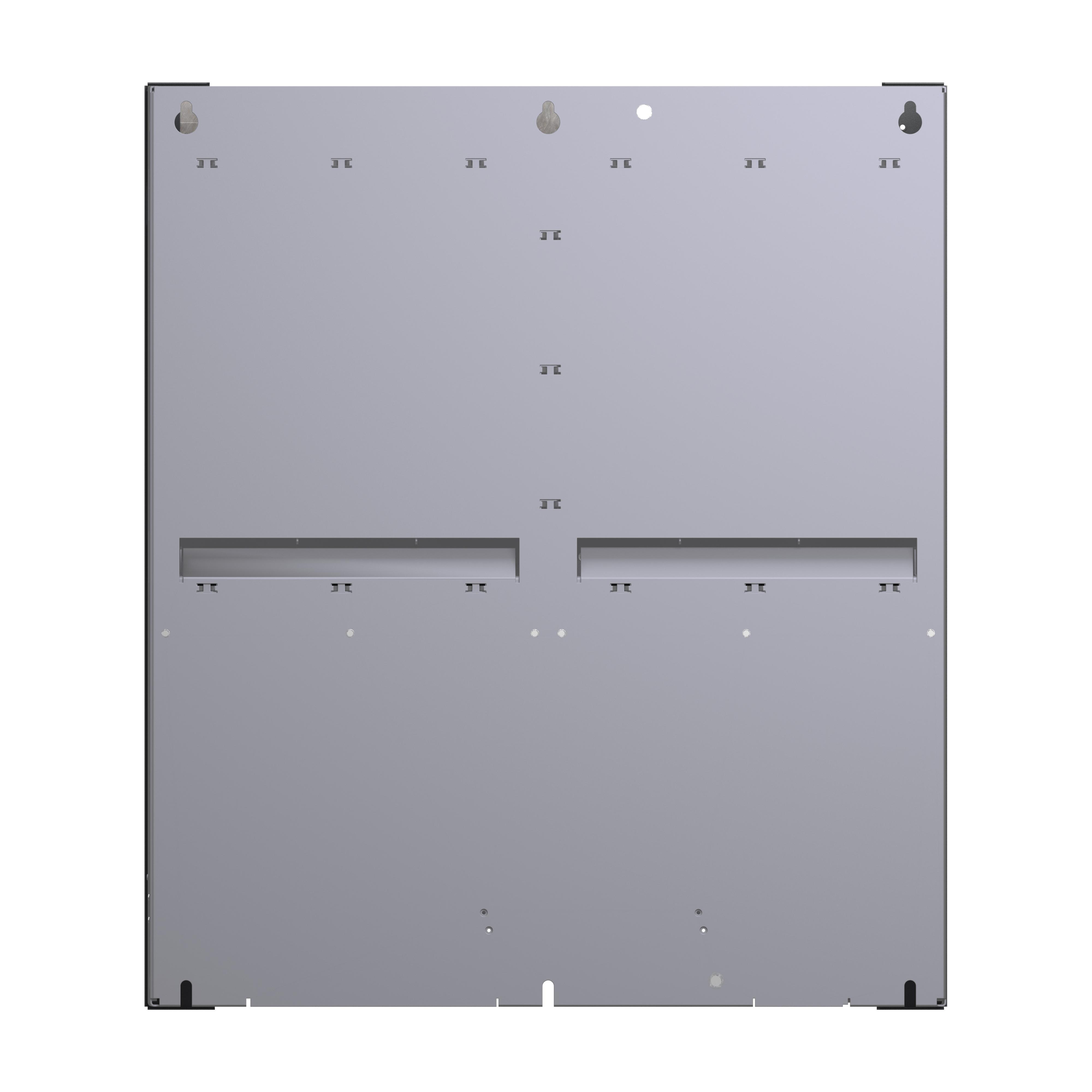

Schneider Electric ATS480C79Y
Part Number # ATS480C79Y
SKU # 2452096
$10734.48 / Each
Schneider Electric ATS480C79Y Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATS480C79Y |
| SKU #: | 2452096 |
| Amperage Rating: | 790 A |
| Coil Voltage: | 110 to 230 V AC, 110 to 230 VAC |
| Dimensions: | 35.04 in H x 30.31 in W x 12.95 in D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50 to 60 Hz |
| Motor Power: | 250, 300, 600, 800 hp |
| Operating Temperature: | 104 to 140 deg F |
| Phase: | 3 |
| Series: | ATS480 |
| Type: | External Bypass |
| Wattage: | 220 to 710 kW |
| Connection type: | RJ45 |
| Country of origin: | FR |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 03606481089175 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10734.48 / Each
Quantity:
- Schneider Electric, ATS480C79Y, Soft Starter, External Bypass, Series: ATS480, 208 to 690 V AC, 790 A, 50 to 60 Hz Frequency, 220 to 710 kW Wattage, 250, 300, 600, 800 hp Motor, 110 to 230 VAC Coil, 3 ph, RJ45 Connection, IP00 Enclosure, 104 to 140 deg F Operating, 35.04 in H x 30.31 in W x 12.95 in D Dimensions
ATS480C79Y Application
Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applicationsATS480C79Y Item Features
- Operating cycle, Normal duty and heavy duty
- Motor type, asynchronous motors, IE2 - IE3 - IE4 motors
- Motor Control, Torque Control (TCS), voltage control
- Current limitation 500% current rating (up 700% of the rated motor current)
- Dynamic braking
- DC injection
- Thermal protection, Electronic overload relay, with PTC, with PT100 2- or 3-wire
- Pre-heating
- Smoke extraction
- Multi-motor cascade
- 2nd motor set
- Cybersecurity compliant firmware upgrade
- Embedded Modbus serial
- Options, EtherNet/IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, PROFIBUS DP V1
- Highly robust and reliable even for the most demanding applications or in harsh environments
- Flexibility to improve the continuity of the service of your applications
- User account management to enforce authorization
- Enhanced cybersecurity features built-in to restrict or disable port and services
- Threat intelligence to generate security related reports
- Secure boot and firmware upgrade
ATS480C79Y Standards
RoHS|REACH|Marine certified DNV|ABS|EAC|cULus|CE|UKCA|CCC|IEC/EN60947-4-1|UL 60947-4-2|IEC 60664-1|IEC 61000-4-3|IEC 61000-4-5|IEC 61000-4-11|EN/IEC 61131-2|IEC 60664-1|IEC 61000-4-4|EN/IEC 60947-4-2|IEC 60947-4-2|EN/IEC 60068-2-3|IEC 61000-4-12|IEC 60721-3-3|IP00SKU #2452096Part Number #ATS480C79YUNSPSC39121521UPC03606481089175
