Part Number # 9AS3D24
SKU # 2452112

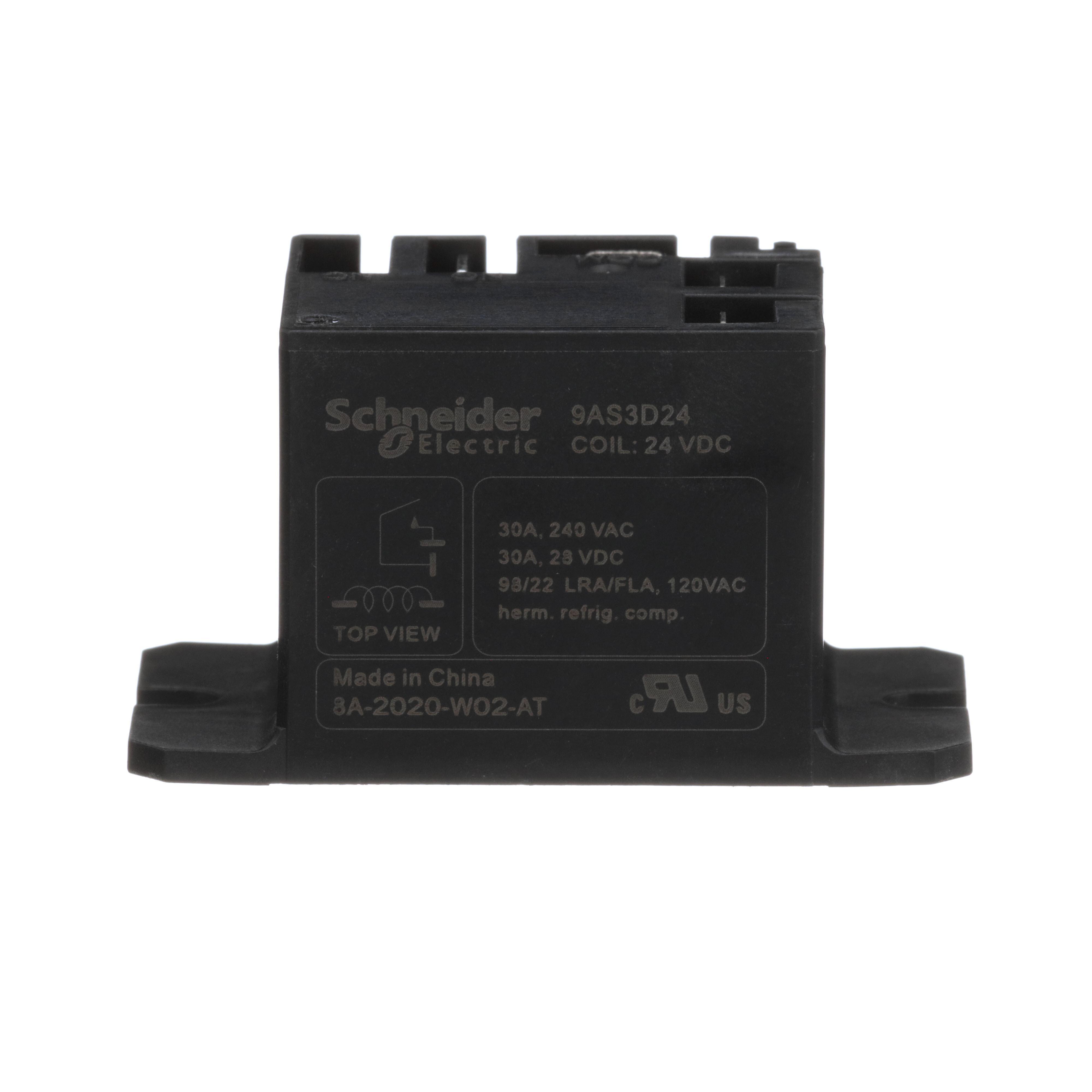

Image provided may only be a representation of
final product and may include optional equipment
9AS3D24
Schneider Electric 9AS3D24
Part Number # 9AS3D24
SKU # 2452112
$169.90 / 10Each
Typical price:$175.00 / Each
Schneider Electric 9AS3D24 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9AS3D24 |
| SKU #: | 2452112 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 1 Form A SPST, SPST 1 Form A |
| Dimensions: | 1.97 in H x 1.07 in W x 1.09 in D |
| Series: | W9A Series |
| Temperature Rating (Degrees F): | -40 to 40 deg F |
| Type: | Miniature |
| Country of origin: | CN |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901796299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$169.90 / 10Each
Typical price:$175.00 / Each
Quantity:
- Schneider Electric 9AS3D24, Miniature, W9A Series, 30 A, 24 V DC Coil, SPST (1 Form A) Contact Form, Flange Mounting, -40 to 40 deg F, 1.97 in H x 1.07 in W x 1.09 in D Dimensions
9AS3D24 Item Features
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 30 A load current
- Any position operating position
- 470 VA at 240 V on pilot duty rated power in va
- 1 hp at 125 V AC2 hp at 250 V AC rated power in hp
- 5 W at 1 A, 5 V DC12 VA at 1 A, 12 V AC minimum switching capacity
- 660 Ohm at 73 deg F (23 deg C) +/- 10 % average resistance
- >= 0.1 Uc drop-out voltage threshold
- 0.9 W average coil consumption
- 4 kV 1.2/50 s rated impulse withstand voltage
- 10000000 cycles mechanical durability
- 20 ms operate time
- 10 ms release time
9AS3D24 Standards
