Part Number # 750XCXRM4L-24A
SKU # 2452117
Image Disclaimers Message
750XCXRM4L-24A

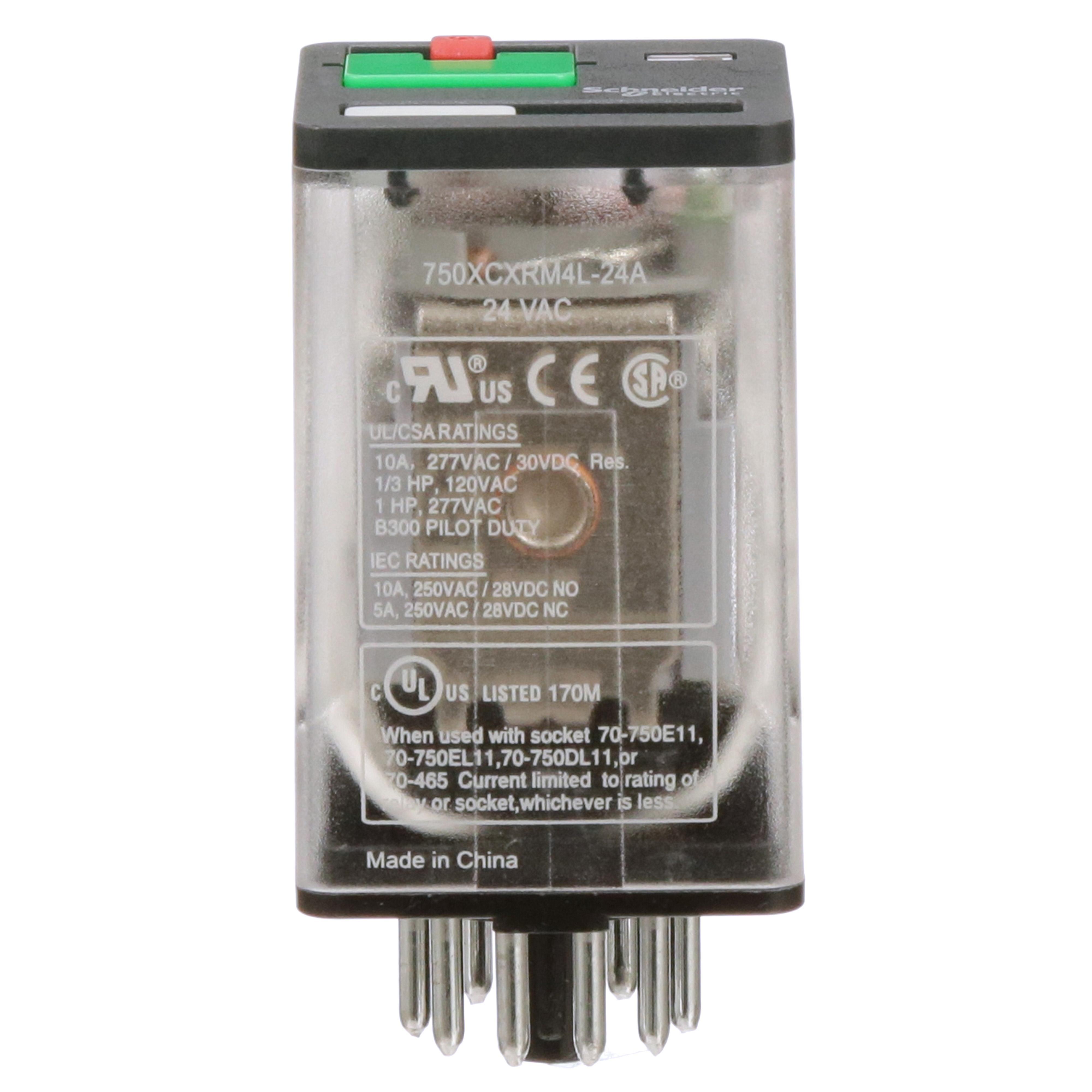

Schneider Electric 750XCXRM4L-24A
Part Number # 750XCXRM4L-24A
SKU # 2452117
$35.97 / Each
Schneider Electric 750XCXRM4L-24A Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 750XCXRM4L-24A |
| SKU #: | 2452117 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 VAC |
| Contact Form: | 3 Form C 3PDT, 3C (3PDT) |
| Dimensions: | 2.17 in H x 1.38 in W x 1.40 in D |
| Enclosure Type: | IP40 |
| Number of Pins: | 11 |
| Series: | 750 Series |
| Temperature Rating (Degrees F): | -40 to 131 deg F |
| Type: | General Purpose Relay |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122325 |
| UPC: | 03606480779596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.97 / Each
Quantity:
- Schneider Electric 750XCXRM4L-24A, General Purpose Relay, 750 Series, 10 A, 0.33 to 1 hp Power, 24 VAC Coil, 3PDT (3 Form C) Contact Form, 11 Pins, Panel Mounting, IP40 Enclosure, -40 to 131 deg F, 2.17 in H x 1.38 in W x 1.40 in D Dimensions
750XCXRM4L-24A Application
For automation panels and controls750XCXRM4L-24A Item Features
- Allows manual operation of relay (AC coils - red; DC coils - blue)
- LED indicator shows coil status
- Optional for full-feature or plain cover relays
- When activated, locks push-button and contacts in the powered position
- Flag indicator shows relay status in manual or powered condition
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Prevents premature oxidation and increases shelf-life
- Allows for easy removal of relay from socket
- Sockets available for most relays (with multiple options for some relays)
- Many plug-in relays feature a full range of contact ratings and a variety of covers and mounting options to meet a wide variety of applications
- Hermetically sealed relays also available
- Silver alloy, gold flashed contacts material
- 0.33 HP 120 V AC1 HP 277 V AC rated power in hp
- 72 Ohm resistance
- 3 VA average consumption
- 20 ms operating time
- >= 0.15 Uc AC>= 0.1 Uc DC drop-out voltage threshold
- 2.93 oz (83 g) product weight
750XCXRM4L-24A Standards
PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2452117Part Number #750XCXRM4L-24AUNSPSC39122325UPC03606480779596
