Part Number # 725BXXBM4L-24D
SKU # 2452121
Image Disclaimers Message
725BXXBM4L-24D

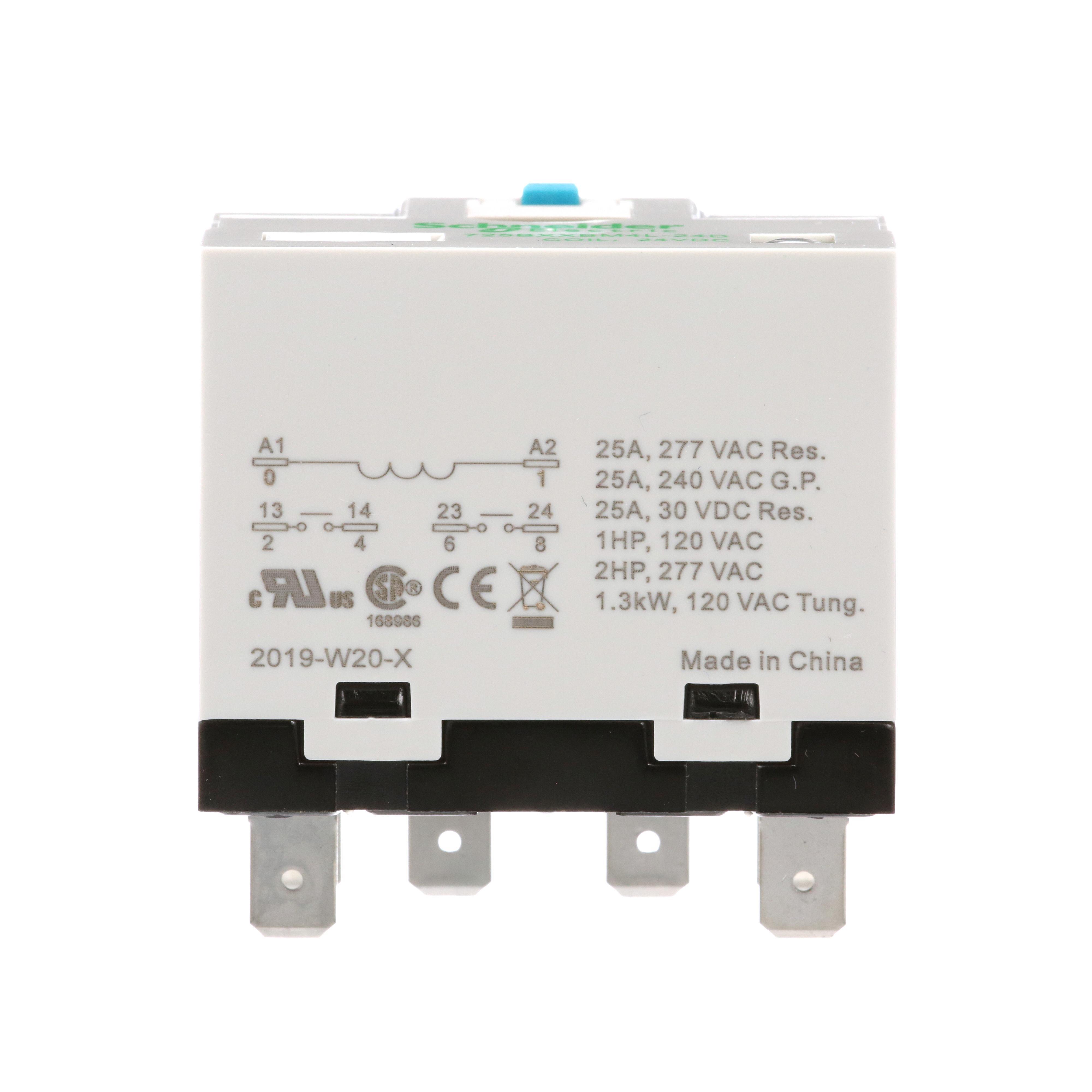

Schneider Electric 725BXXBM4L-24D
Part Number # 725BXXBM4L-24D
SKU # 2452121
$303.60 / 10Each
Schneider Electric 725BXXBM4L-24D Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 725BXXBM4L-24D |
| SKU #: | 2452121 |
| Amperage Rating: | 25 A |
| Coil Voltage: | 24 VDC |
| Contact Form: | 2NO, 2NO 2 Form A |
| Dimensions: | 1.97 in H x 1.3 in W x 2.09 in D |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Series: | 725 |
| Temperature Rating (Degrees F): | -4 to 131 deg F |
| Terminal Type: | Blade |
| Country of origin: | CN |
| Mounting type: | Plug-In/Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 03606480278983 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$303.60 / 10Each
Quantity:
- Schneider Electric, 725BXXBM4L-24D, Power Relay, Series: 725, 25 A, 1.3 kW Tungsten at 120 V, 1 hp at 120 VAC, 2 hp at 277 VAC Power, 50/60 Hz Frequency, 24 VDC Coil, 2NO 2 Form A Contact Form, Plug-In/Socket Mounting, Blade Terminal, LED Display, IP40 Enclosure, -4 to 131 deg F, 1.97 in H x 1.3 in W x 2.09 in D Dimensions
725BXXBM4L-24D Application
Suitable for high-capacity switching applications such as EV charging, CNC machines and HVAC compressors725BXXBM4L-24D Item Features
- Wide range of EMR Relays to meet general industrial applications
- Dedicated power relays (725) for high power applications like Electrical Vehicle charging
- Hermetically sealed relays (782H) for hazardous locations
- Pre-assembled relays to simplify selection and installation, just one reference with complete solution of the relay, socket, and accessories
- Push-in sockets to save up to 64% wiring time and ease maintenance
- Bus jumper to ease the wiring when multiple EMR Relays are used
- One step lockable test button
- Mechanical indicator for contact status
725BXXBM4L-24D Standards
UL 60947-4-1A|CSA|CE|IEC 60947-1SKU #2452121Part Number #725BXXBM4L-24DUNSPSC39122324UPC03606480278983
