Part Number # 2003-6644
SKU # 2452138
Image provided may only be a representation of
final product and may include optional equipment
2003-6644
Wago 2003-6644
Part Number # 2003-6644
SKU # 2452138
$10.58 / Each
Typical price:$11.46 / Each
Wago 2003-6644 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2003-6644 |
| SKU #: | 2452138 |
| Amperage Rating: | 20 A |
| Dimensions: | 4.331 in H x 0.205 in W x 1.78 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | Operating Tool |
| Wire Size: | 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Connection type: | Push-In |
| Material: | Copper |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821654292 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.58 / Each
Typical price:$11.46 / Each
Quantity:
Wago 2003-6644
Brand: Wago
Part Number: 2003-6644

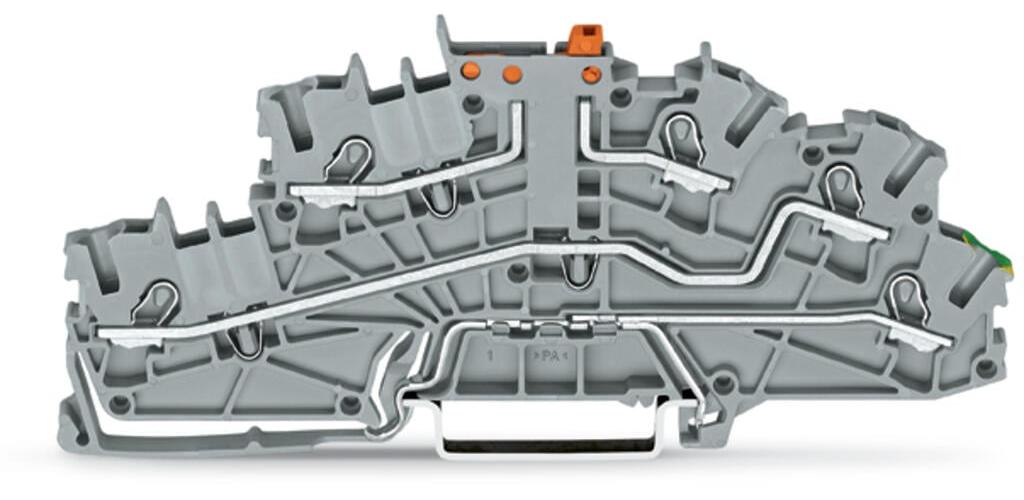

Additional Description: WAGO-2003-6644 MULTILEVEL INSTALLATION TERMINAL BLOCK; 4 MM WITH PIVOTING KNIFE DISCONNECT; LT/L/PE; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 20036644
Catalog Description: Multilevel installation terminal block; with operating slots; 2.5 mm²; with pivoting knife disconnect; LTi/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray
2003-6644 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2452138Part Number #2003-6644UNSPSC39121421UPC04050821654292
