Part Number # TM221CE16T
SKU # 2452236
Image Disclaimers Message
Brand: Schneider Electric
TM221CE16T

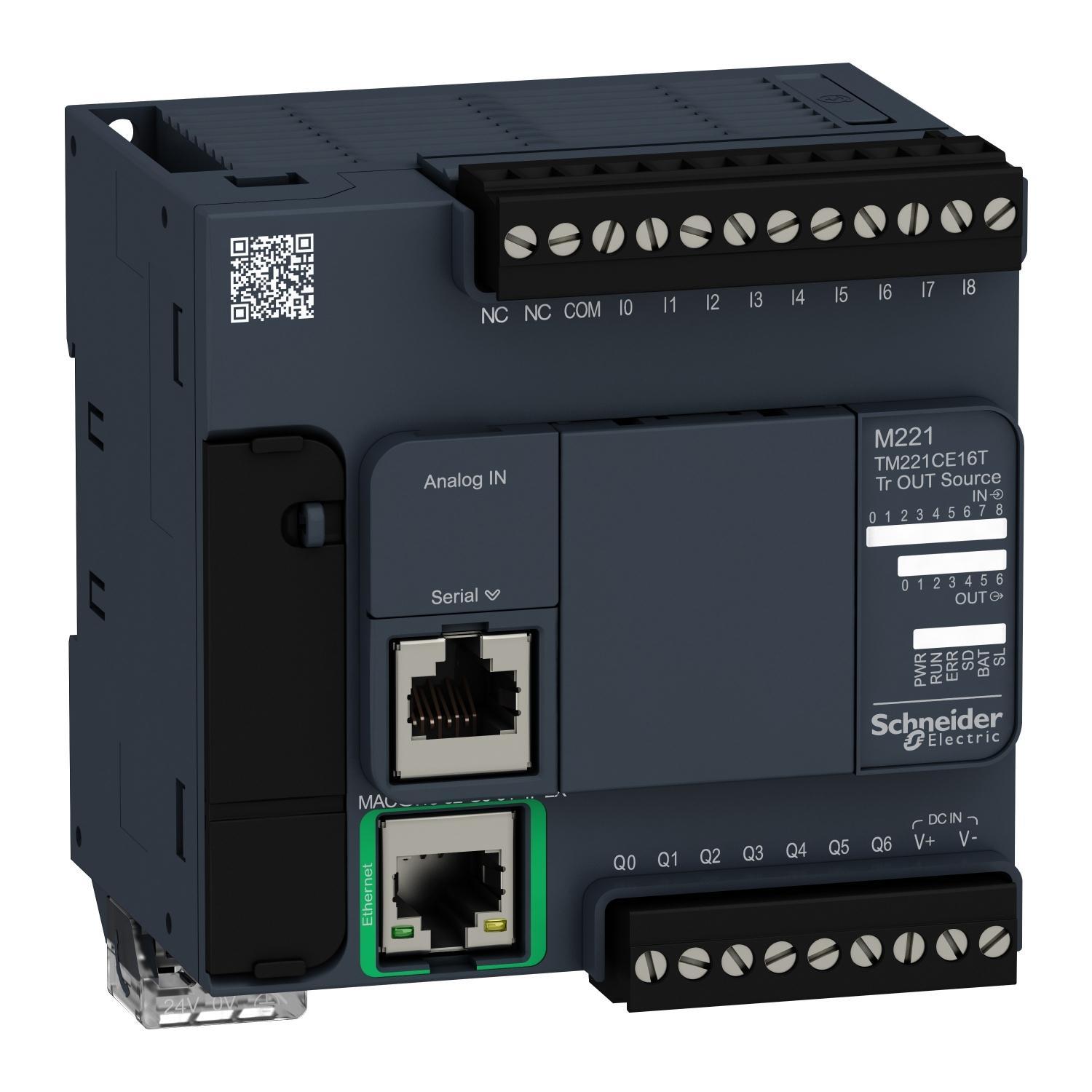

Schneider Electric TM221CE16T
Part Number # TM221CE16T
SKU # 2452236
$333.77 / Each
Schneider Electric TM221CE16T Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | TM221CE16T |
| SKU #: | 2452236 |
| Amperage Rating: | 7 mA |
| Dimensions: | 70 mm L x 95 mm W x 90 mm H |
| Programming: | Mini B USB 2.0 Connector |
| Series: | M221 |
| Signal Range: | 24 V DC Transistor, 24 VDC Transistor |
| Temperature Rating (Degrees F): | -10 to 55/-10 to 35 deg C |
| Transfer Rate: | 115.2 kbps |
| Type: | Compact |
| Communication: | DHCP Client/Modbus TCP Server/Modbus TCP Client/Modbus TCP Slave Device |
| Country of origin: | US |
| Memory: | 256 kB |
| Mounting type: | Plate/Panel |
| Number of inputs: | 9 |
| Number of outputs: | 7 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151705 |
| UPC: | 03606480648762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$333.77 / Each
Quantity:
- Schneider Electric Modicon Square D Logic Controller, Compact, Series: M221, 24 V DC, 7 mA, <=4.6/11 W Power, 9 Inputs, 7 Outputs, 24 V DC Transistor Signal, DHCP Client/Modbus TCP Server/Modbus TCP Client/Modbus TCP Slave Device Communication, 3 Ports, Memory: 256 kB, Mini B USB 2.0 Connector Programming, 115.2 kBps Transfer Rate, Plate/Panel Mounting, -10 to 55/-10 to 35 deg C, 70 mm L x 95 mm W x 90 mm H Dimensions
TM221CE16T Application
Modicon M221 ApplicationsTM221CE16T Item Features
- Mini B USB 2.0 connector for a programming terminal
- Terminal block, 3-terminals for connecting the 24 VDC power supply
- Connector, four-terminals for analog inputs
- Removable screw terminal block for inputs
- Removable screw terminal block for outputs
- -10 to 55 deg C for horizontal installation, -10 to 35 deg C for vertical installation
- 24 VDC transistor signal range
- <=11 W at 24 V with max number of I/O expansion module, <=4.6 W at 24 V without I/O expansion module power consumption
TM221CE16T Standards
ABS Certified|CE Certified|CSA Certified|cULus Listed|DNV-GL|EAC Certified|ECCN: EAR99|EN/IEC 60664-1|EN/IEC 61010-2-201|EN/IEC 61131-2|IACS E10|LR Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RCM Certified|REACH Compliant|RoHS Compliant|UL ListedSKU #2452236Part Number #TM221CE16TUNSPSC32151705UPC03606480648762
