Part Number # XB4BG21GEX
SKU # 2452245
Schneider Electric XB4BG21GEX Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB4BG21GEX |
| SKU #: | 2452245 |
| Contact Configuration: | 1 NO |
| Type: | Complete Selector Switch |
| UNSPSC: | 39122217 |
| UPC: | 03606489485757 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric, XB4BG21GEX, Complete Selector Switch, Series: XB4 Series, 22 mm Size, 1NO Contact Configuration, Slow Break Contact, 2 Positions, Screw clamp Terminal, IP66 Enclosure, Chromium plated metal
XB4BG21GEX Item Features
- European Directive 2014/34/UE, Zone 21 / 22
- IECex Zone 1 / 2 / 21 / 22
- UL 60079 Zone 1/ 2 / 21 / 22
- NEC 500 Class 1 Div 2, Class 2 Div 2 & Class 3
- Zamak fixing collar material
- Zone 21 - 22 dust zone
- Zone 1 - 2 gas zone
- 455 key number
- Fixing hole 0.89 in (22.5 mm) +/- 0.2 mm EN/IEC 60947-1 device mounting
- >= 30 x 40 mm support panel) 04 to 0.24 in (1 to 6 mm) fixing center
- 2.28 in (58 mm) embedding depth
- Left-hand key withdrawal position
- Standard contacts contacts usage
- Without positive opening
- 5000000 cycles mechanical durability
- 415 V ui rated insulation voltage
- TH protective treatment
XB4BG21GEX Standards
INERIS 04ATEX9004U|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|EN/IEC 60079-0:2009EN/IEC 60079-1:2009EN/IEC 60079-7:2009EN/IEC 60079-31:2009UL 60079-0UL 60079-1UL 60079-31ANSI/ISA 12.121CSA C22.2 No 213SKU #2452245Part Number #XB4BG21GEXUNSPSC39122217UPC03606489485757

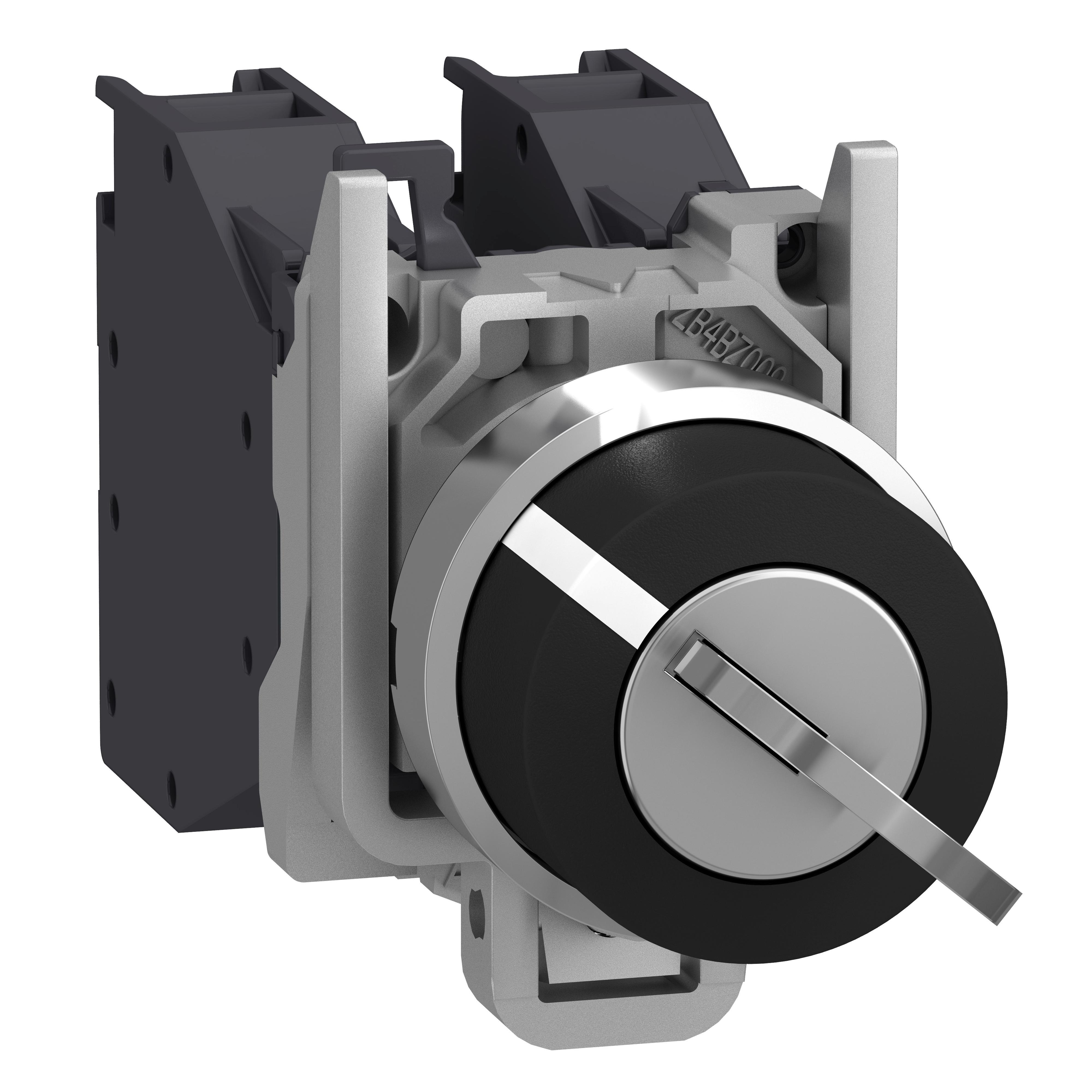

Image provided may only be a representation of final product and may include optional equipment
