Part Number # 831-1102
SKU # 2452541
Image Disclaimers Message
831-1102

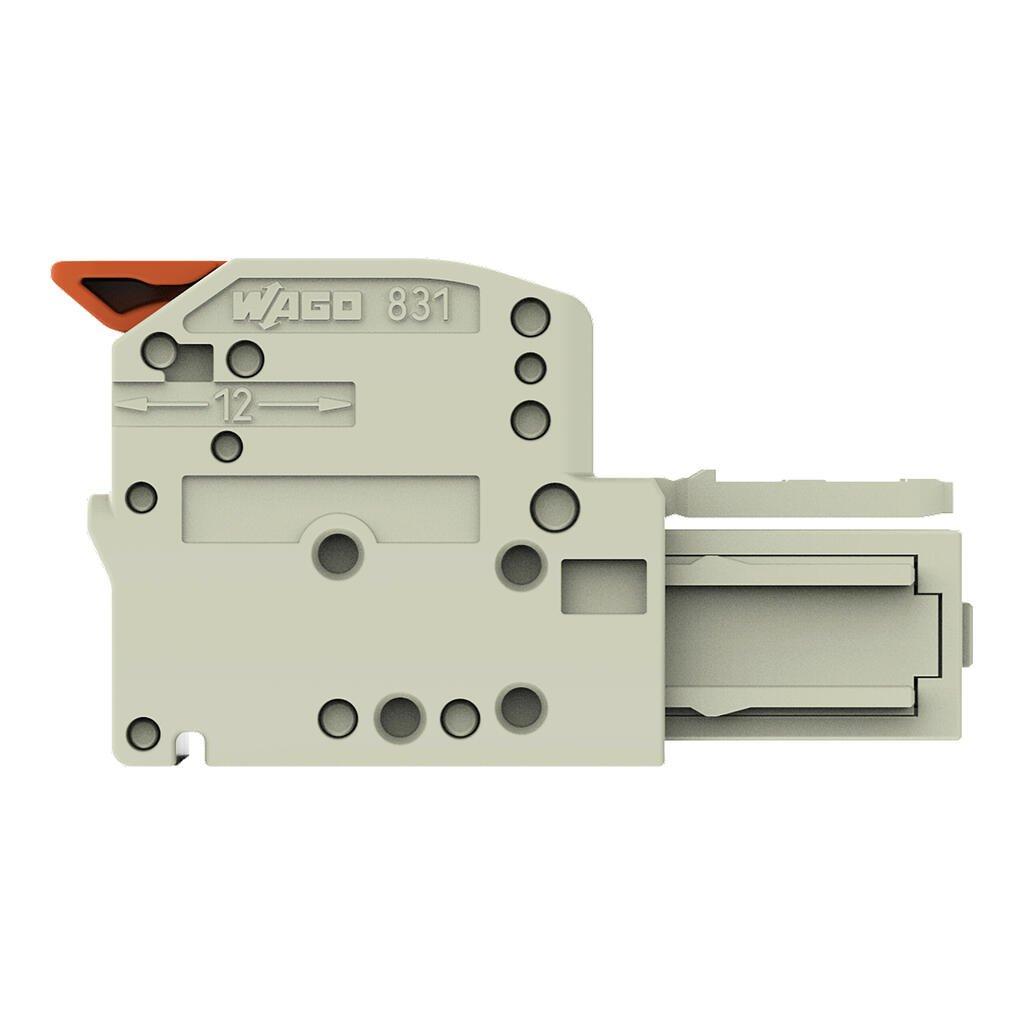

Wago 831-1102
Part Number # 831-1102
SKU # 2452541
$5.26 / Each
Typical price:$5.70 / Each
Wago 831-1102 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-1102 |
| SKU #: | 2452541 |
| Amperage Rating: | 41 A |
| Dimensions: | 0.984 in H x 0.675 in W x 1.799 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Lever |
| Wire Size: | 20 to 8 AWG |
| Color: | Light gray |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143980098 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.26 / Each
Typical price:$5.70 / Each
Quantity:
- WAGO, 831-1102, 1-Conductor Female Connector, Lever, 1 kV, 41 A, 2 Pole, 20 to 8 AWG Wire, 0.51 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyamide, Light Gray, 0.984 in H x 0.675 in W x 1.799 in D Dimensions
831-1102 Item Features
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Push-in termination of solid and ferruled conductors
- Test slot 0 deg and 90 deg to conductor entry
- 100 Percent protected against mismating
- Coding option available
831-1102 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2452541Part Number #831-1102UNSPSC39121421UPC04055143980098
