Part Number # STP120P05M
SKU # 2452794
STP120P05M

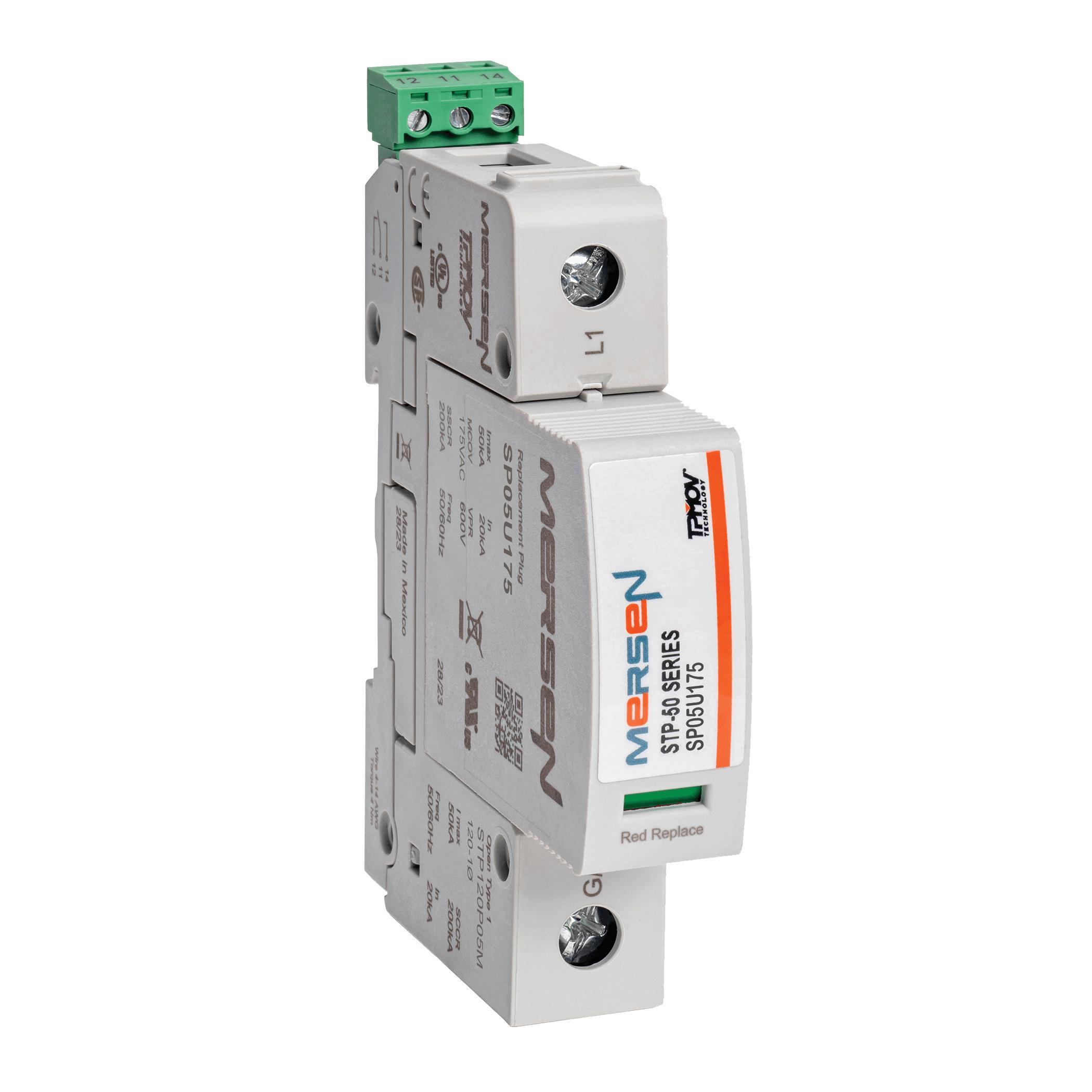

Mersen STP120P05M
Part Number # STP120P05M
SKU # 2452794
$114.23 / Each
Typical price:$421.12 / Each
Mersen STP120P05M Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STP120P05M |
| SKU #: | 2452794 |
| Class: | Type 1 SPD |
| Dimensions: | 71.4 mm H x 17.5 mm W x 106.4 mm L |
| Environmental Conditions: | -40 to 85 deg C Operating Temperature |
| Frequency Rating: | 50/60 Hz |
| Modes of Protection: | L-N |
| Number of Poles: | 1 |
| Number of Wires: | 2 |
| Phase: | 1 |
| Series: | STP |
| Terminal Type: | Box |
| Material: | Polyethylene Terephthalate |
| Mounting type: | DIN Rail |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121610 |
| UPC: | 00782001510091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$114.23 / Each
Typical price:$421.12 / Each
Quantity:
Mersen STP120P05M
Brand: Mersen
Part Number: STP120P05M
Additional Description: MERS-STP120P05M STP-50 50kA,120V, 1P,FC
STP120P05M Application
Industrial Control Panels Water treatment Smart grid and LV Metering Traffic ITS applications, Intended for use on a wide range of low voltage applications inside appropriate enclosuresSTP120P05M Standards
ANSI/UL 1449 File No. E210793|File E210793|CSA C221331 Certified Type 4-1|File 80032802 ANSI/IEEE C62.41.1, C62.41.2, C62.45|RoHS CompliantSKU #2452794Part Number #STP120P05MUNSPSC39121610UPC00782001510091
Image provided may only be a representation of final product and may include optional equipment
