Part Number # STP480D05M
SKU # 2452796
Brand: Mersen
STP480D05M
Mersen STP480D05M
Part Number # STP480D05M
SKU # 2452796
$280.11 / Each
Typical price:$1032.59 / Each
Mersen STP480D05M Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STP480D05M |
| SKU #: | 2452796 |
| Class: | Type 1 SPD |
| Dimensions: | 71.4 mm H x 52.6 mm W x 106.4 mm L |
| Environmental Conditions: | -40 to 85 deg C Operating Temperature |
| Frequency Rating: | 50/60 Hz |
| Modes of Protection: | L-L |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Phase: | 3 |
| Series: | STP |
| Terminal Type: | Box |
| Material: | Polyethylene Terephthalate |
| Mounting type: | DIN Rail |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121610 |
| UPC: | 00782001510282 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$280.11 / Each
Typical price:$1032.59 / Each
Quantity:
Mersen STP480D05M
Brand: Mersen
Part Number: STP480D05M
Additional Description: MERS-STP480D05M STP T1 50kA 480V DELTA ALM
STP480D05M Application
Industrial Control Panels Water treatment Smart grid and LV Metering Traffic ITS applications, Intended for use on a wide range of low voltage applications inside appropriate enclosuresSTP480D05M Standards
ANSI/UL 1449 File No. E210793|File E210793|CSA C221331 Certified Type 4-1|File 80032802 ANSI/IEEE C62.41.1, C62.41.2, C62.45|RoHS CompliantSKU #2452796Part Number #STP480D05MUNSPSC39121610UPC00782001510282

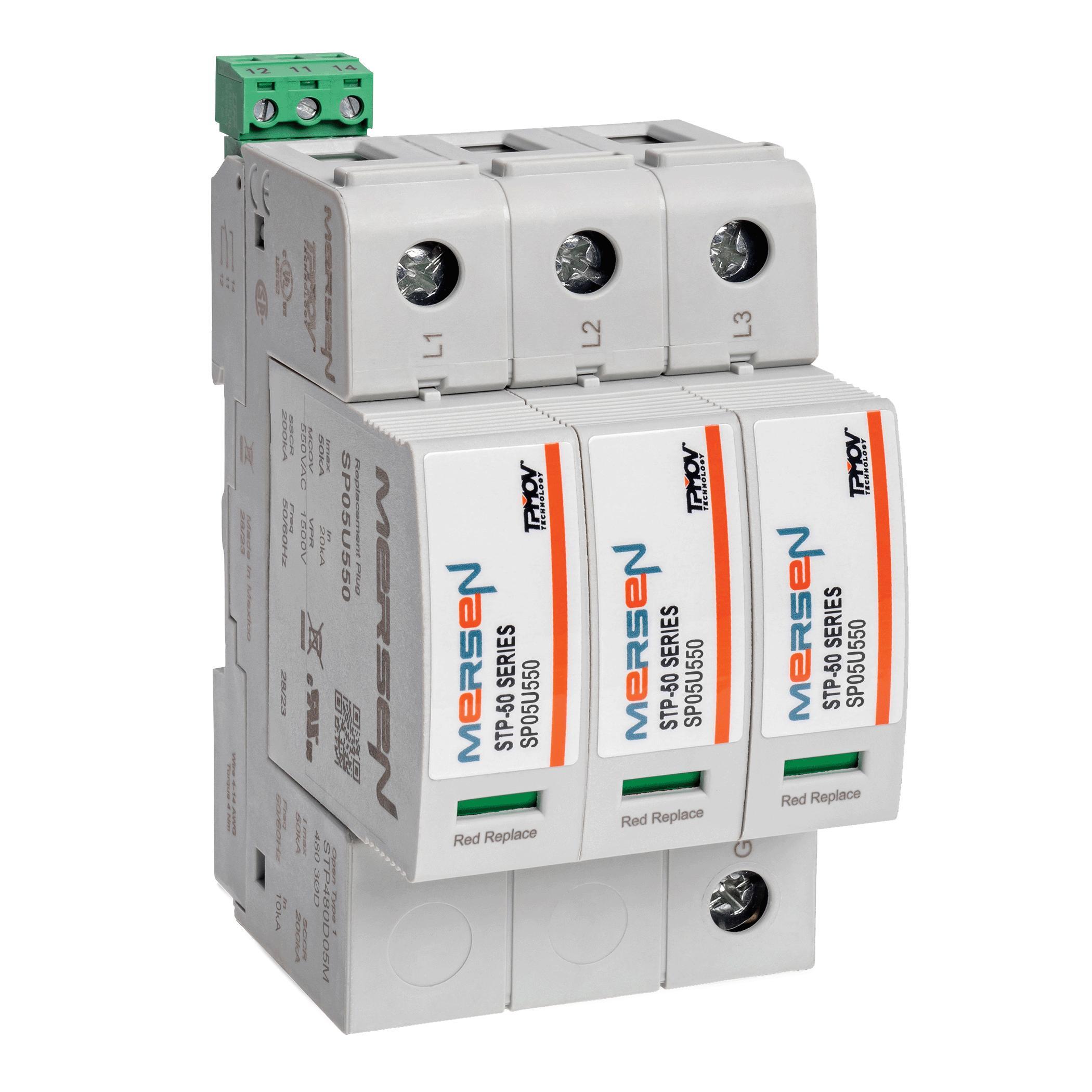

Image provided may only be a representation of final product and may include optional equipment
