Part Number # STP480YN05M
SKU # 2452797
STP480YN05M
Mersen STP480YN05M
Part Number # STP480YN05M
SKU # 2452797
$357.56 / Each
Typical price:$1318.11 / Each
Mersen STP480YN05M Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | STP480YN05M |
| SKU #: | 2452797 |
| Class: | Type 1 SPD |
| Dimensions: | 71.4 mm H x 70.1 mm W x 106.4 mm L |
| Environmental Conditions: | -40 to 85 deg C Operating Temperature |
| Modes of Protection: | L-N |
| Series: | STP |
| Material: | Polyethylene Terephthalate |
| UNSPSC: | 39121610 |
| UPC: | 00782001510367 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$357.56 / Each
Typical price:$1318.11 / Each
Quantity:
- Mersen, STP480YN05M, Surge Protection, Series: STP, 50/60 Hz Frequency, 4 Pole, 5 Wires, 20 kA Nominal Discharge, Modes of Protection: L-N, 3 ph, Class: Type 1 SPD, Environmental Conditions: -40 to 85 deg C Operating Temperature, DIN Rail Mounting, Box Terminal, Polyethylene Terephthalate, 71.4 mm H x 70.1 mm W x 106.4 mm L Dimensions
STP480YN05M Application
Industrial Control Panels Water treatment Smart grid and LV Metering Traffic ITS applications, Intended for use on a wide range of low voltage applications inside appropriate enclosuresSTP480YN05M Standards
ANSI/UL 1449 File No. E210793|File E210793|CSA C221331 Certified Type 4-1|File 80032802 ANSI/IEEE C62.41.1, C62.41.2, C62.45|RoHS CompliantSKU #2452797Part Number #STP480YN05MUNSPSC39121610UPC00782001510367

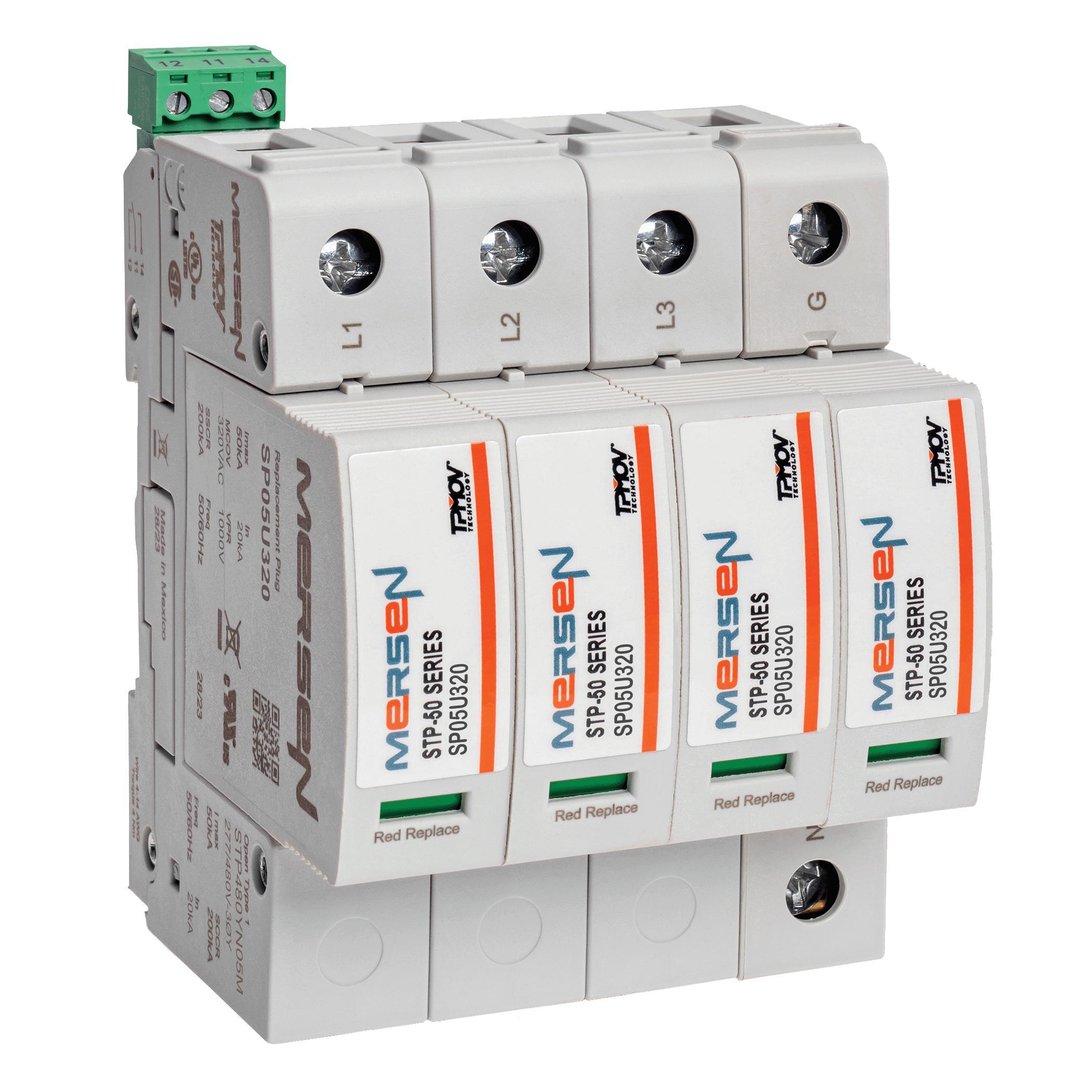

Image provided may only be a representation of final product and may include optional equipment
