Part Number # SWGM0080D-HF05300
SKU # 2452848
Image Disclaimers Message
SWGM0080D-HF05300

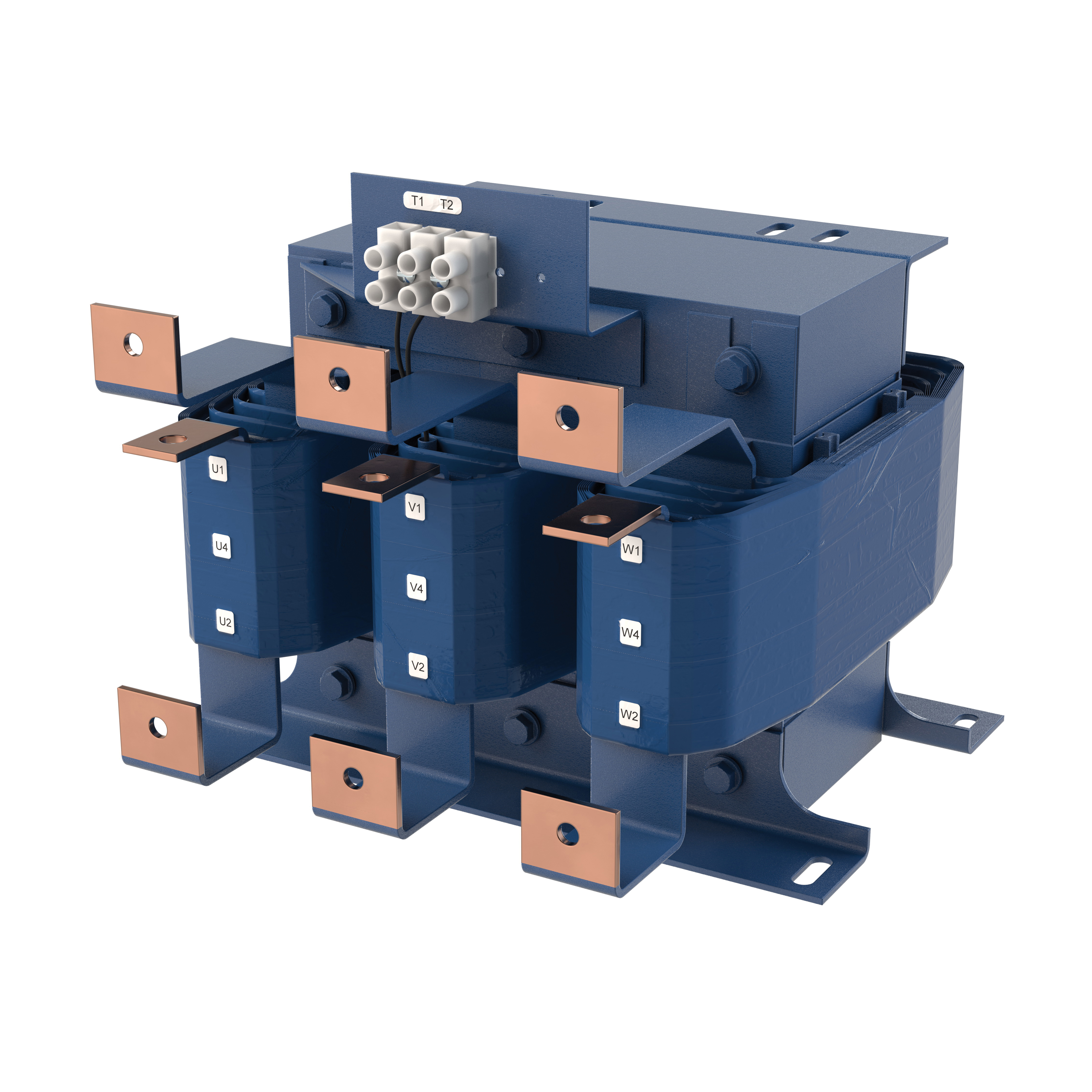

MTE CORPORATION SWGM0080D-HF05300
Part Number # SWGM0080D-HF05300
SKU # 2452848
$4170.00 / Each
MTE CORPORATION SWGM0080D-HF05300 Key Features
| Brand: | MTE CORPORATION |
|---|---|
| Part Number # : | SWGM0080D-HF05300 |
| SKU #: | 2452848 |
| Amperage Rating: | 80 A |
| Enclosure Type: | Open |
| Horsepower: | 60 hp |
| Phase: | 3 |
| Series: | High Frequency SineWave Guardian |
| Type: | Modular |
| Country of origin: | MX |
| Depth: | 9.1 in |
| Height: | 10-1/2 in |
| Mounting type: | Panel |
| Width: | 12 in |
| Manufacturer Name: | MTE Corporation |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4170.00 / Each
Quantity:
- MTE Sine Wave Filter, Modular, Series: High Frequency SineWave Guardian, 380 to 480 V AC, 80 A, 60 hp, 3 ph, 10-1/2 in Height, 12 in Width, 9.1 in Depth, Open Enclosure, Panel Mounting
SWGM0080D-HF05300 Application
Permanent Magnet Motors (PMM), High Frequency Motors, Applications with Multiple MotorsSWGM0080D-HF05300 Includes
(1) Reactor Assembly and (1) Capacitor PanelSWGM0080D-HF05300 Item Features
- Industry leading motor protection up to 300 Hz
- Can be used in applications with multiple motors
- Increases motor life
- Better than 5% total harmonic voltage distortion (THVD) at 2 kHz
- Only a 6% insertion loss
- Transforms the PWM output to near perfect sinewave up to 15000 ft
- Easy to integrate, install and service
- Operates in high ambient temperatures up to 60 deg C
- Reduces audible motor noise
- https://youtu.be/VaRA_bngkTs
SWGM0080D-HF05300 Standards
RoHS Compliant|REACH Compliant|cULus Listed|UL 508|CSA 22.2 #14|EN 50178|EN 61558-2-20|EN 60831-1 and 2|CE CertifiedSWGM0080D-HF05300 Warranty
3 YearsSKU #2452848Part Number #SWGM0080D-HF05300UNSPSC0UPC
