725AXXSC3ML12D

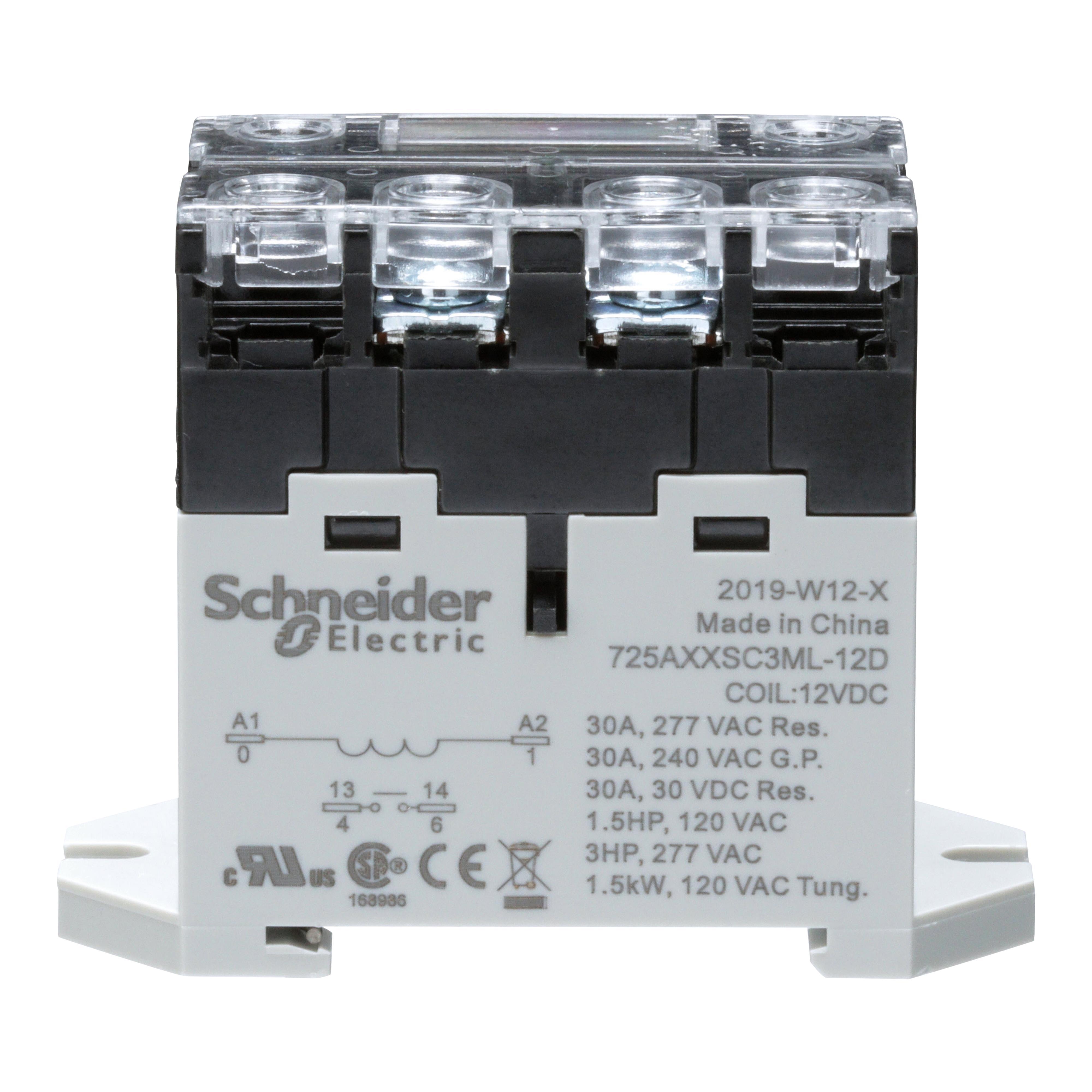

Schneider Electric 725AXXSC3ML12D
Part Number # 725AXXSC3ML12D
SKU # 2452862
$387.90 / 10Each
Typical price:$399.90 / Each
Schneider Electric 725AXXSC3ML12D Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 725AXXSC3ML12D |
| SKU #: | 2452862 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 12 V DC |
| Contact Form: | 1NO 1 Form A |
| Dimensions: | 2.67 in H x 1.37 in W x 2.12 in D |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Series: | 725 |
| Temperature Rating (Degrees F): | -4 to 131 deg F |
| Terminal Type: | Screw Terminal |
| Country of origin: | CN |
| Mounting type: | DIN/Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901162223 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$387.90 / 10Each
Typical price:$399.90 / Each
Quantity:
- Schneider Electric, 725AXXSC3ML-12D, Power Relay, Series: 725, 30 A, 1.5 kW Tungsten at 120 V, 3 hp at 277 VAC, 1.5 hp at 120 VAC Power, 50/60 Hz Frequency, 12 V DC Coil, 1NO 1 Form A Contact Form, DIN/Panel Mounting, Screw Terminal, LED Display, IP20 Enclosure, -4 to 131 deg F, 2.67 in H x 1.37 in W x 2.12 in D Dimensions
725AXXSC3ML12D Application
Suitable for high-capacity switching applications such as EV charging, CNC machines and HVAC compressors725AXXSC3ML12D Item Features
- The electromechanical relays help to reduce the size of enclosures and at the same time increase machine reliability
- This range offers several terminal types, wide choice of control voltage, and flexible add-on accessories
- https://youtu.be/fCR7bGjR7PU?si=DVJOMqa4fwe0zhR8
725AXXSC3ML12D Standards
IP20 Rated|UL 60947-4-1A|CSA|CE|IEC 60947-1SKU #2452862Part Number #725AXXSC3ML12DUNSPSC39122324UPC00785901162223
Image provided may only be a representation of final product and may include optional equipment
